Signal Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect IATS connector.
  3. Measure resistance between terminal 5 of the sensor harness connector and chassis ground.

    Specification : Infinite

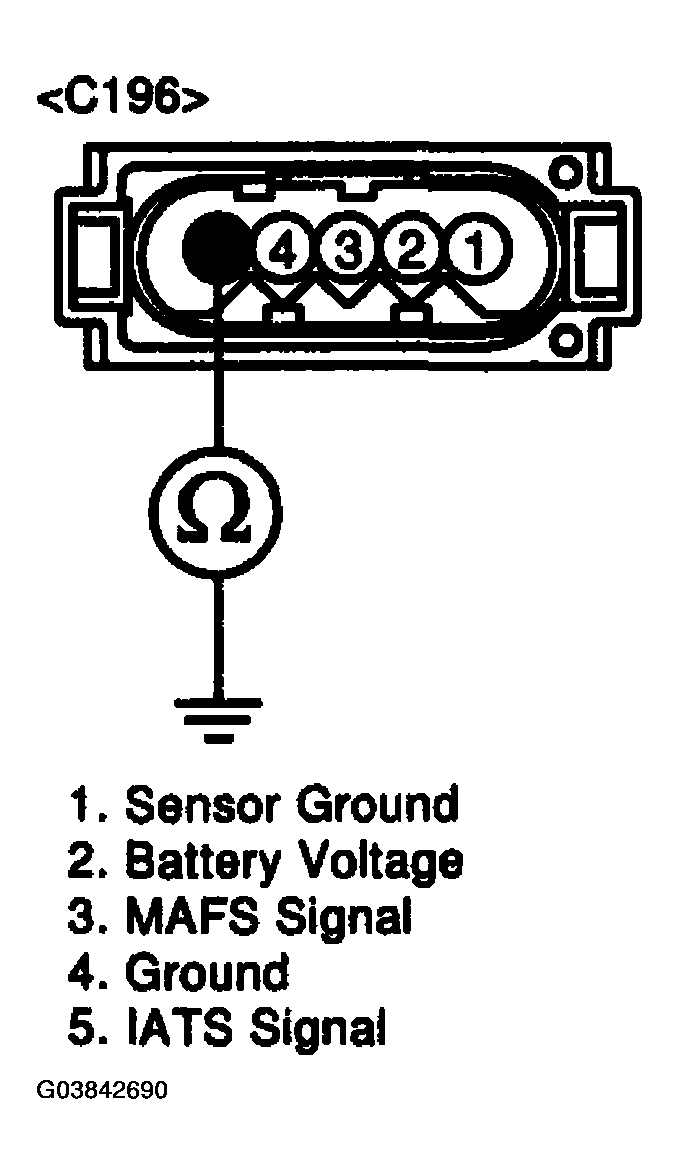

    Fig 1: Measuring Resistance Between Terminal 5 Of Sensor Harness Connector And Chassis Ground
    G03842690Courtesy of HYUNDAI MOTOR CO.
  4. Is resistance within the specification?

    YES

    NO
