Power Supply Circuit Inspection

Ignition "OFF".
Disconnect TPS connector.
Ignition "ON" & Engine "OFF".
Measure voltage between terminal 3 of the sensor harness connector and chassis ground.
Specification : Approx. 5V

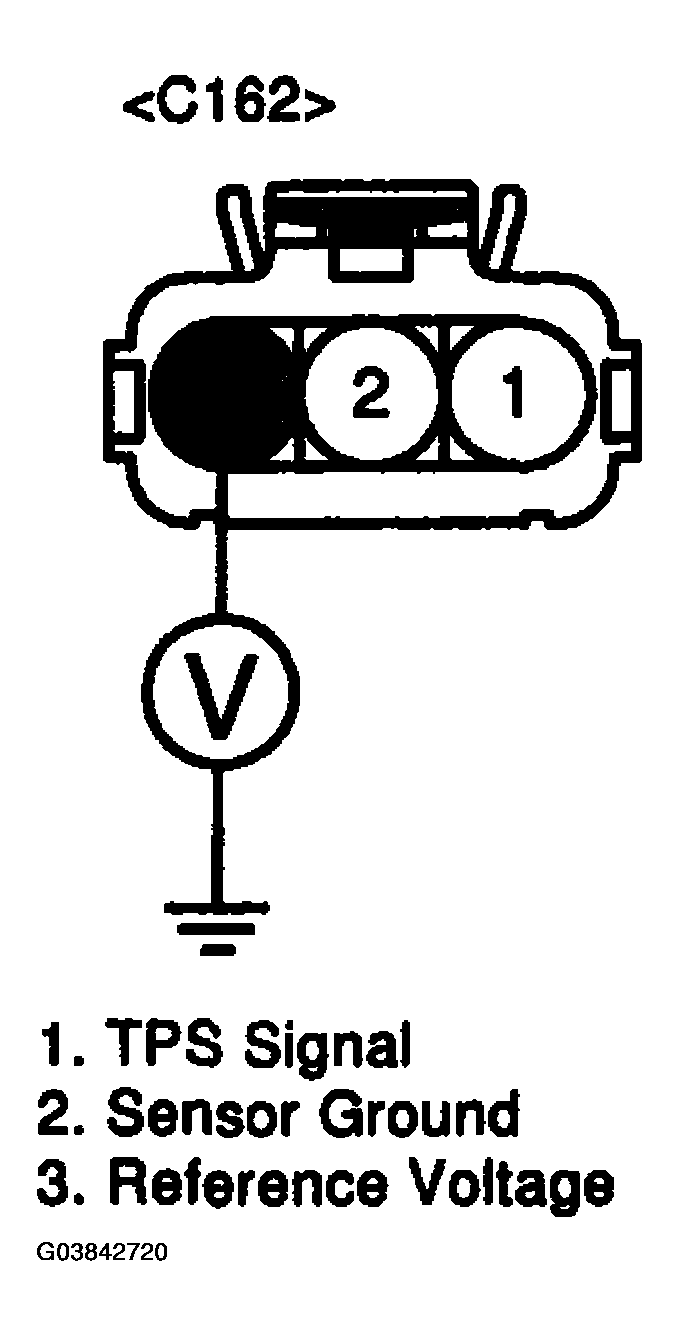

Fig 1: Measuring Voltage Between Terminal 3 Of Sensor Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is voltage within the specification?
YES
- Go to SIGNAL CIRCUIT INSPECTION procedure.
NO
- Possibility of open or short to ground in 5V reference circuit. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure.
