Signal Circuit Inspection
- Ignition "ON"

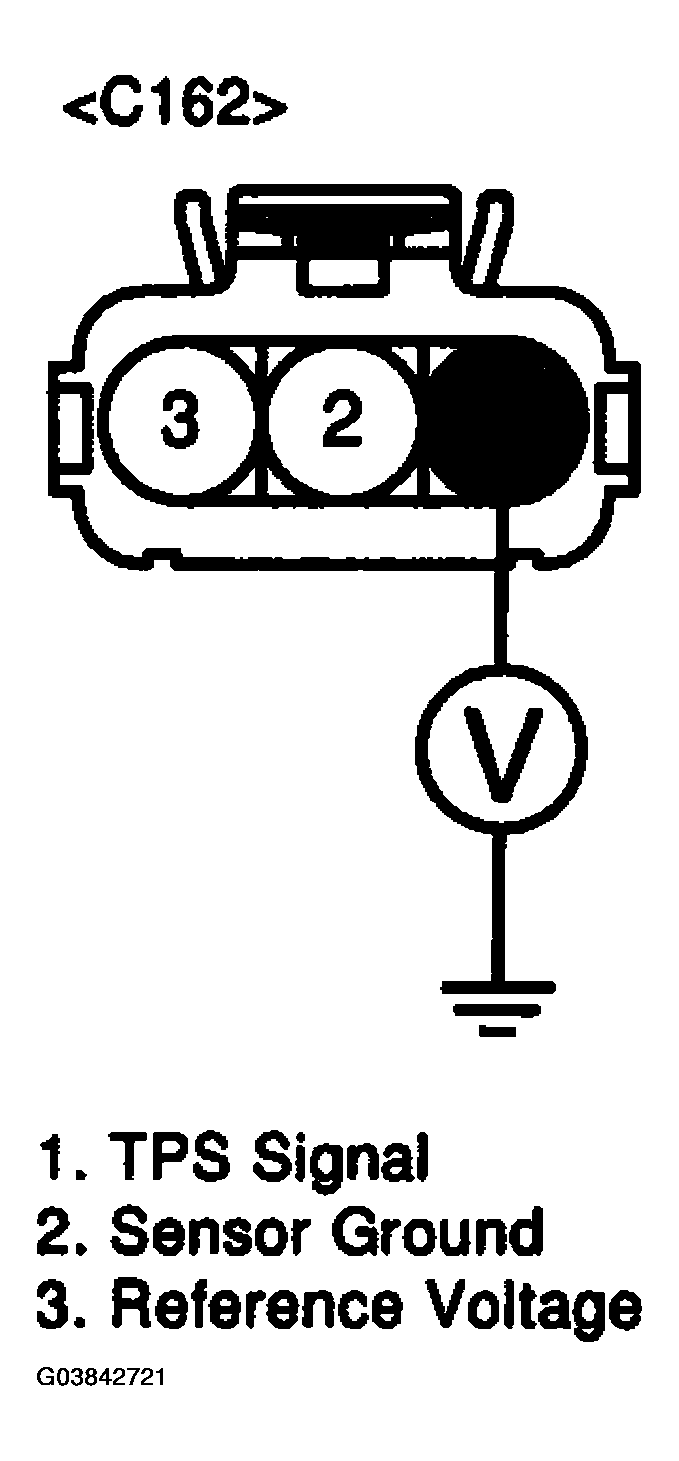

- Measure voltage between terminal 1 of the sensor harness connector and chassis ground.
Specification : Approx. 5V
- Is voltage within the specification?
YES
- Go to COMPONENT INSPECTION procedure.
NO
- Check the short to ground in signal circuit.
- Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure.
