DTC P0122: Throttle/Pedal Position Sensor/Switch "A" Circuit Low Input
>>
Signal Waveform
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform

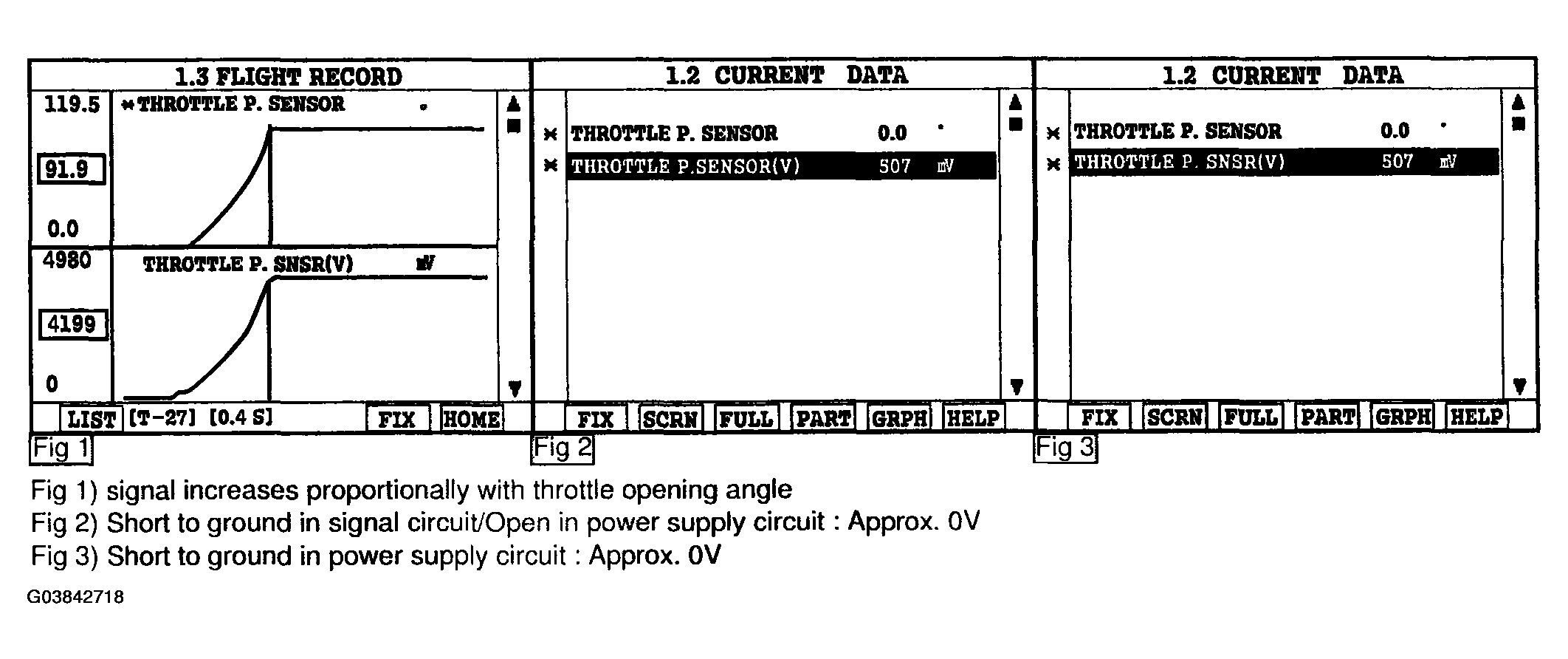

Fig 1: Throttle/Pedal Position Sensor/Switch Signal Waveform Graph
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
