Component Inspection
- Ignition "OFF"
- Disconnect OTS connector.

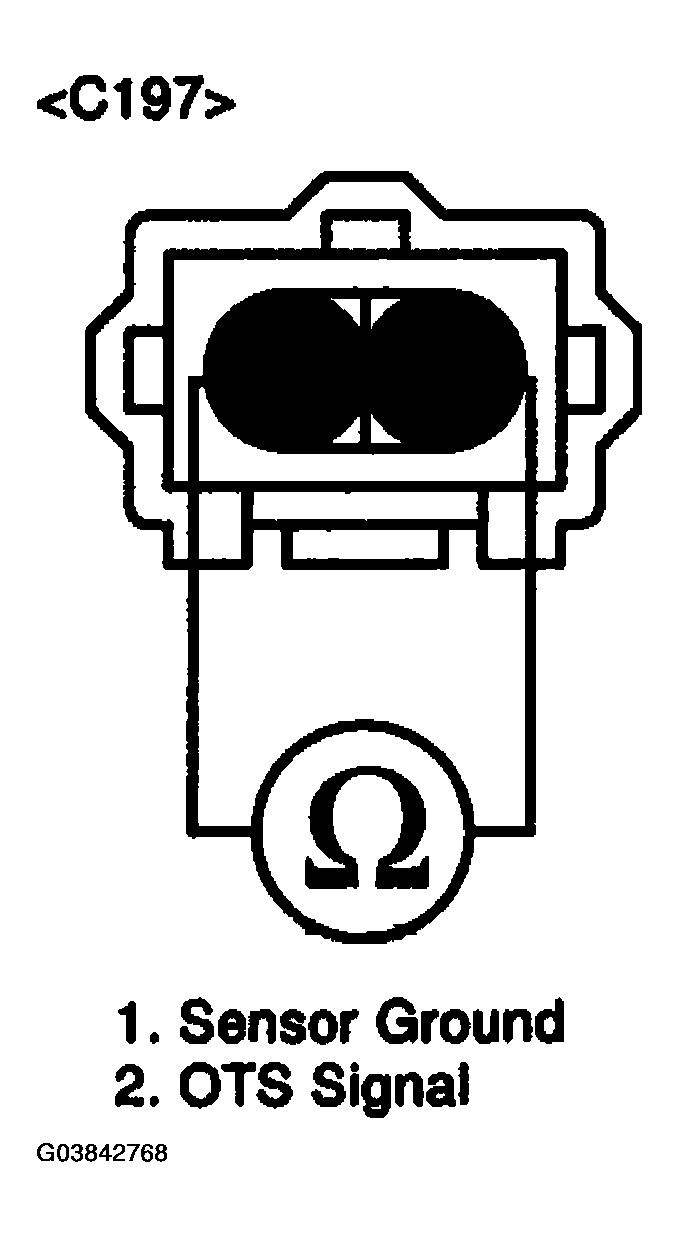

- Measure resistance between terminals 1 and 2 of OTS connector. (Component side)
SPECIFICATION
OTS RESISTANCE SPECIFICATIONSTemp.(°C) Temp.(°F) OTS Resistance(kΩ) 20 68 2.16 ~ 2.78 40 104 0.99 ~ 1.21 80 176 0.26 ~ 0.32 - Is sensor switching properly?
YES
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure.
NO
- Check OTS for contamination, deterioration, or damage. Substitute with a known-good OTS and check for proper operation. If the problem is corrected, replace OTS and then go to VERIFICATION OF VEHICLE REPAIR procedure.
