Monitor SCANTOOL Data

Ignition "ON" & Engine "OFF"
Disconnect OTS connector
Connect Scantool and monitor the "OIL TEMP. SENSOR(V)" parameter on the Scantool data list.
Specification : Approx. 5V

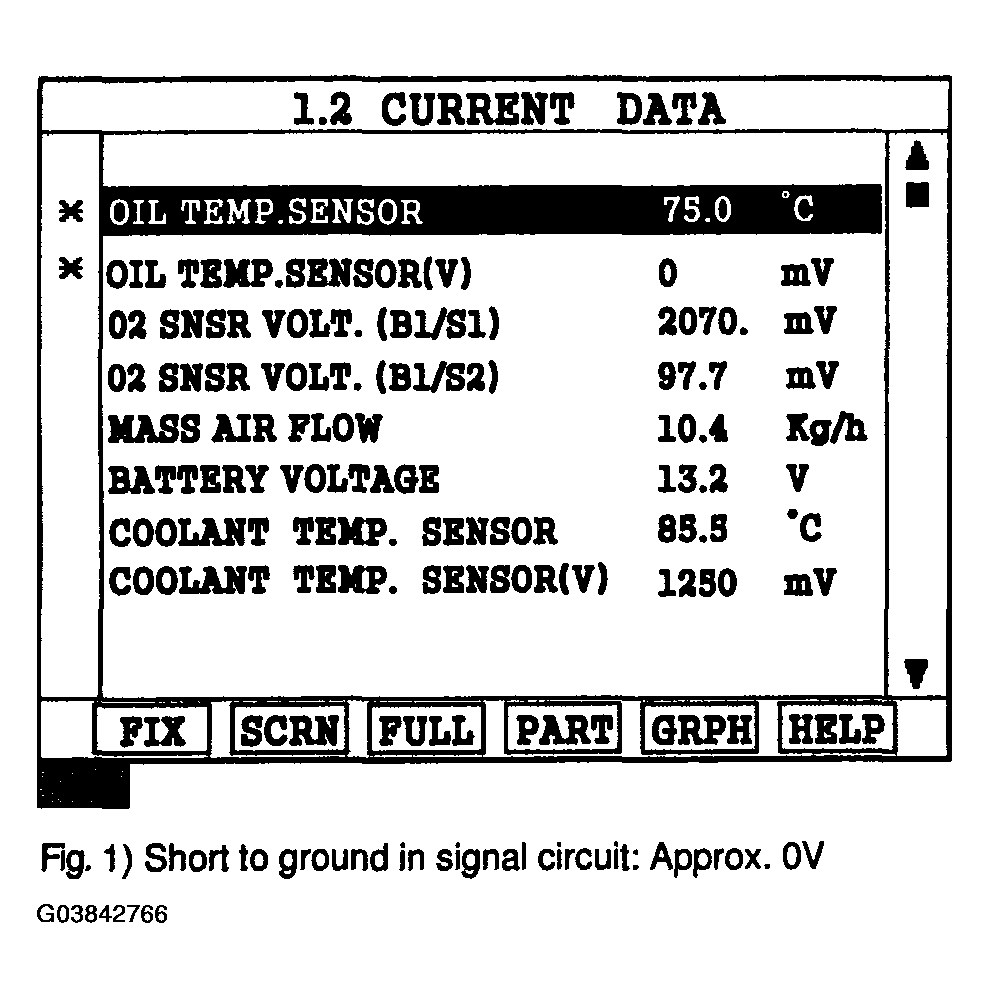

Fig 1: Monitor DTC Status Parameter
Courtesy of HYUNDAI MOTOR CO.
Is OTS parameter near the specified value?
YES
- Possibility of sensor malfunction. Go to COMPONENT INSPECTION procedure.
NO
- Possibility of signal circuit short to ground. Go to next step as below.
