Monitor SCANTOOL Data
- Ignition "ON" & Engine "OFF"
- Disconnect OTS connector

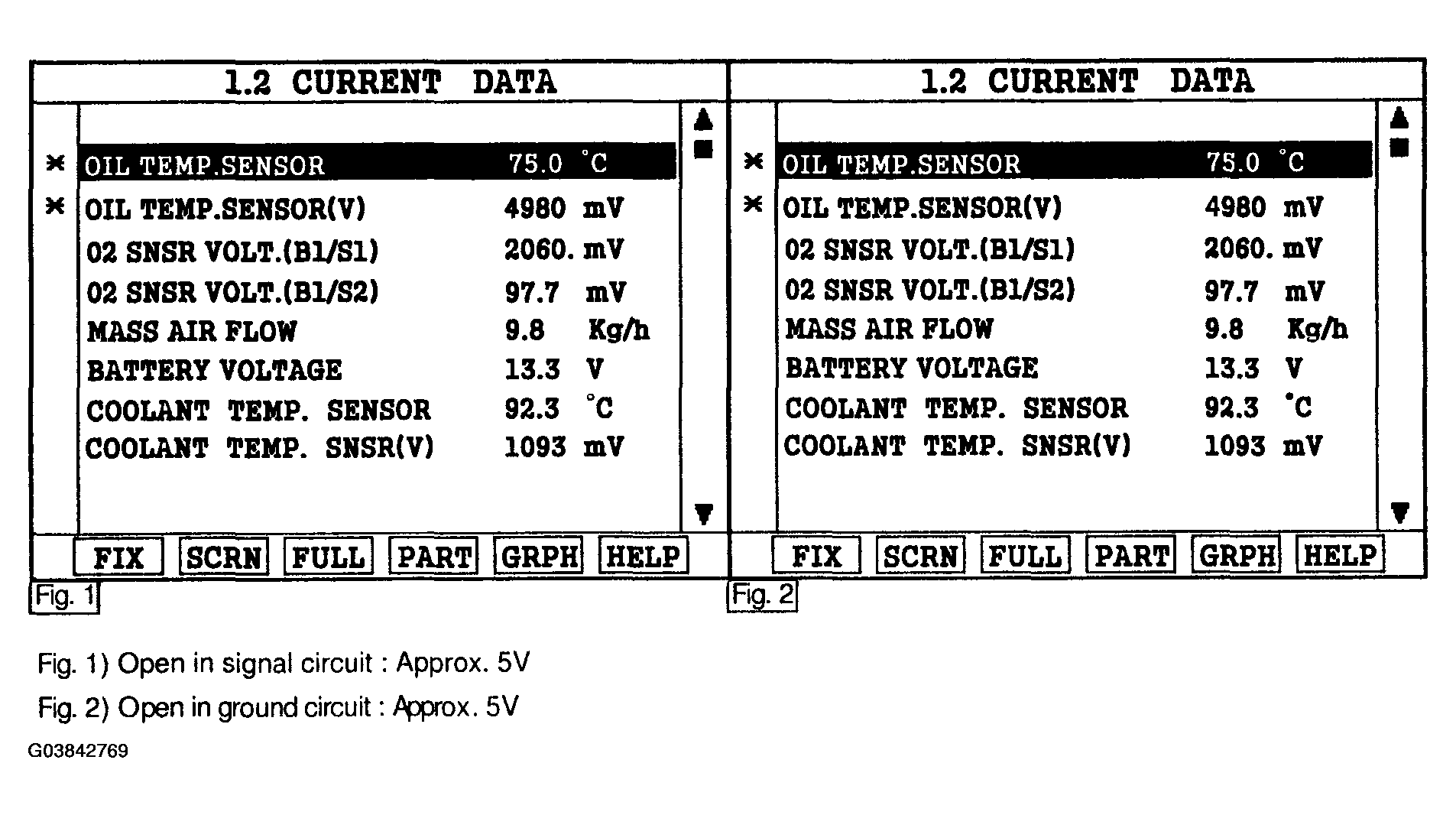

- Connect Scantool and monitor the "OIL TEMP. SENSOR(V)" parameter on the Scantool data list.
- Jumped the terminals 1 and 2 of the sensor harness connector together.
Specification : Approx. 0V
- Is OTS parameter near the specified value?
YES
- Possibility of sensor malfunction. Go to COMPONENT INSPECTION procedure.
NO
- Go to next step as below.
- Jumper the terminal 2 of the OTS harness connector to chassis ground.
- Observe the "OIL TEMP. SENSOR" parameter on the Scantool.
Specification : Approx. 0V
YES
- Possibility of open in OTS ground circuit. Go to GROUND CIRCUIT INSPECTION procedure.
NO
- Possibility of open or short to battery in OTS signal circuit. Go to SIGNAL CIRCUIT INSPECTION procedure.
