Control Circuit Inspection

Check for short to ground in control circuit.
1. Ignition "OFF".
2. Measure resistance between terminal 2 of the injector harness connector and chassis ground.
Specification: Infinite

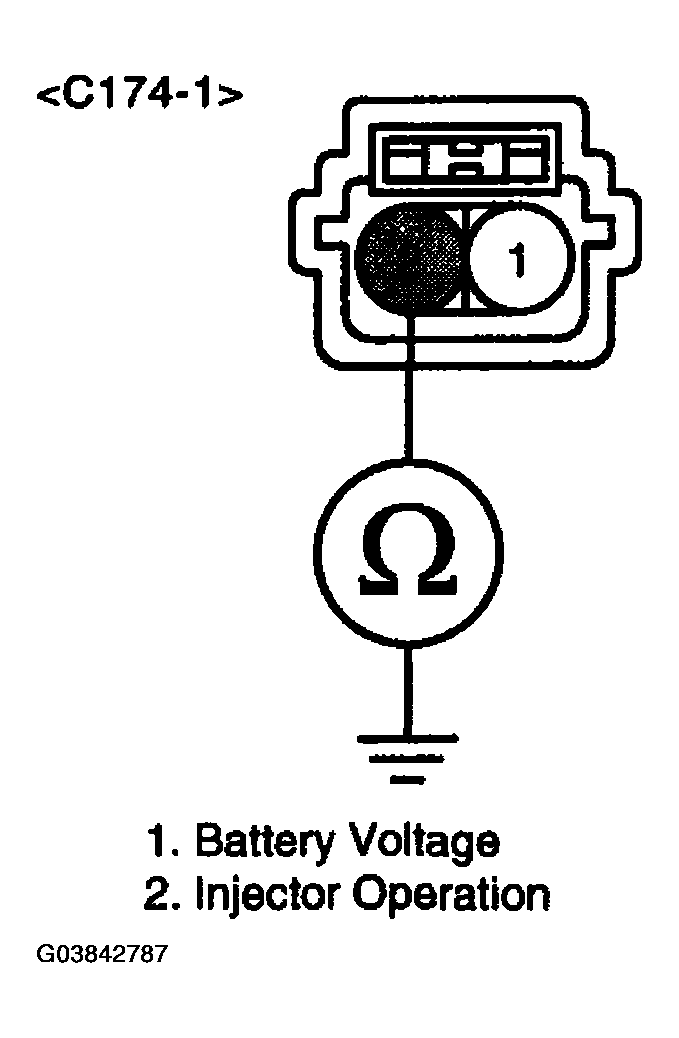

Fig 1: Measuring Resistance Between Terminal 2 Of Injector Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is resistance within the specification?
YES
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure.
NO
- Repair open or short to ground in control harness and go to VERIFICATION OF VEHICLE REPAIR procedure.
