Component Inspection

Ignition "OFF".
Disconnect CCV connector.
Measure resistance between terminals 1 and 2 of the CCV connector(Component side).
Specification : Approx. 23~26Ω at 20°C (68°F)

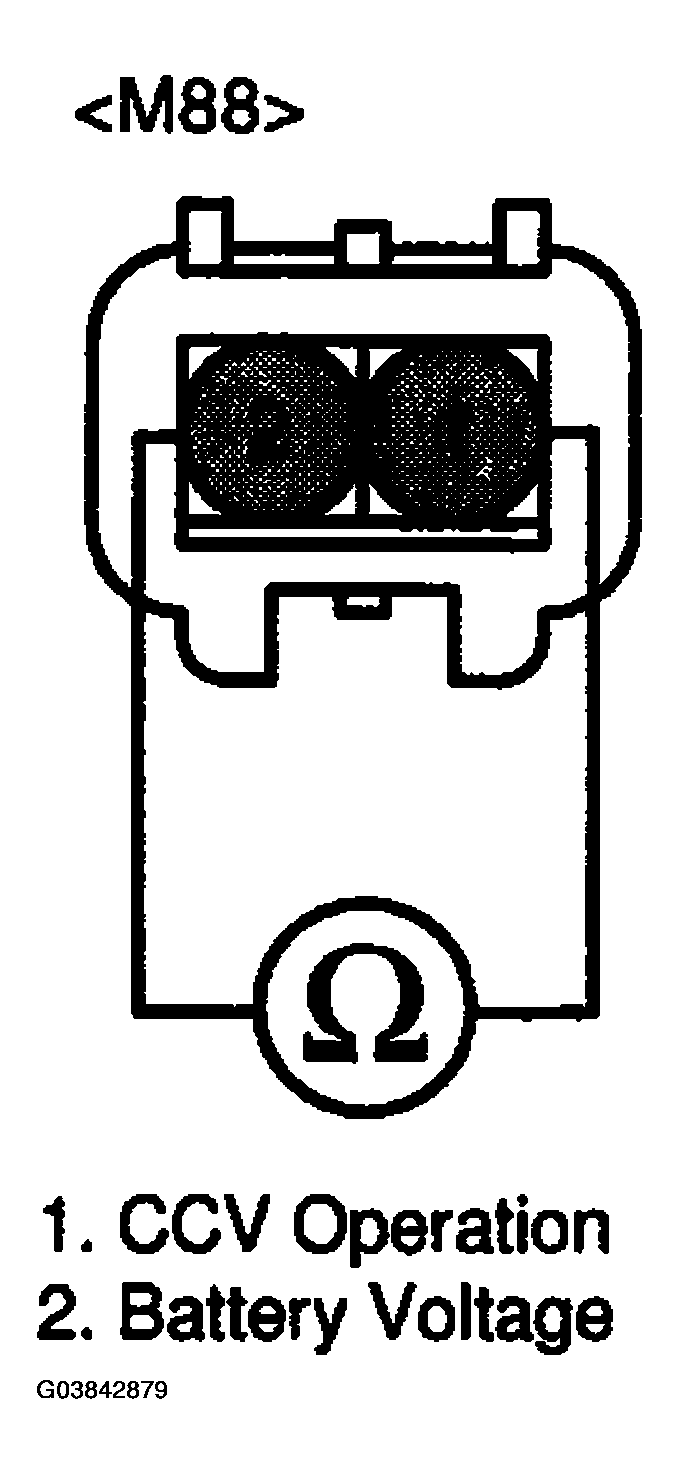

Fig 1: Measuring Resistance Between Terminals 1 And 2 Of CCV Connector (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

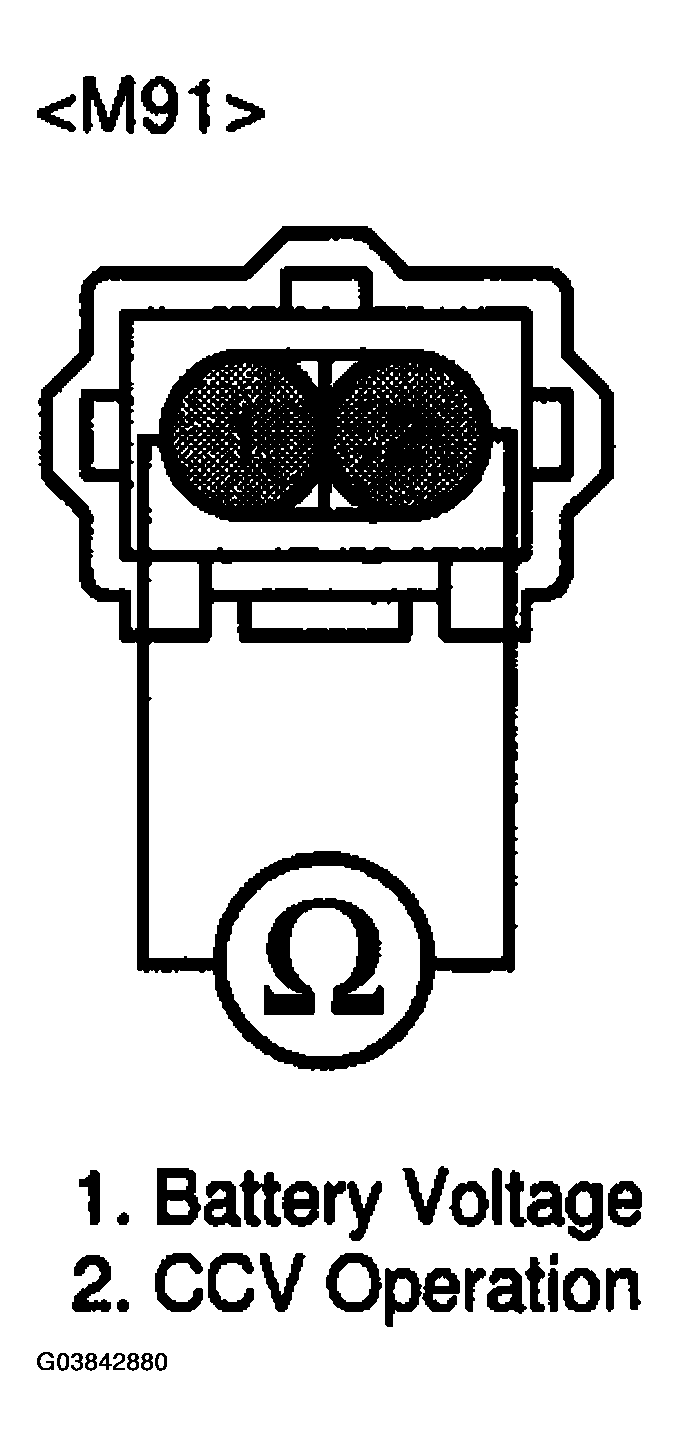

Fig 2: Measuring Resistance Between Terminals 1 And 2 Of CCV Connector (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Is resistance within the specification?
YES
- Go to next step as below.
NO
- Check CCV for contamination, deterioration, or damage. Substitute with a known-good CCV and check for proper operation. If the problem is corrected, replace CCV and then go to VERIFICATION OF VEHICLE REPAIR procedure.
