Ground Circuit Inspection

Ignition "OFF".
Disconnect PCM connector.
Measure resistance between terminals 2 of the FTPS harness connector and 34 of the PCM harness connector.
Specification : Approx. 0Ω

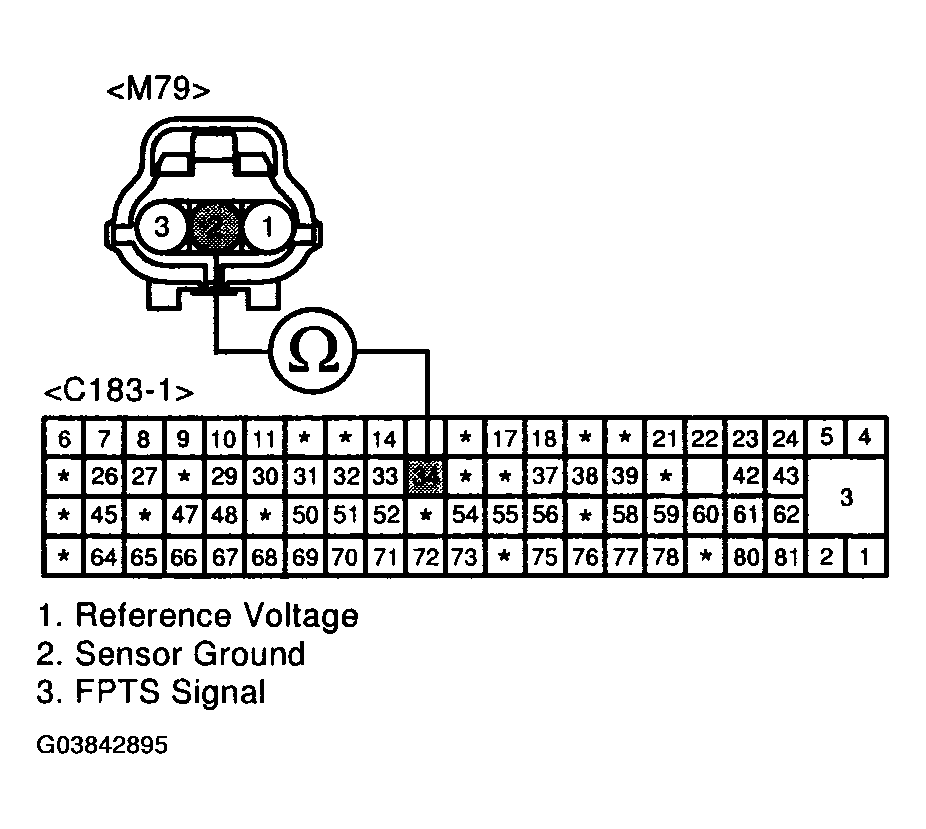

Fig 1: Measuring Resistance Between Terminals 2 Of FTPS Harness Connector And 34 Of PCM Harness Connector
Courtesy of HYUNDAI MOTOR CO.
Is resistance within the specification?
YES
- Go to SIGNAL CIRCUIT INSPECTION procedure
NO
- Check for a open/short circuit. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure
