Signal Circuit Inspection

Ignition "ON" & Engine "OFF".
Measure voltage between terminal 3 of the FTPS harness connector and chassis ground.
Specification : Approx. 0V

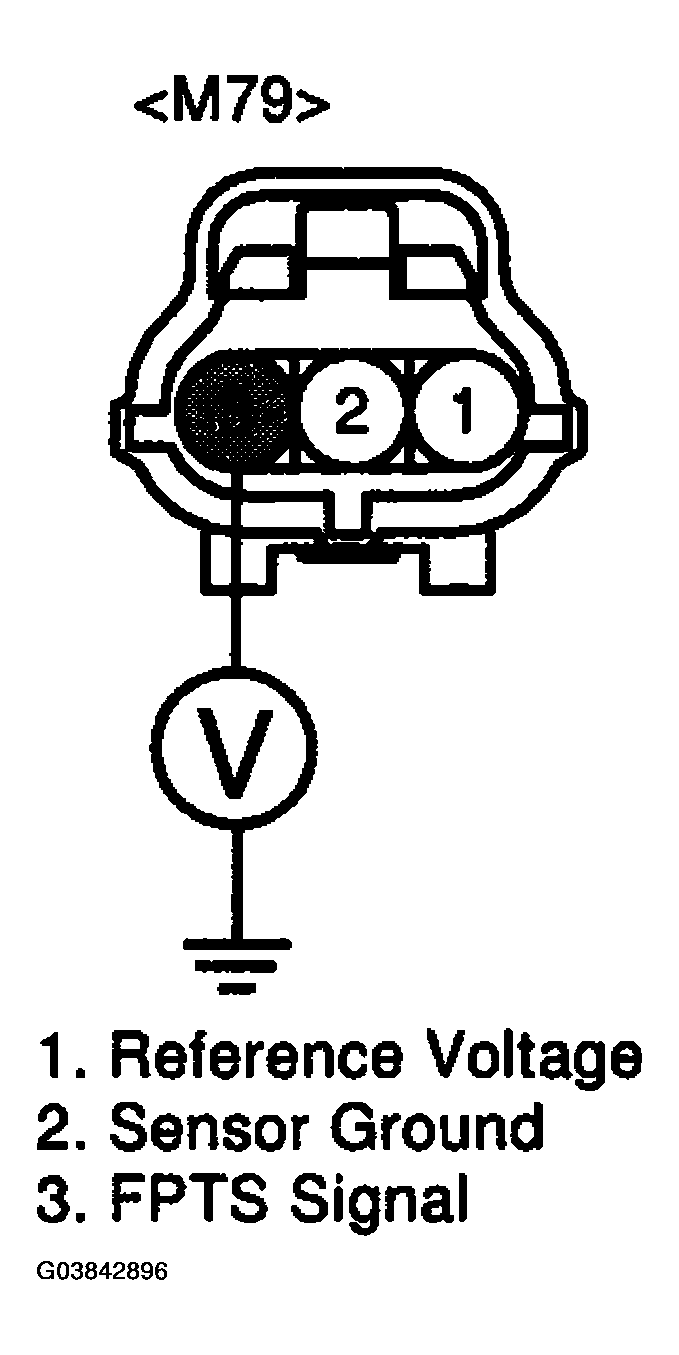

Fig 1: Measuring Voltage Between Terminal 3 Of FTPS Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is voltage within the specification?
YES
- Go to next step as below.
NO
- Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure.
