Component Inspection
- Visually/physically inspect following items:
- Visually/physically inspect the front HO2S for contamination, deterioration, or damage.
- Inspect the front HO2S for any silicon contamination. This contamination will be indicated by a white powdery coating and this will result in a but false voltage signal
- If contamination is evident on the HO2S, replace contaminated sensor and go to next step.
- Warm up the engine to normal operating temperature and check that HO2S signal is active.

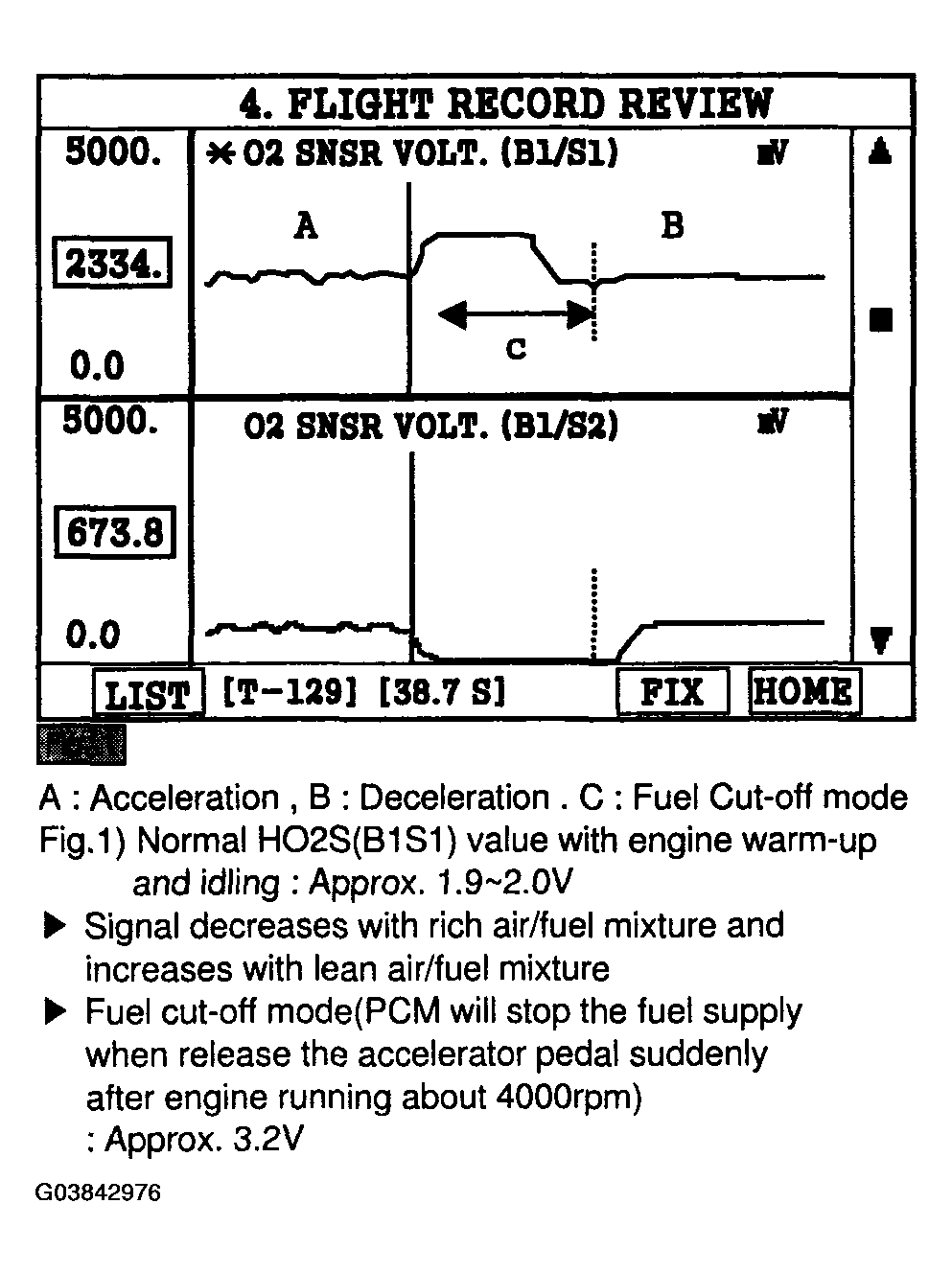

- Connect Scantool and monitor the "O2 SNSR VOLT.(B1/S1)" parameter on the Scantool data list.
Test Condition : Engine "ON" & In Closed loop mode
- Is sensor data near the specified value?
YES
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure
NO
- Check HO2S for contamination, deterioration, or damage. Substitute with a known-good HO2S and check for proper operation. If the problem is corrected, replace HO2S and then go to VERIFICATION OF VEHICLE REPAIR procedure.
