Component Inspection

Visually/physically inspect the air leakage in exhaust system
Visually/physically inspect the TWC and HO2S(B1/S2) for contamination, deterioration, or damage.
Was a problem found in any of the above areas?
YES
- Replace or repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure
NO
- Go to next step as below
Warm up the engine to normal operating temperature and check that HO2S signal is active.
Connect Scantool and monitor the "O2 SNSR VOLT.(B1/S2)" parameter on the Scantool data list.
Test Condition : Ignition "ON" & Engine "ON" & In Idle("Closed Loop")condition

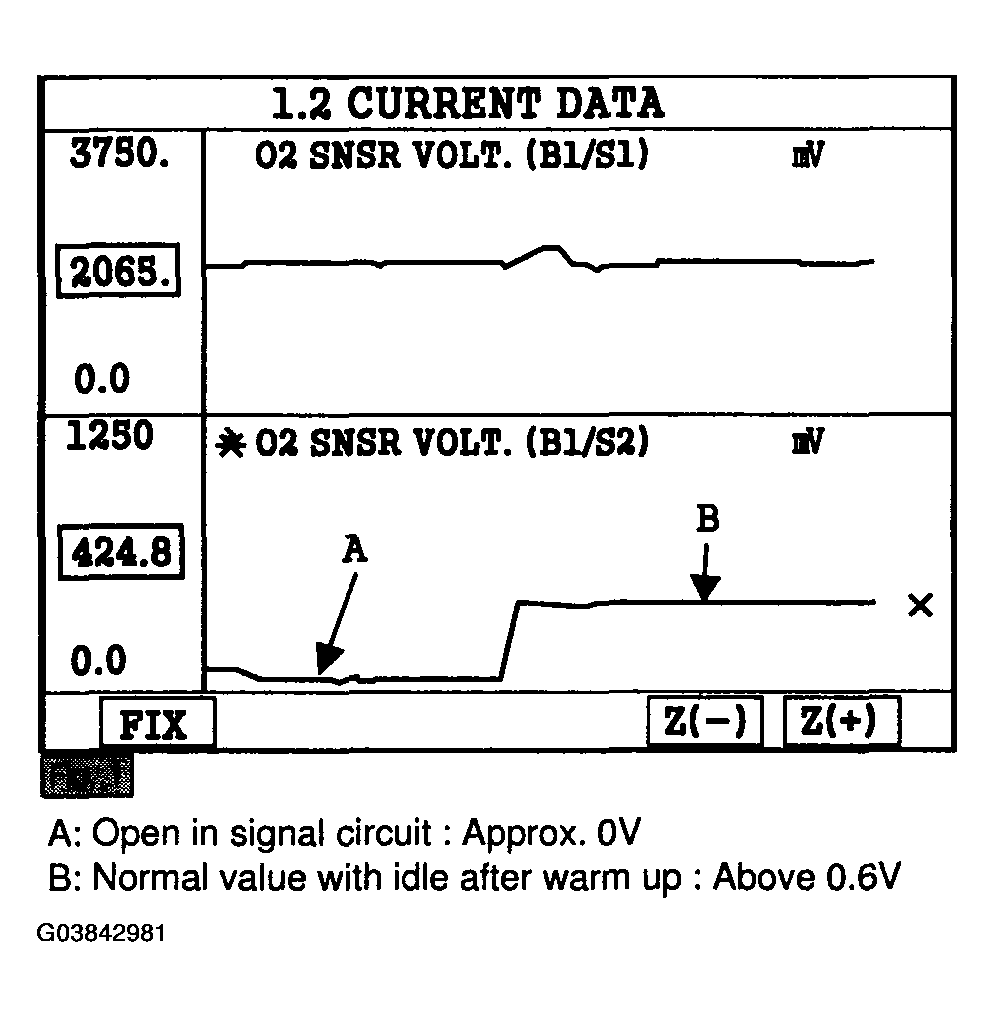

Fig 1: Scantool Data Monitor List
Courtesy of HYUNDAI MOTOR CO.
Is sensor data near the specified value?
YES
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure
NO
- Check HO2S(B1/S2) for contamination, deterioration, or damage. Substitute with a known-good HO2S(B1/S2) and check for proper operation. If the problem is corrected, replace HO2S(B1/S2) and then go to VERIFICATION OF VEHICLE REPAIR procedure
