Special Service Tools

SPECIAL SERVICE TOOLS SPECIFICATIONS

Tool (Number and name) Illustration Application

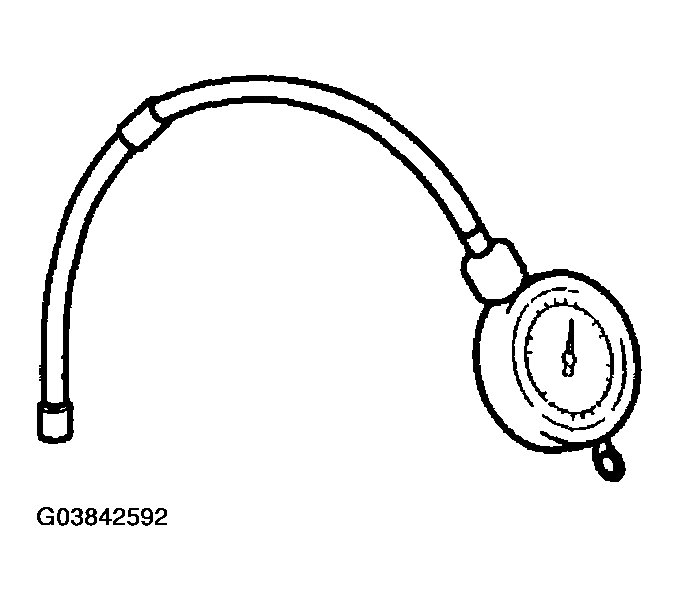

09353-24100 Fuel Pressure Gauge
G03842592Courtesy of HYUNDAI MOTOR CO.
 Measuring the fuel line pressure

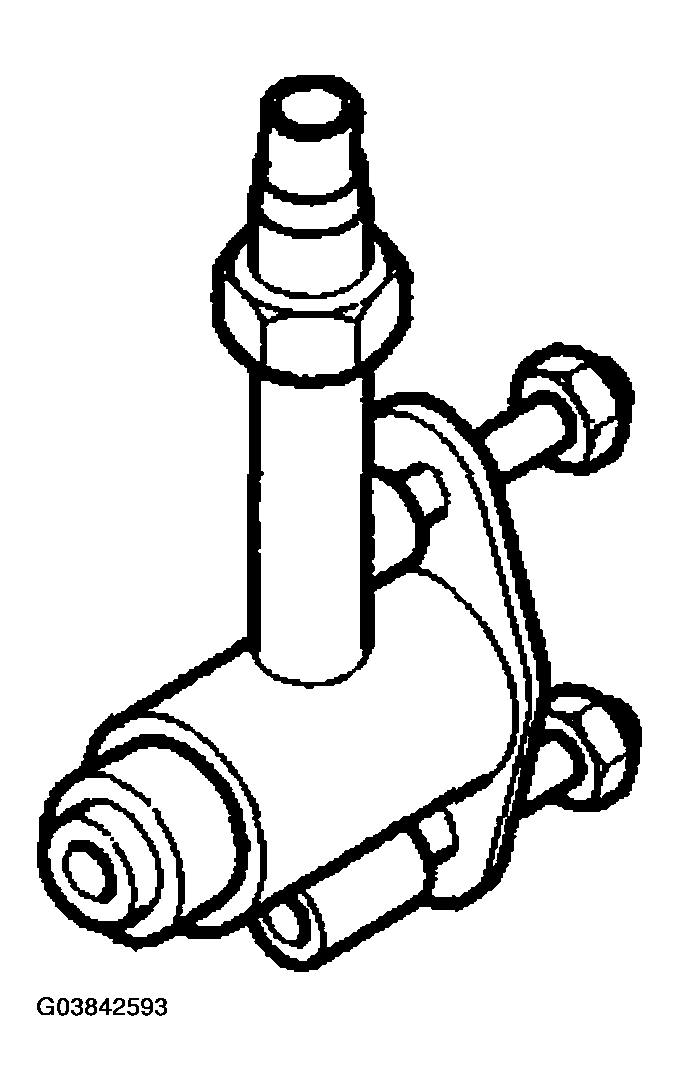

09353-38000 Fuel Pressure Gage Adapter
G03842593Courtesy of HYUNDAI MOTOR CO.
 Connection between the delivery pipe and fuel feed line

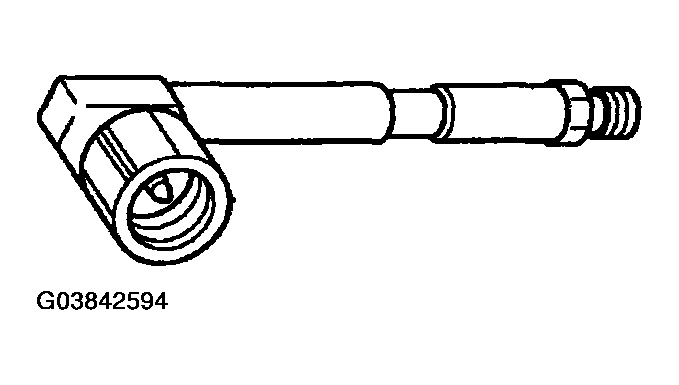

09353-38000 Fuel Pressure Gage Connector
G03842594Courtesy of HYUNDAI MOTOR CO.
 Connection between Fuel Pressure Gage (09353-24100) and Fuel Pressure Gage Adapter (09353-38000)
