Pinout Values and Diagnostic Parameters

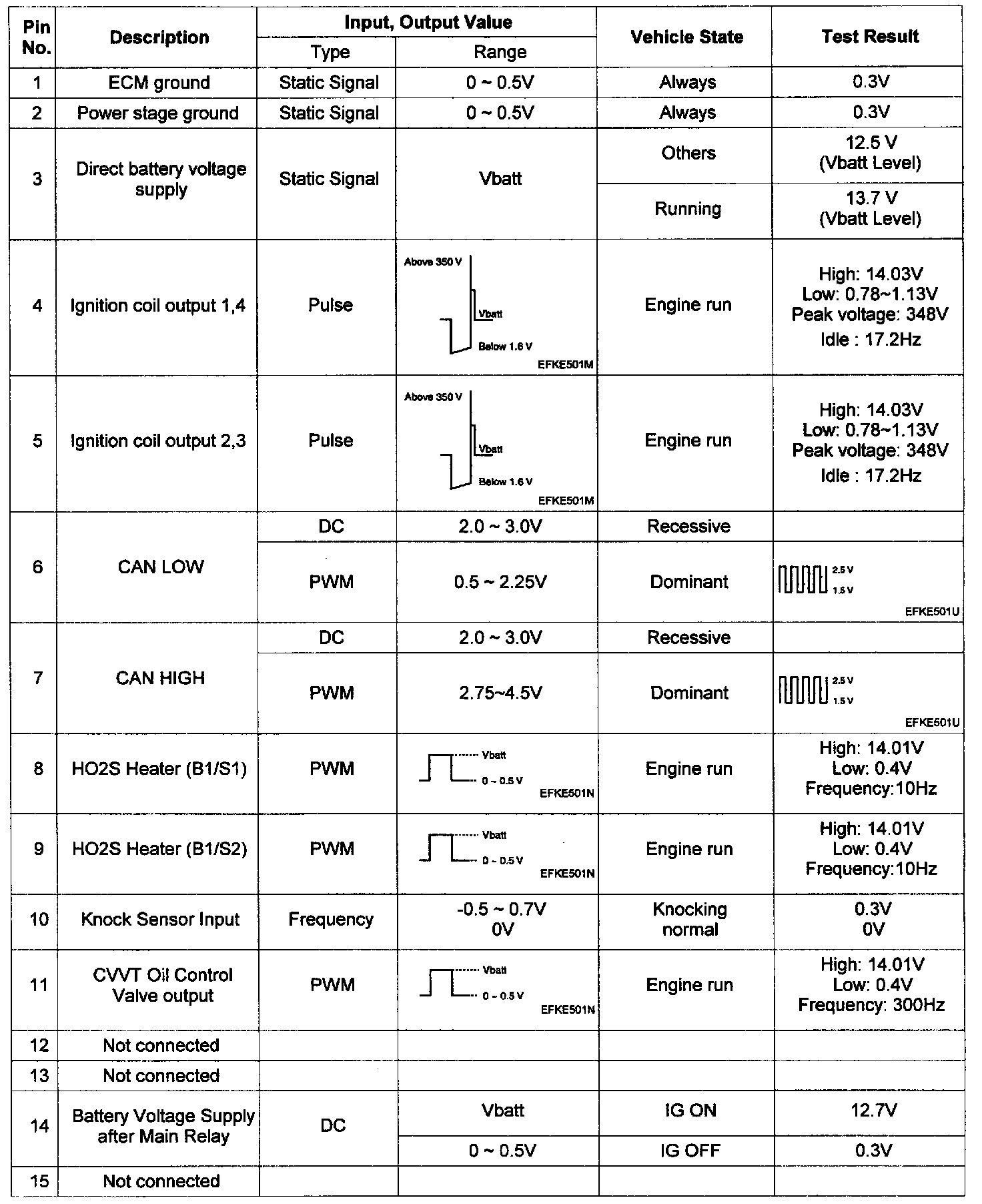

Pin No. 1 - 15:

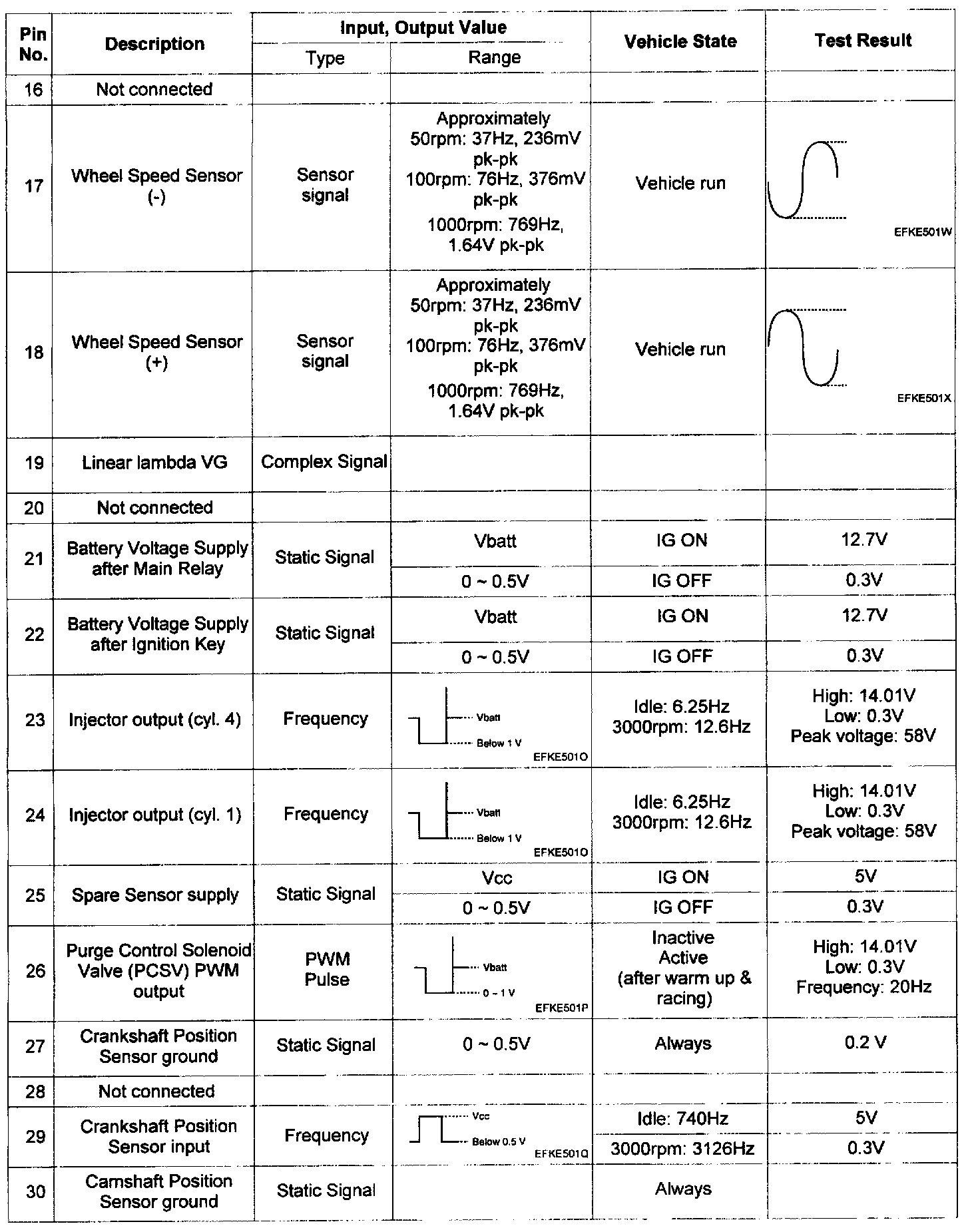

Pin No. 16 - 30:

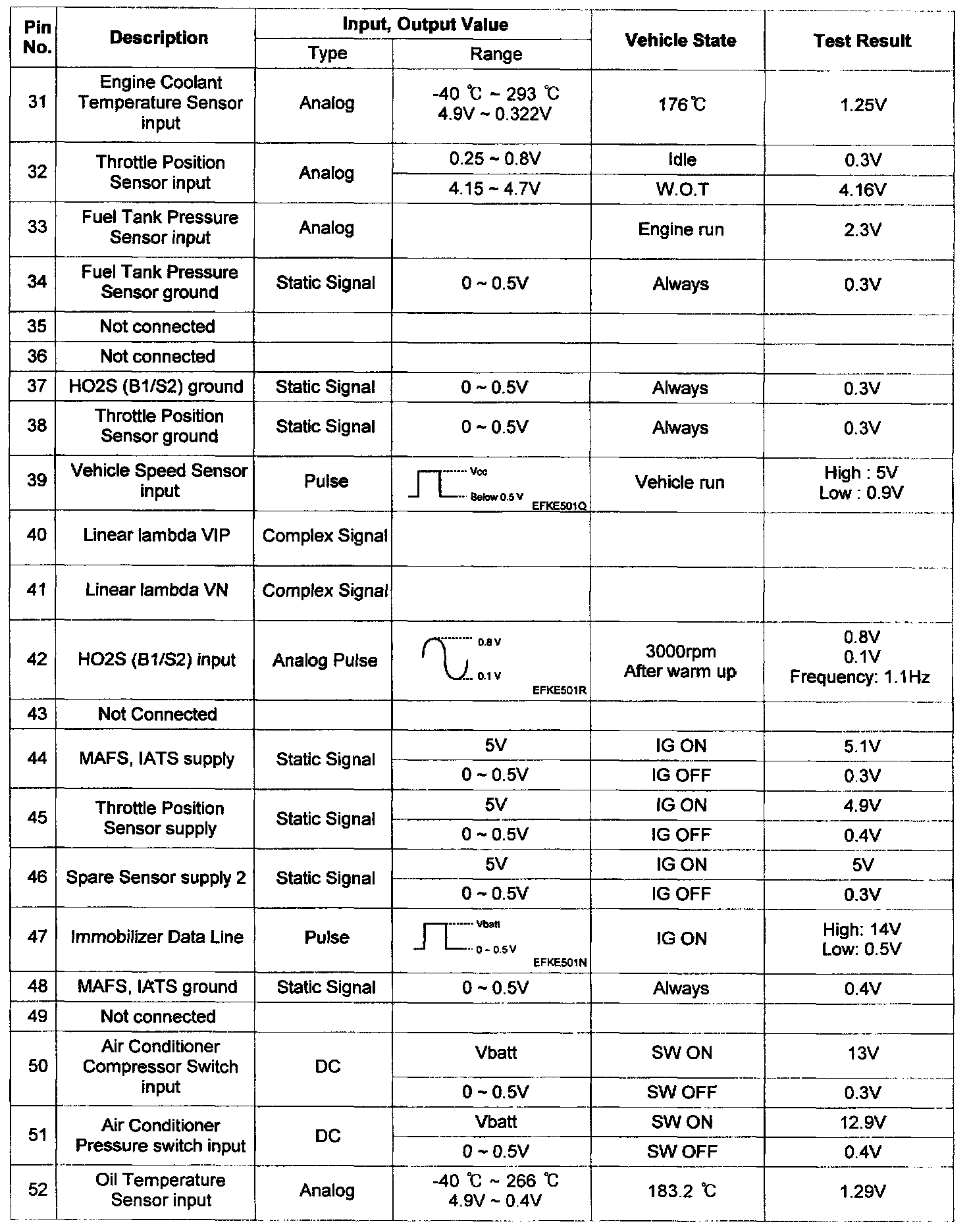

Pin No. 31 - 52:

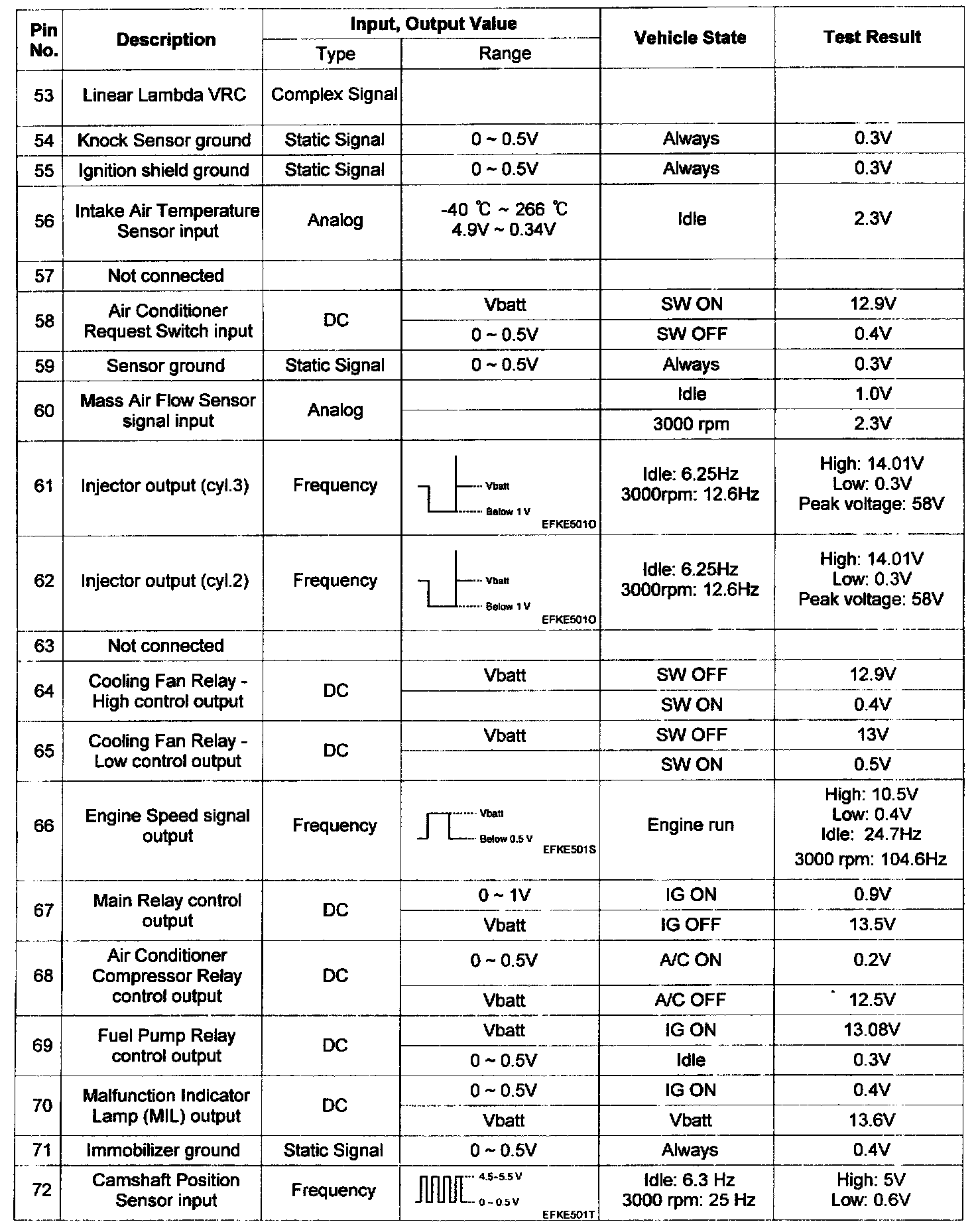

Pin No. 53 - 72:

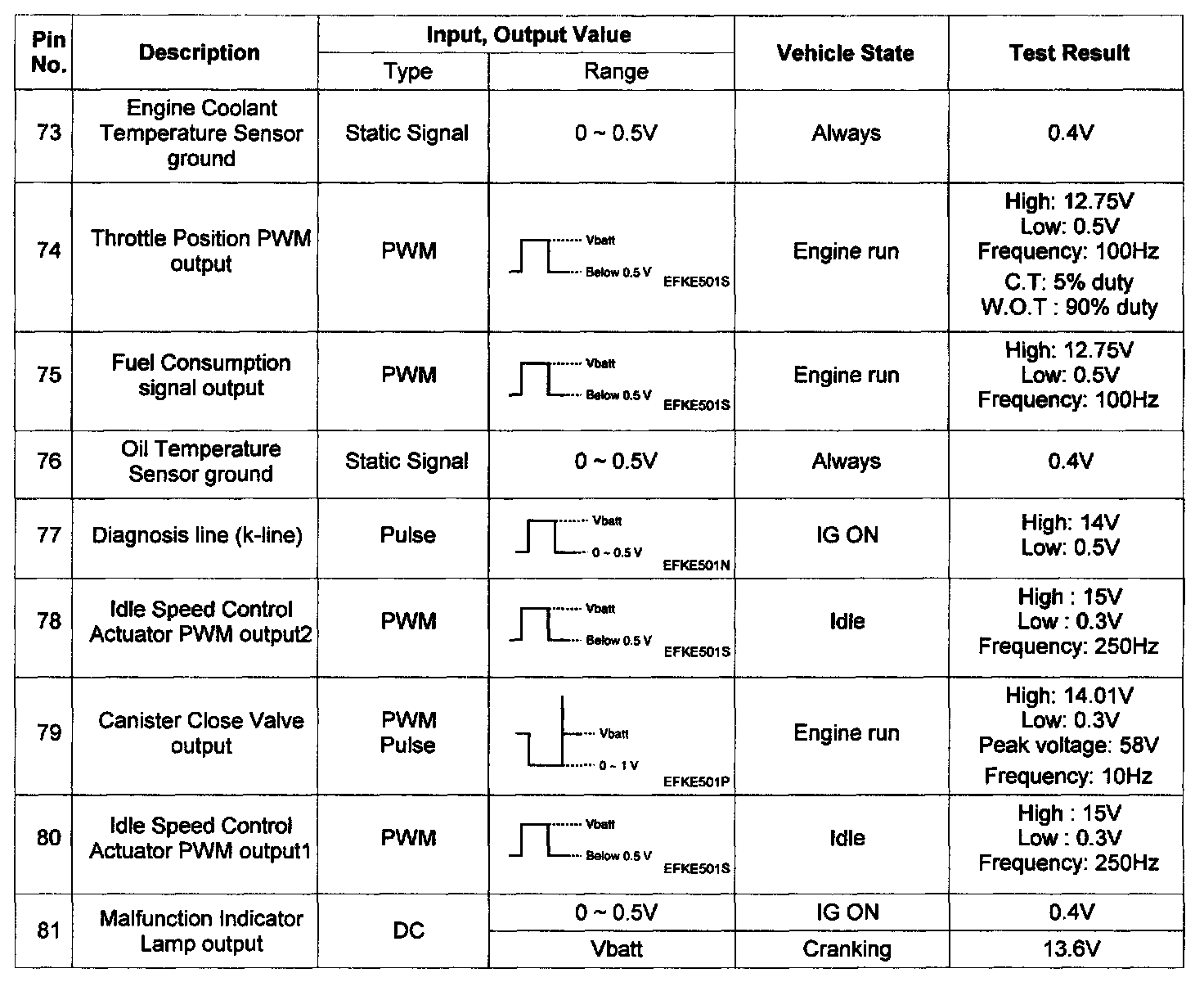

Pin No. 73 - 81:
