Ignition Failure Sensor: Testing and Inspection
IGNITION SWITCH-ST(M / T)IGNITION FAILURE SENSOR (IFS)

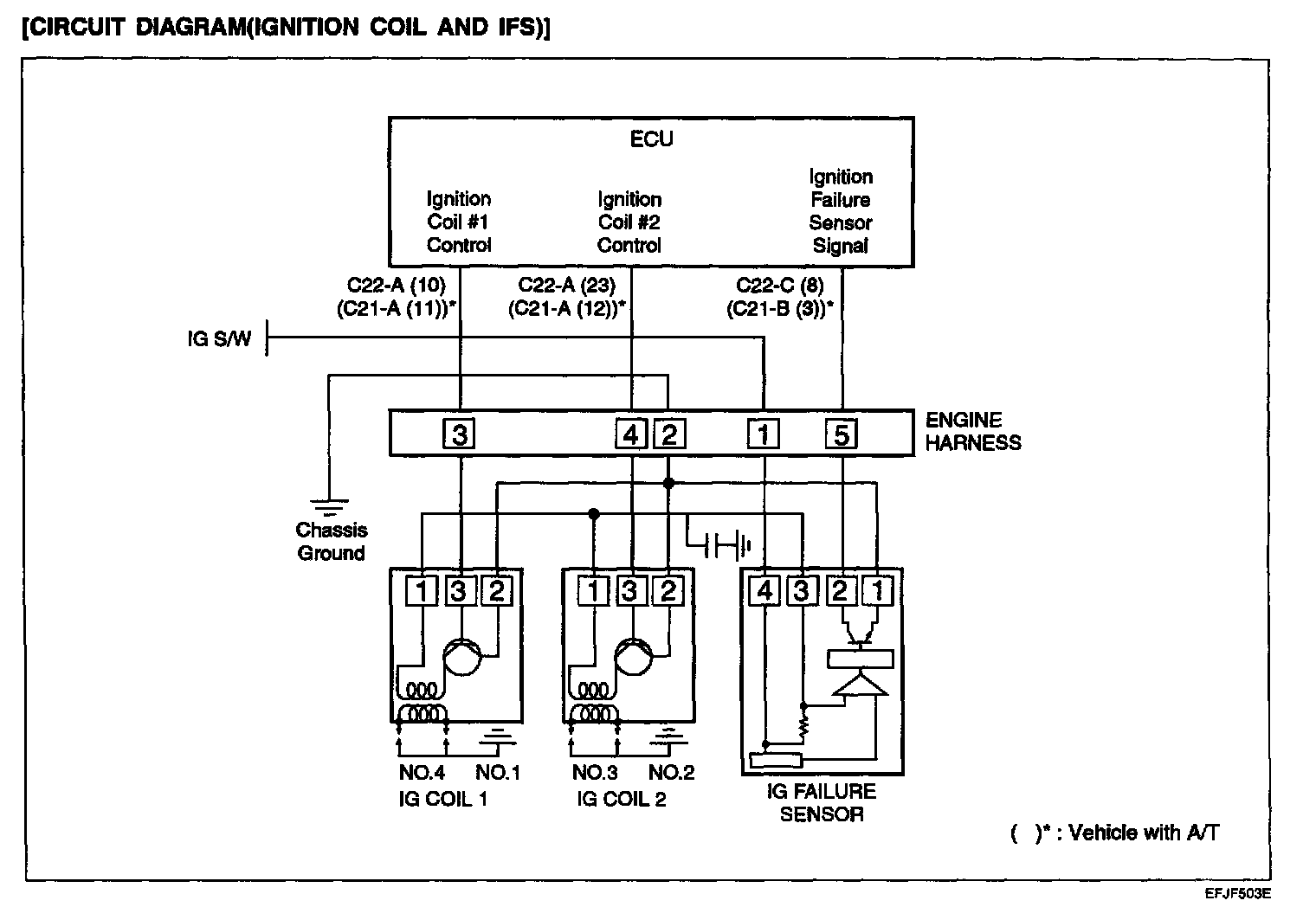

Circuit Diagram (Ignition Coil And IFS):
CIRCUIT DIAGRAM (IGNITION COIL AND IFS)

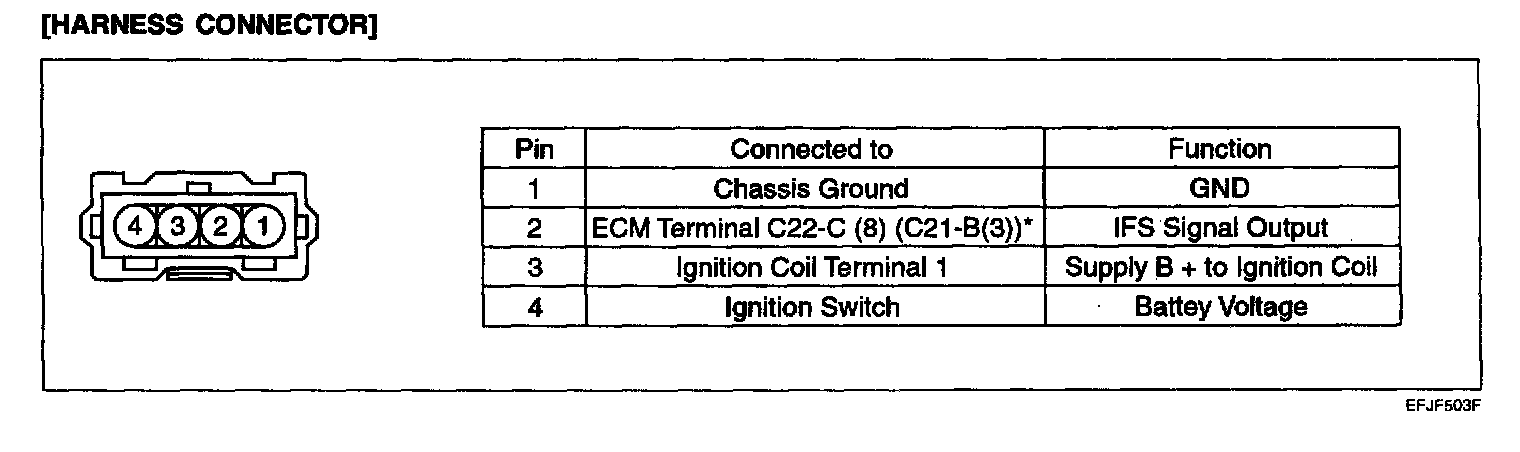

Harness Connector:
HARNESS CONNECTOR
Harness Inspection Procedures (IFS):
HARNESS INSPECTION PROCEDURES (IFS)
