ICM Terminal Connection

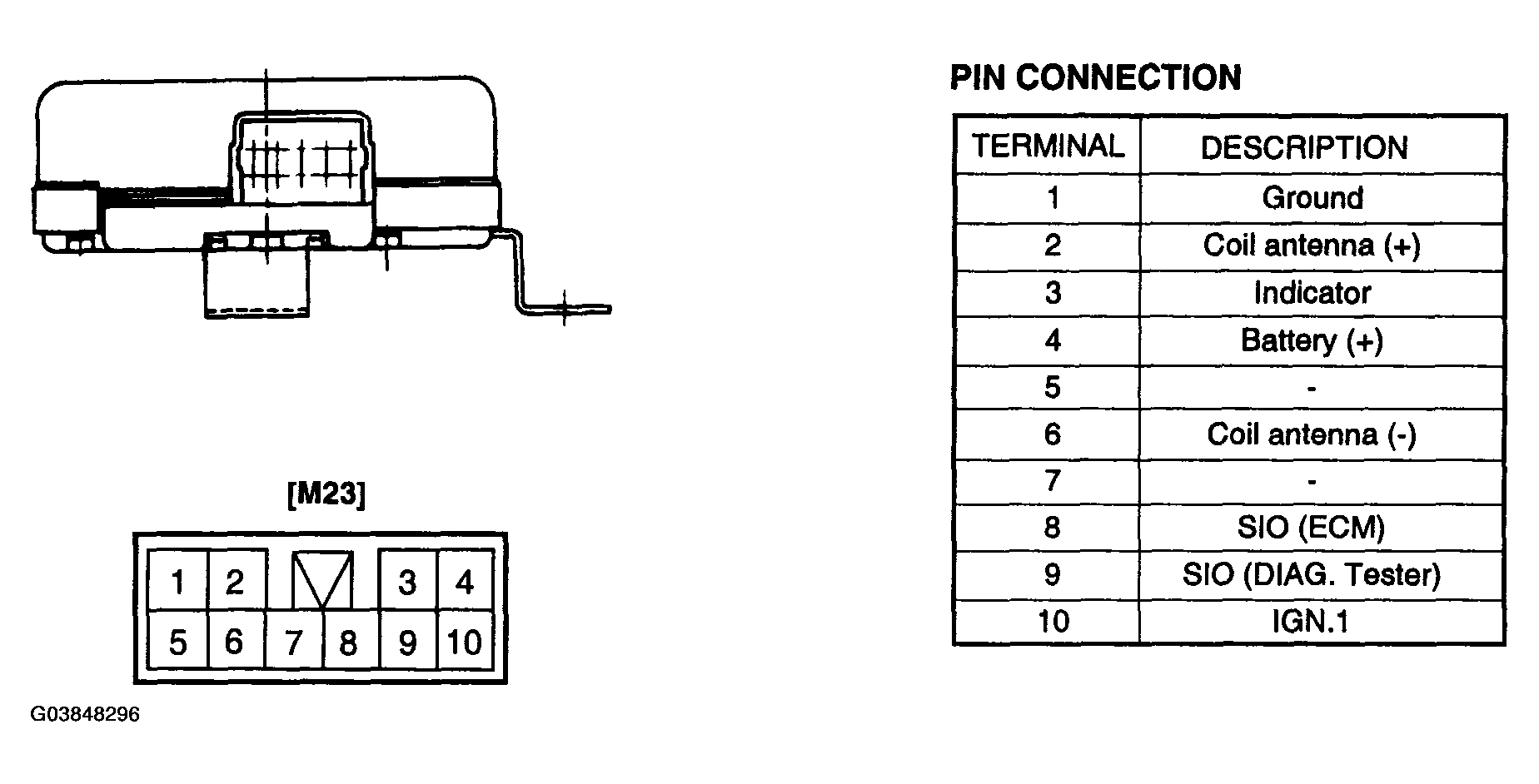

Fig 1: Identifying ICM Connector Terminals
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
