Fuel System (G6CU-GSL 3.5)
>>
Gasoline Engine Control System
>>
Electric Throttle System (ETS)
>>
Electronic Throttle System
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

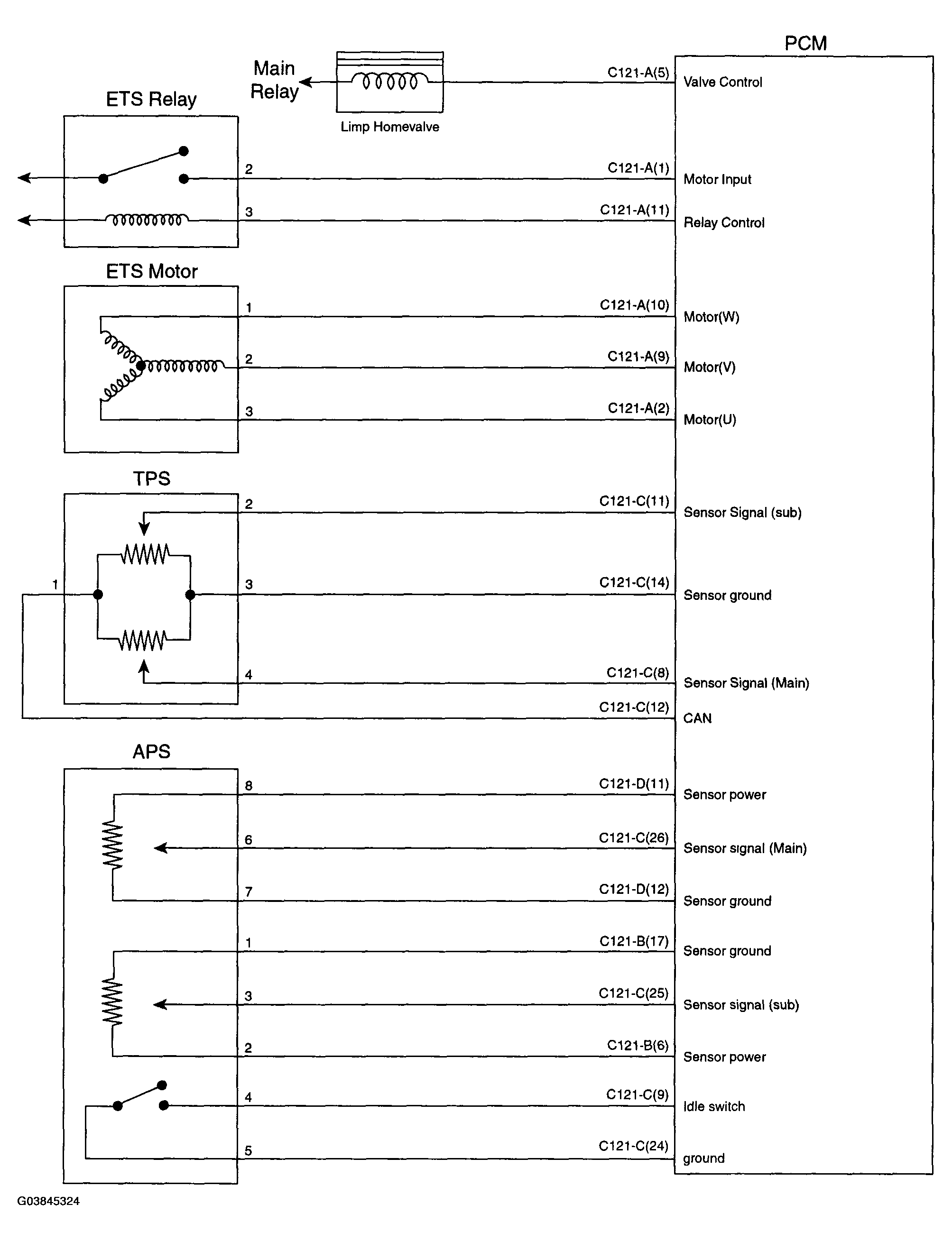

Fig 1: Electronic Throttle System Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
