Gasoline Engine Control System: Injector: Inspection

  1. Measure the resistance of the injectors between the terminals using an ohmmeter.

    Resistance  : 13 ~ 16Ω [at 20°C (68°F)]

  2. If the resistance is not within specification, replace the injector.

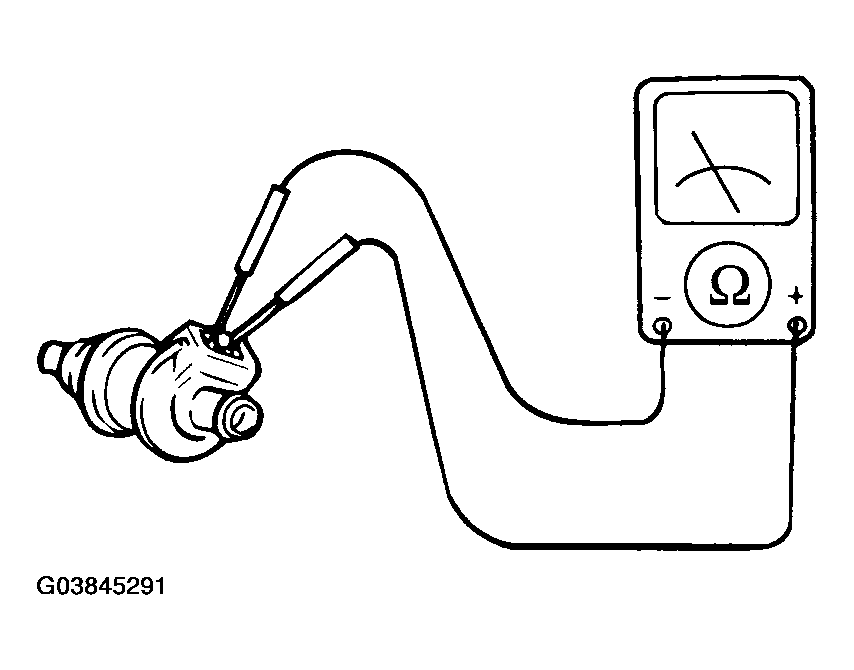

    Fig 1: Measuring Resistance Of Injectors Between Terminals
    G03845291Courtesy of HYUNDAI MOTOR CO.
