Throttle Position Sensor (TPS): Inspection

  1. Connect a HI-SCAN (PRO) to the data link connector.
    NOTE: Before inspecting the TPS, verify the basic idle speed is as specified.

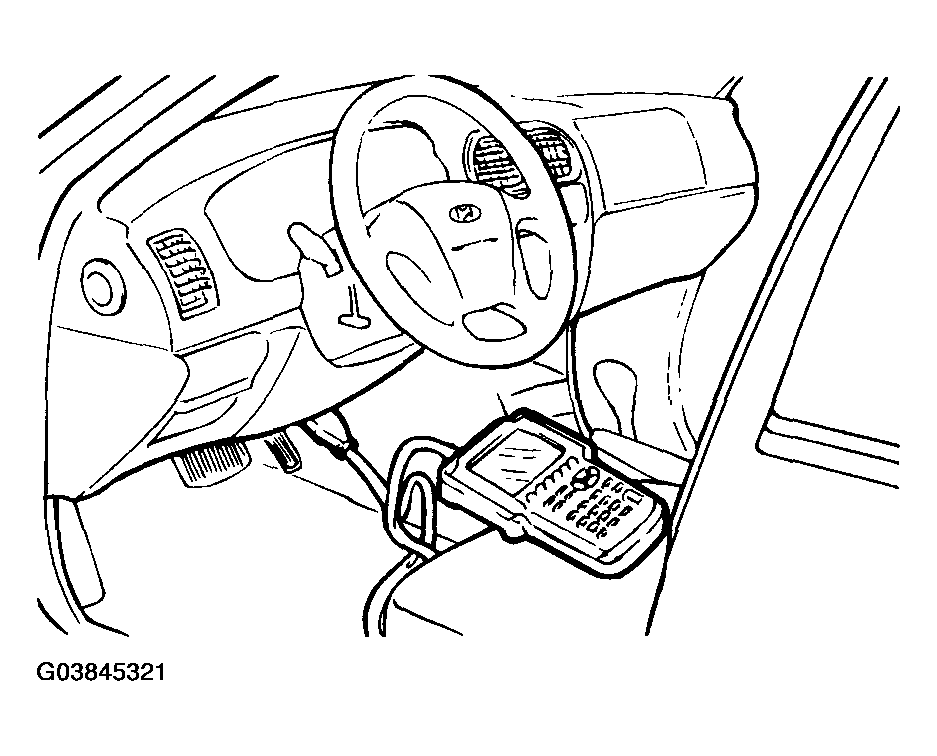

    Fig 1: Connecting HI-SCAN To Data Link Connector
    G03845321Courtesy of HYUNDAI MOTOR CO.
  2. If a HI-SCAN (PRO) is not used, connect a digital-type voltmeter between ground and TPS output terminal.

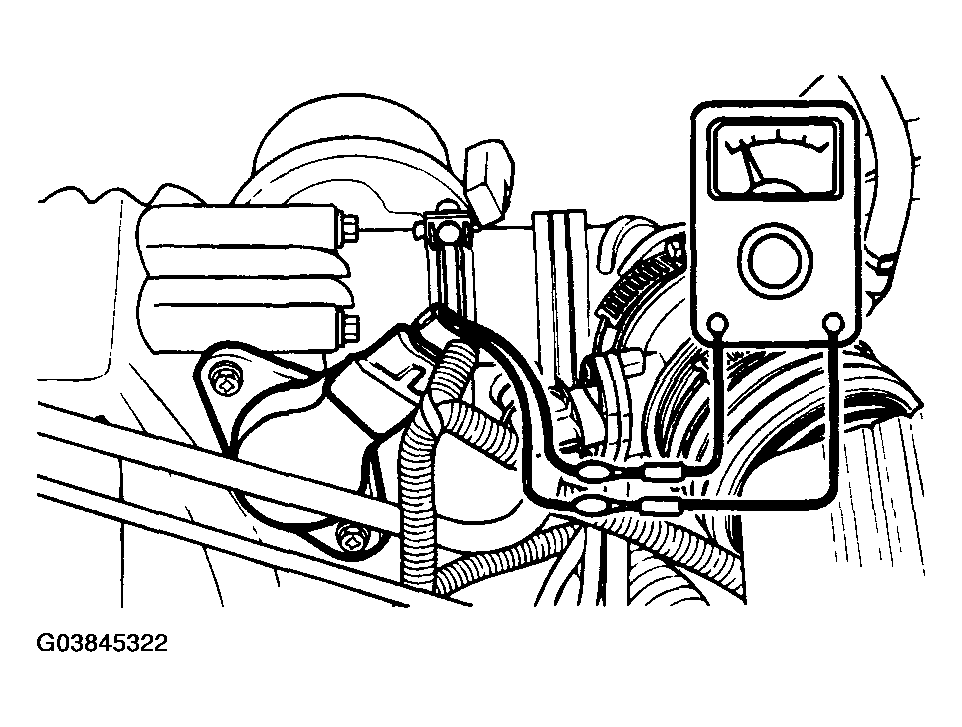

    Fig 2: Connecting Digital-Type Voltmeter Between Ground And TPS Output Terminal
    G03845322Courtesy of HYUNDAI MOTOR CO.
  3. Turn the ignition switch to the ON position (do not start engine) and check that TPS output voltage is as specified. If a HI-SCAN (PRO) is used, read the TPS voltage.

    Standard value (ETS vehicle) : 300 ~ 900mV

  4. If it is out of specification, loosen TPS mounting screws and adjust by turning the TPS.
  5. Turn the ignition switch to the OFF position.
