Special Service Tools
SPECIAL SERVICE TOOLS CHART
| Tool (Number and name) | Illustration | Application |
|---|---|---|

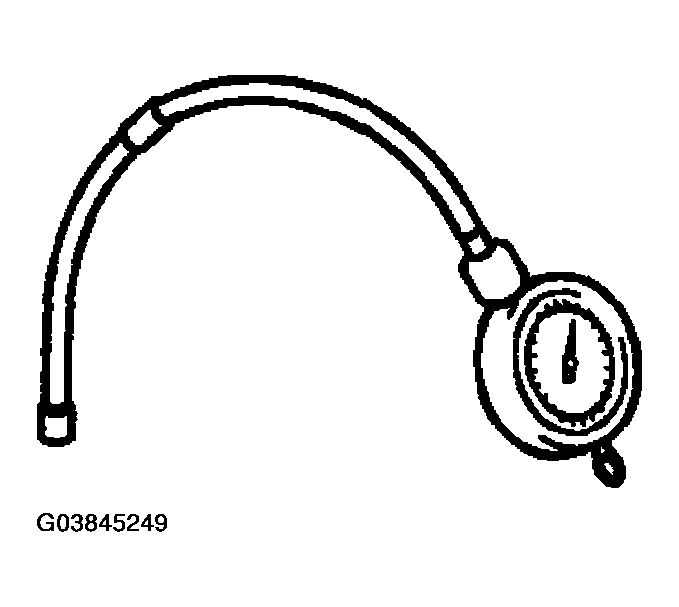

| 09353-24100 Fuel Pressure Gauge |
Measuring the fuel line pressure | |

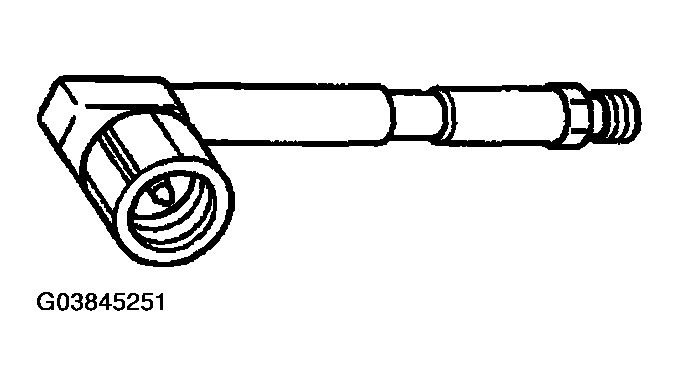

| 09353-38000 Fuel Pressure Gauge Adapter |
Connection between the delivery pipe and fuel feed line | |

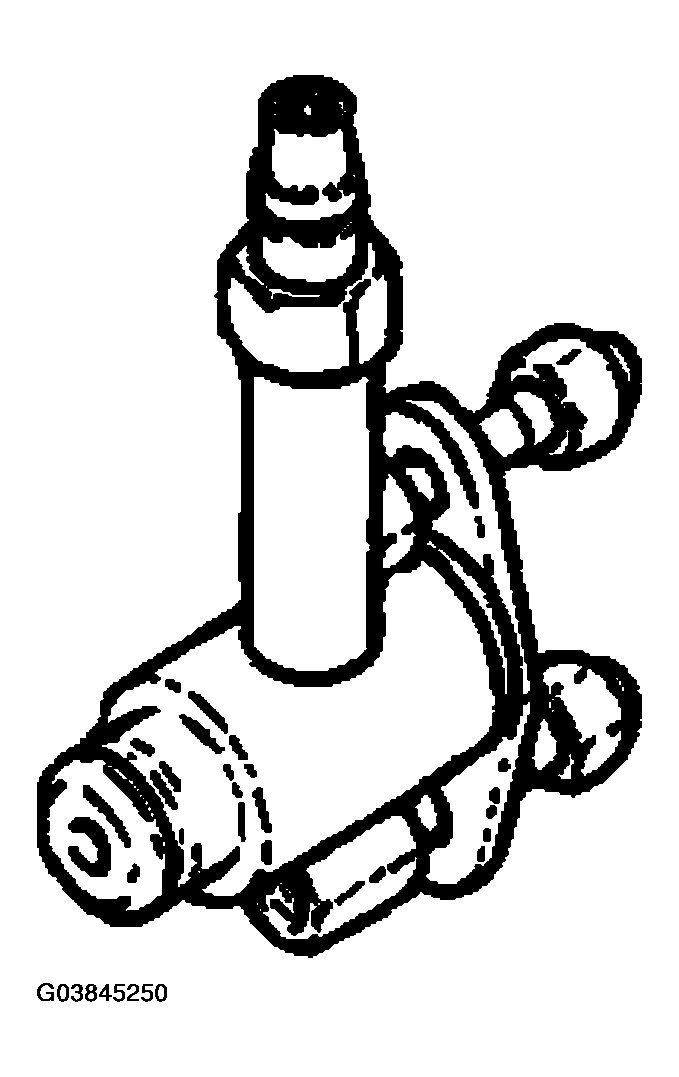

| 09353-24000 Fuel Pressure Gauge Connector |
Connection between Fuel Pressure Gauge (09353-24100) and Fuel Pressure Gauge Adapter (09353-38000) |
