Hyundai
>>
2005
>>
Santa Fe LX, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G6CU-GSL 3.5)
>>
Gasoline Engine Control System
>>
Injector
>>
Injector
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

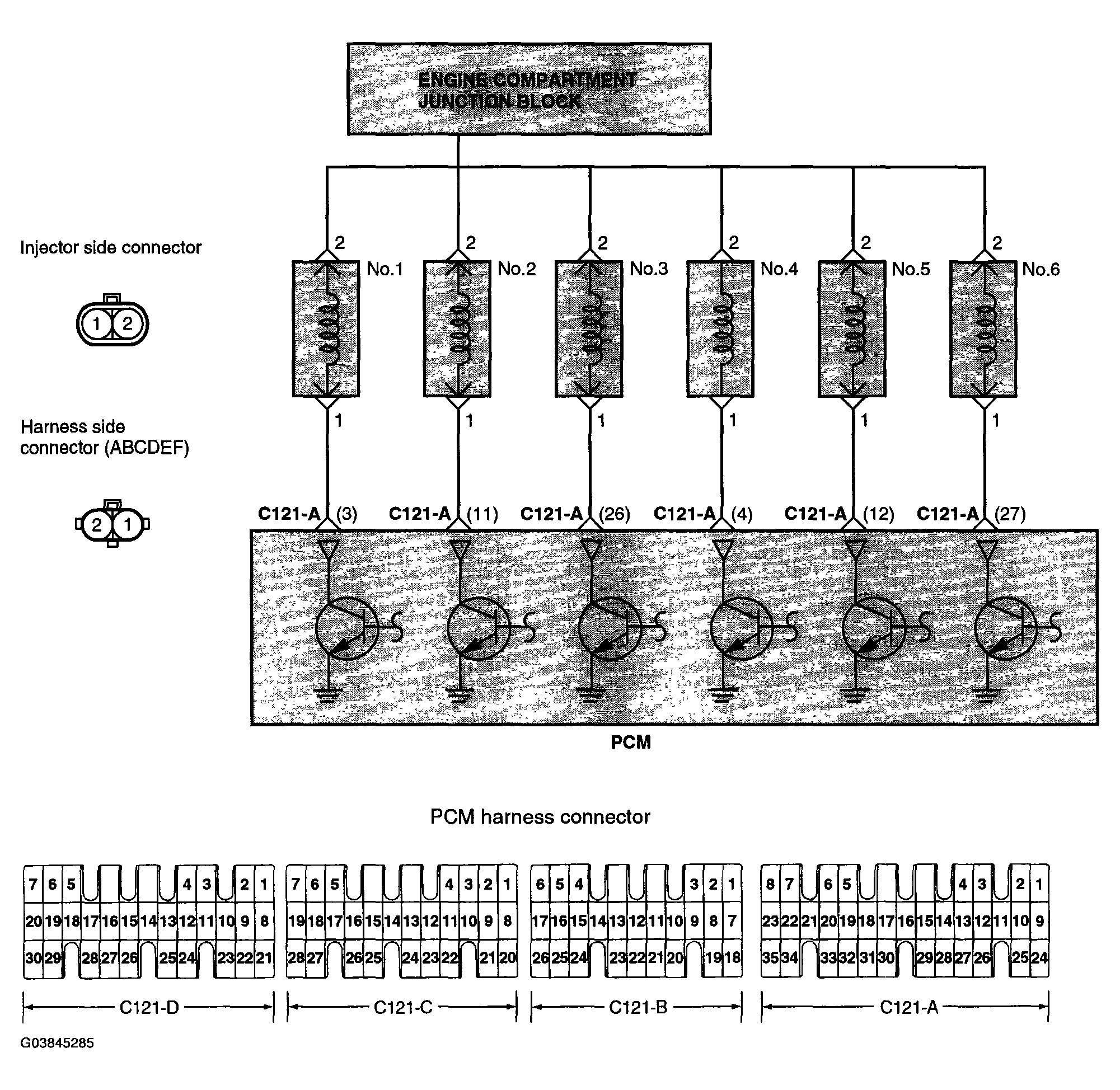

Fig 1: Injector Circuit Diagram
