Camshaft Position (TDC) Sensor: Notes

The TDC Sensor is a Hall-effect sensor that detects the camshaft position on the compression stroke of the No.1 cylinder, converts it into a pulse signal, and inputs it to the ECM. The ECM then computes the fuel injection sequence, etc. based on the input signal.

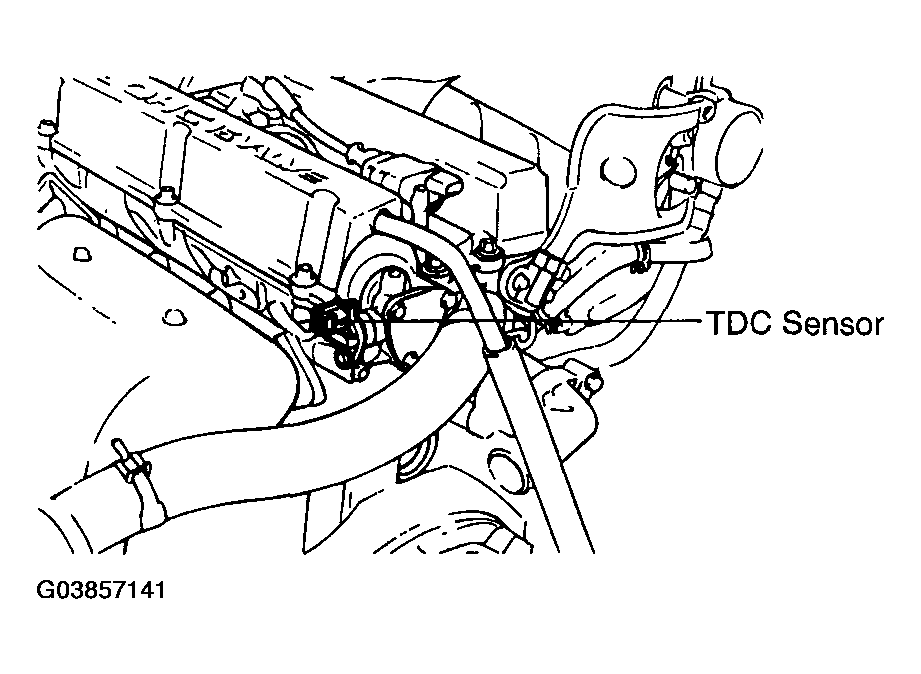

Fig 1: Locating Camshaft Position Sensor (CMPS)

Courtesy of HYUNDAI MOTOR CO.

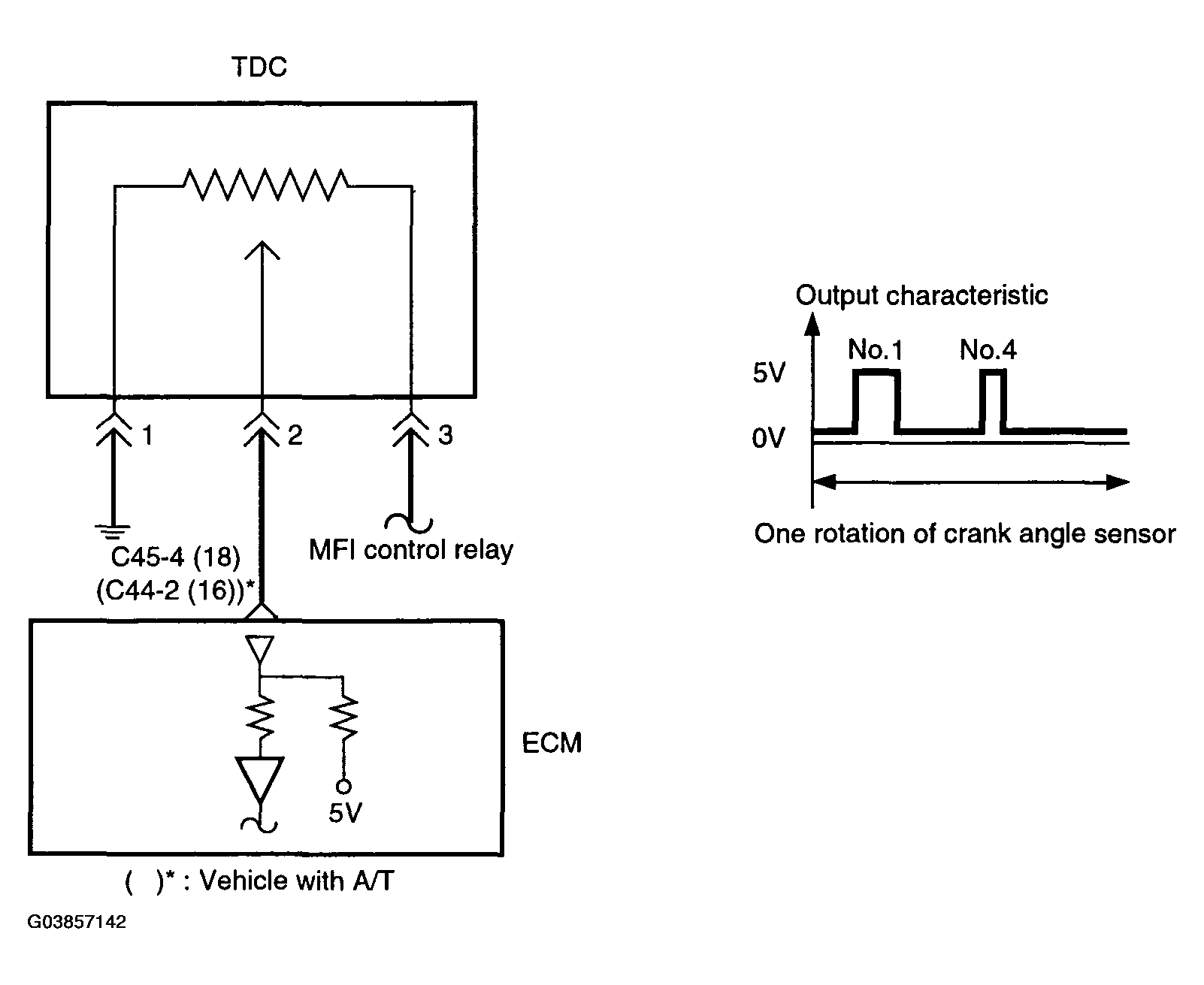

Fig 2: Circuit Diagram - Camshaft Position Sensor (CMPS)

Courtesy of HYUNDAI MOTOR CO.

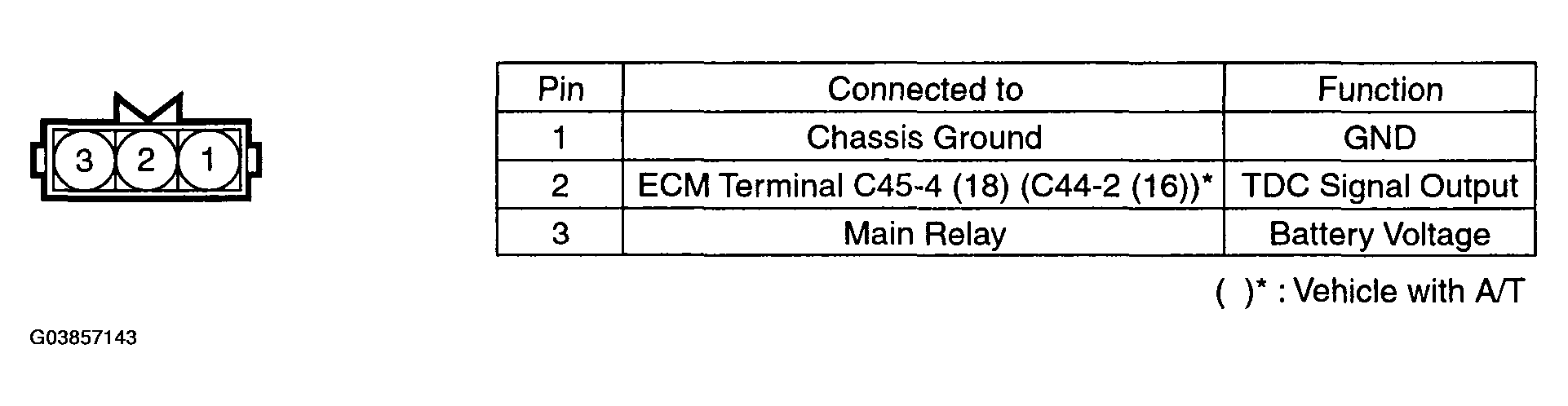

Fig 3: Identifying Harness Connector Of Camshaft Position Sensor (CMPS)

Courtesy of HYUNDAI MOTOR CO.
