ETACS Module Input Signal Test: Notes

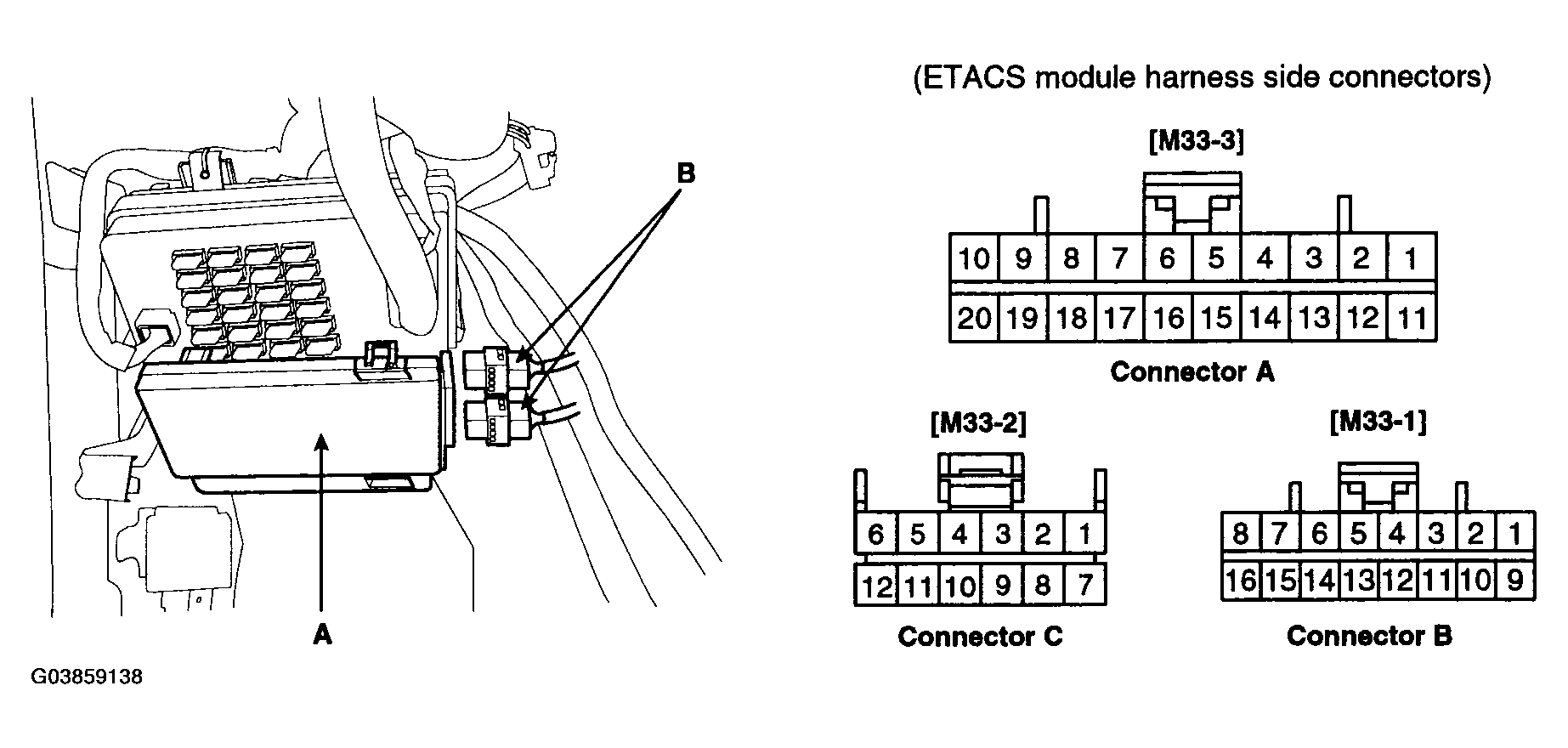

- Disconnect the wire connectors(B) from the ETACS module(A).
- Inspect the connectors(B) on wire harness side as shown in Fig 1 .
ETACS MODULE TERMINAL CHART
| Terminal No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | - | Intermittent wiper switch | Trunk key unlock switch |
| 2 | Tail lamp relay | Assist door lock switch | Hood switch |
| 3 | Rear door lock switch | Driver door lock switch | Driver/Assist door key unlock switch |
| 4 | Power window relay | Seat belt switch | Air bag crush signal |
| 5 | IGN1 | Washer switch | Trunk unlock relay |
| 6 | IGN2 | Ignition key hole illumination | Hazard lamp relay |
| 7 | Speed sensor | Door key hole illumination | Keyless entry receiver unit |
| 8 | Driver door switch | Wiper relay | Siren |
| 9 | Assist door switch | Door handle switch | - |
| 10 | Battery | Door warning switch | - |
| 11 | Room lamp | Intermittent wiper volume | Trunk switch |
| 12 | Rear defogger relay | Chime bell | Burglar alarm relay |
| 13 | Seat belt-warning lamp | DRL | |
| 14 | Door lock relay | Tail lamp switch | |
| 15 | Door unlock relay | - | |
| 16 | Ground | Front fog lamp relay | |
| 17 | Rear defogger switch | ||
| 18 | Door switch | ||
| 19 | Alternator "L" | ||
| 20 | Head lamp relay |
