Immobilizer Control Module: Removal

Remove the center facia panel using a screwdriver and disconnect the switch connectors.

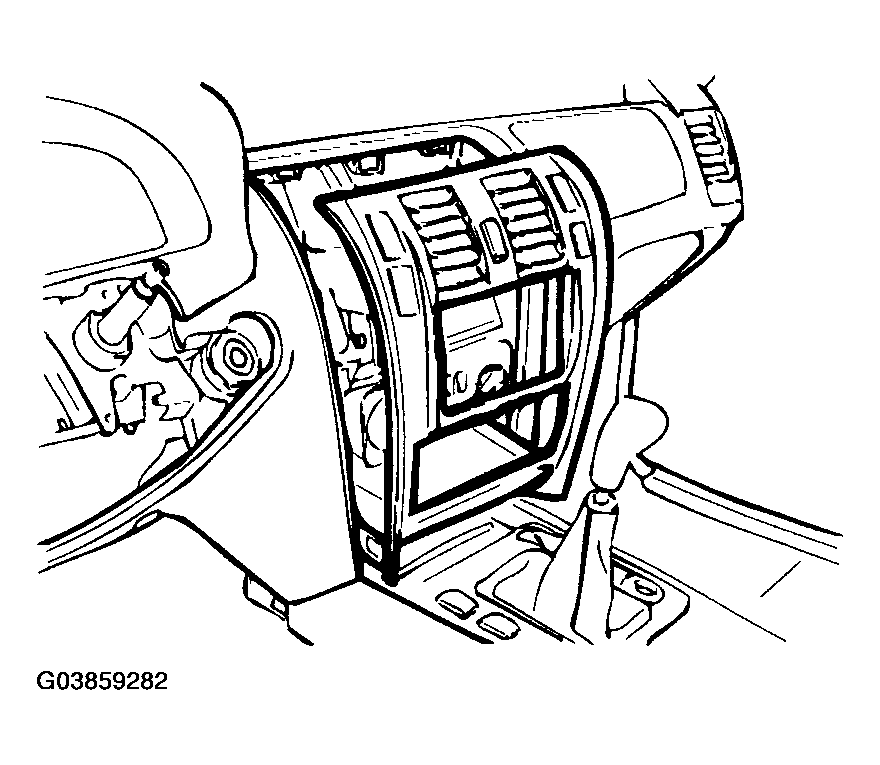

Fig 1: Removing Center Facia Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the audio unit.

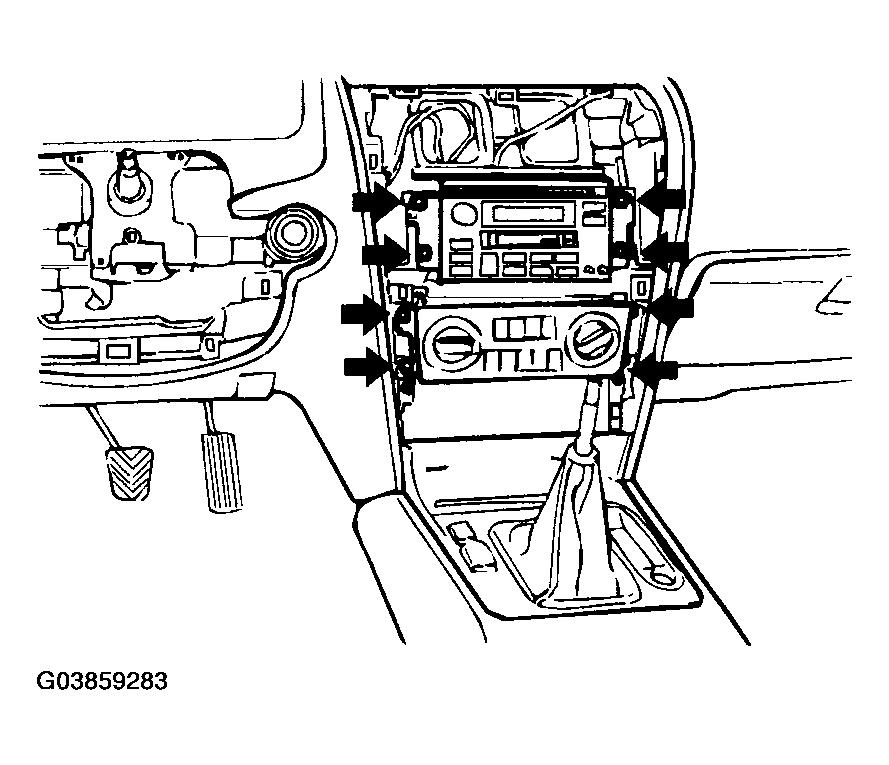

Fig 2: Removing Audio Unit
Courtesy of HYUNDAI MOTOR CO.
Remove the flange nuts holding the ICM (Immobilizer Control Module) from left hand center facia support bracket.

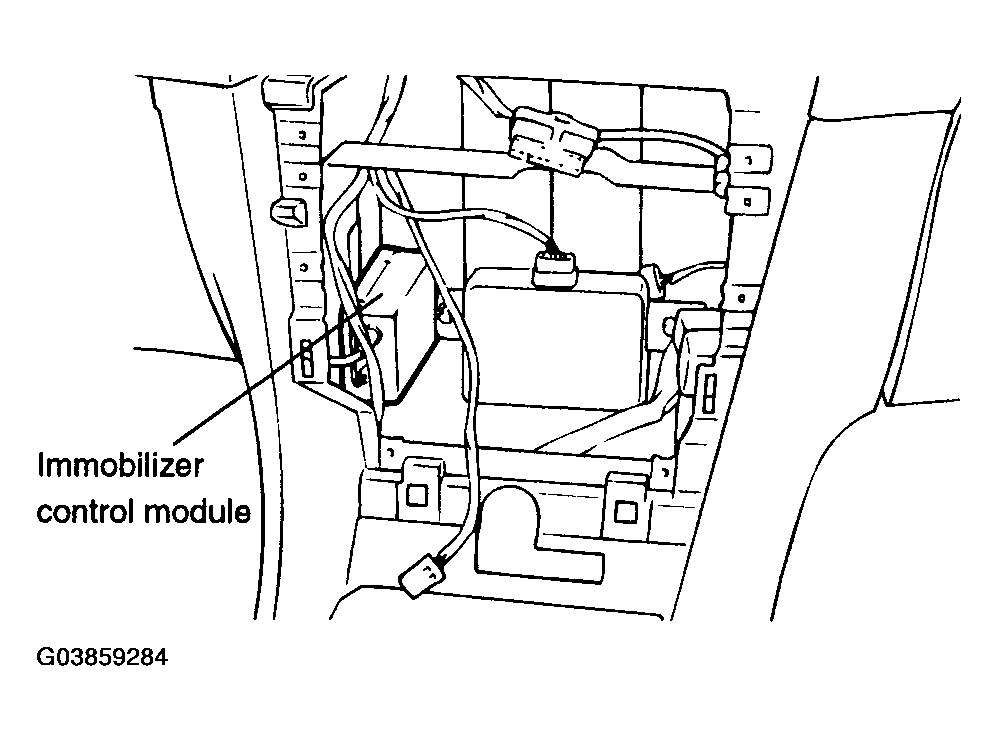

Fig 3: Identifying Immobilizer Control Module Location
Courtesy of HYUNDAI MOTOR CO.
