Sonata GLS
>>
Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Door Locks
>>
Immobilizer Control System
>>
Immobilizer Control Module
>>
System Block Diagram
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Block Diagram: Notes

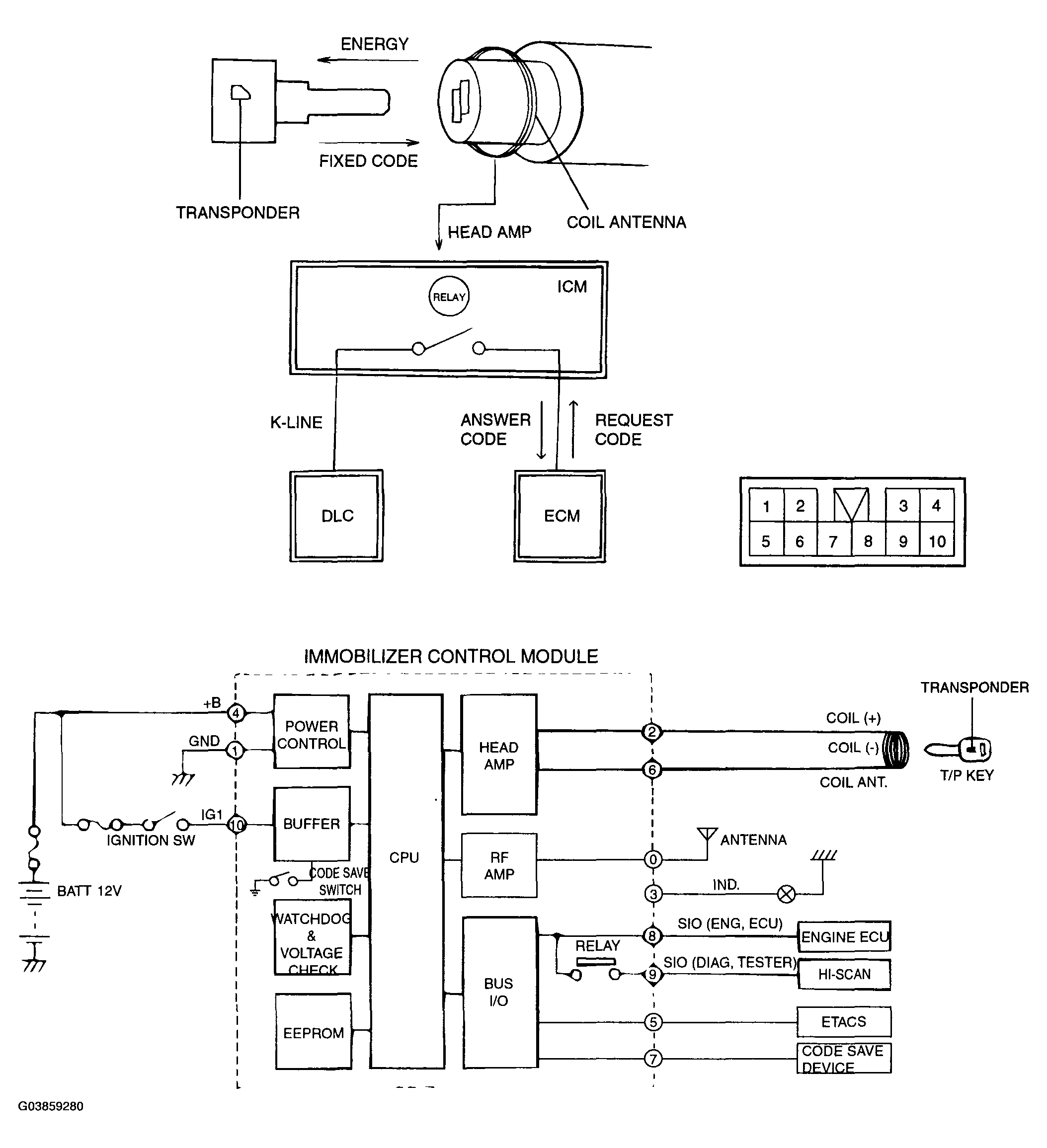

Fig 1: Immobilizer Control System Block Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
