System Components

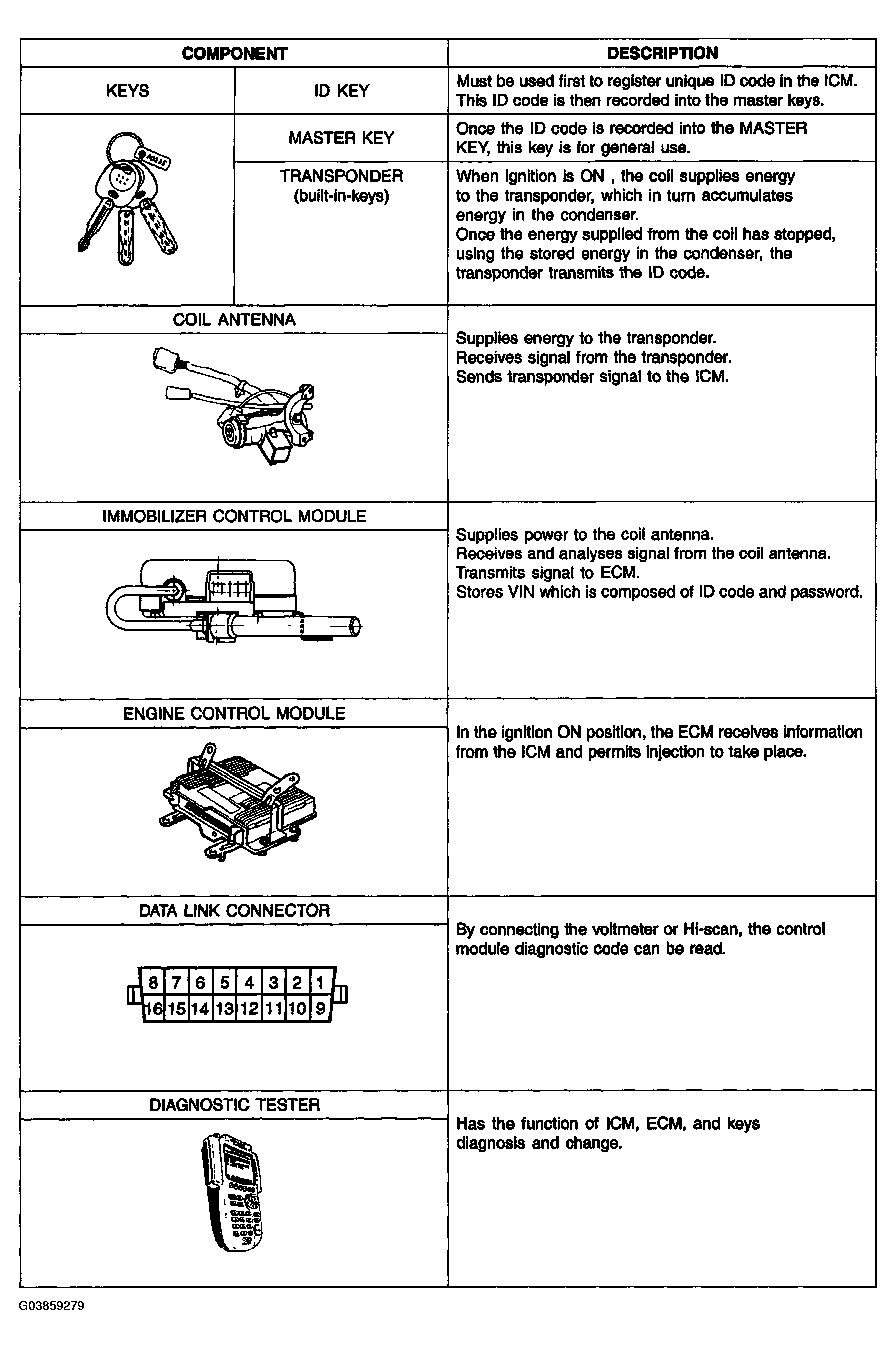

Fig 1: Identifying Immobilizer Control System Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
