Power Window Switch: Inspection: Notes

  1. Remove the switch from the door trim panel.
  2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.

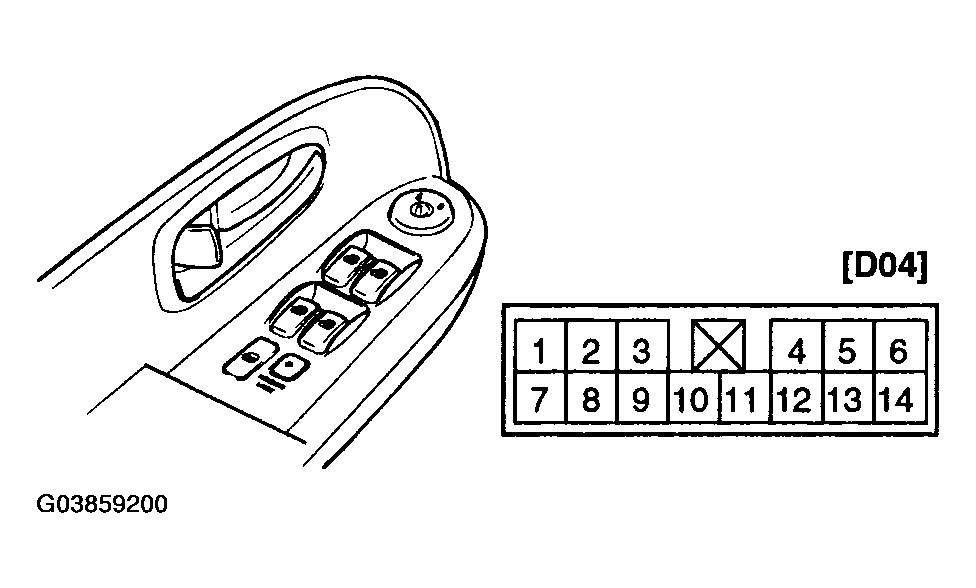

    Fig 1: Removing Switch From Door Trim Panel
    G03859200Courtesy of HYUNDAI MOTOR CO.

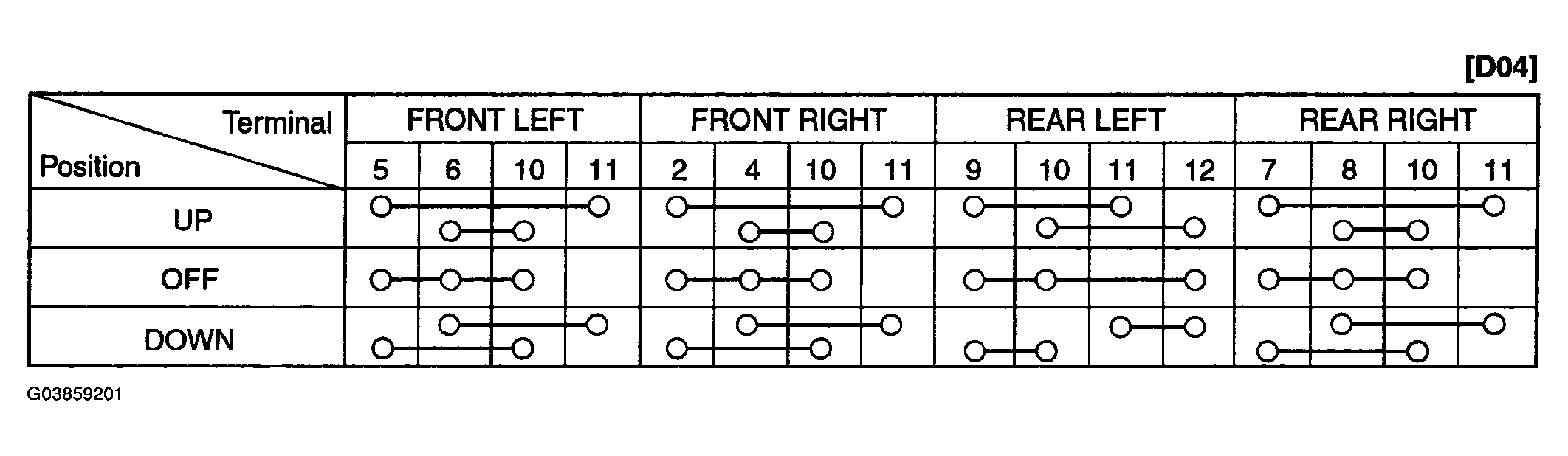

    Fig 2: Power Window Switch Continuity Table
    G03859201Courtesy of HYUNDAI MOTOR CO.
