Power Window Sub-Switch

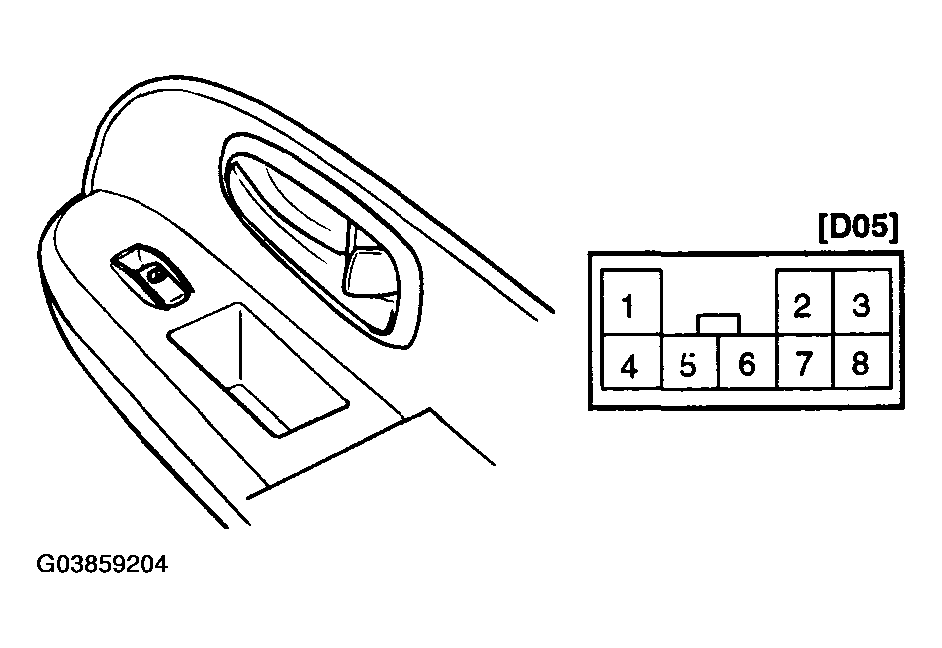

Fig 1: Identifying Power Window Sub-Switch
G03859204Courtesy of HYUNDAI MOTOR CO.

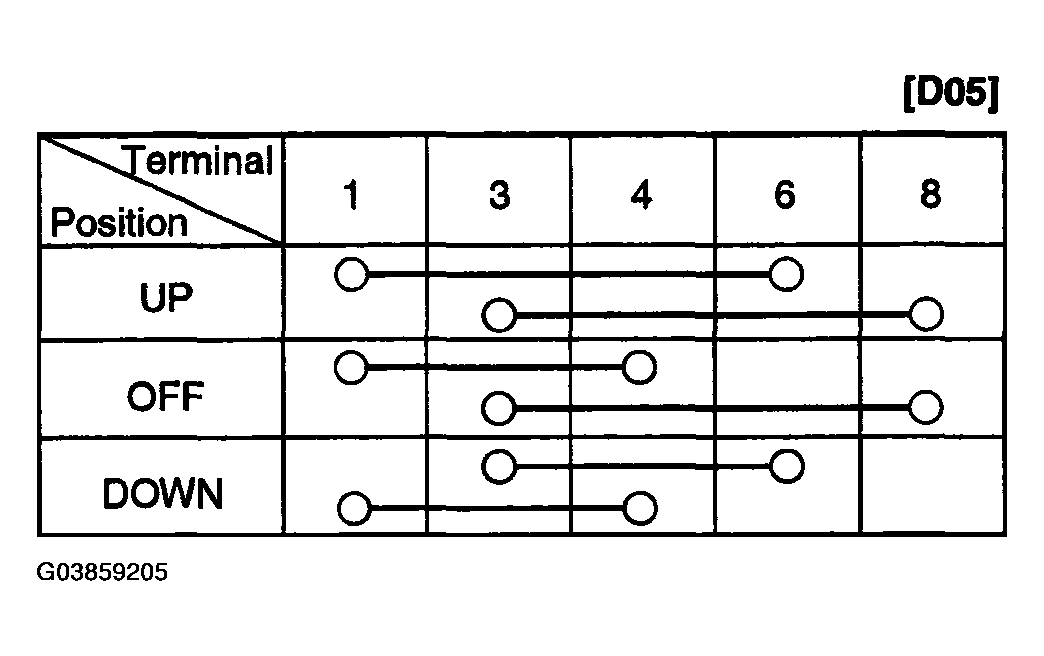

Fig 2: Power Window Sub-Switch Continuity Table
G03859205Courtesy of HYUNDAI MOTOR CO.
