Fuel Line: Installation

  1. Install a new grommet and O-ring to the injector.
  2. Apply a coating of solvent, spindle oil or gasoline to the injector O-ring.

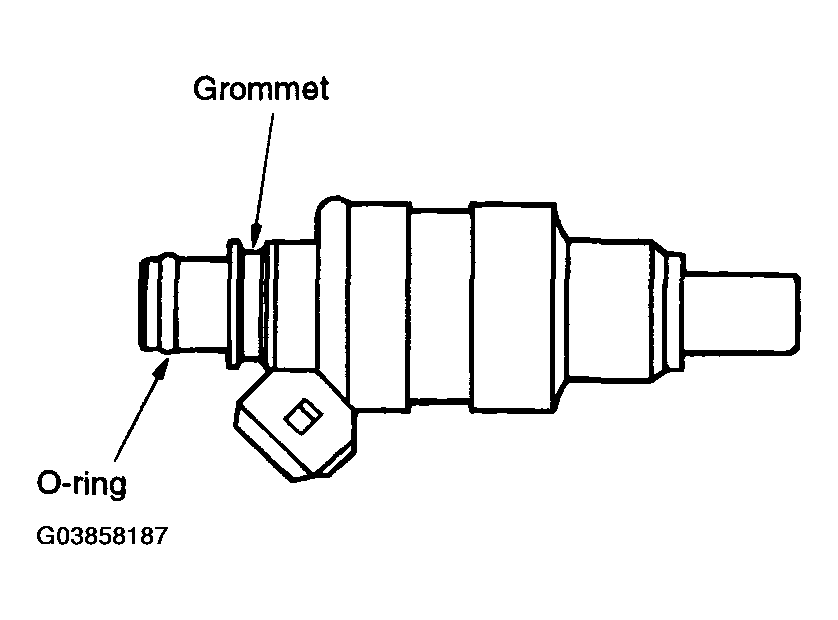

    Fig 1: Installing Grommet And O-Ring To Injector
    G03858187Courtesy of HYUNDAI MOTOR CO.
  3. While turning the injector to the left and right, install it on to the delivery pipe.
  4. Be sure the injector turns smoothly.
    NOTE: If injector does not turn smoothly, the O-ring may be jammed. Remove the injector and re-insert it into the delivery pipe and re-check.

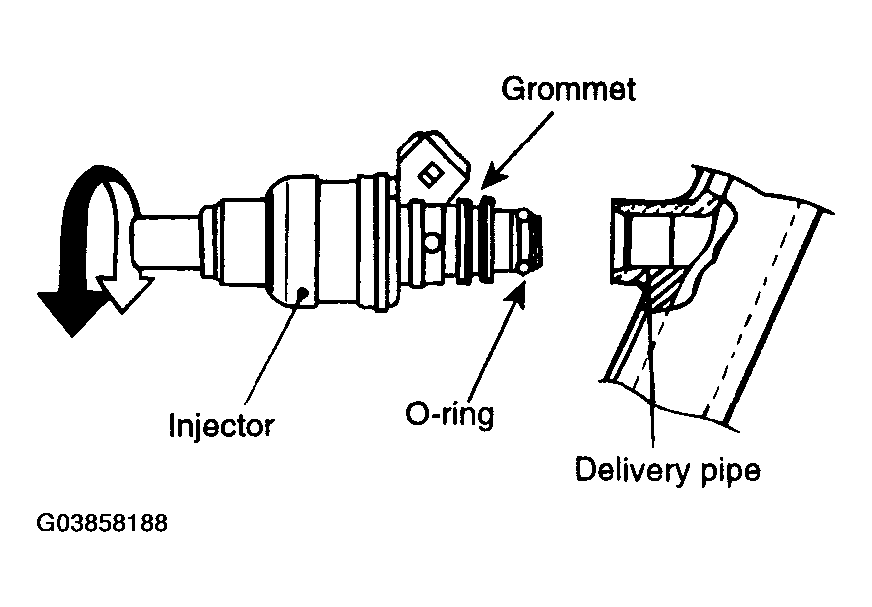

    Fig 2: Installing Injector On Delivery Pipe
    G03858188Courtesy of HYUNDAI MOTOR CO.
