Ignition Failure Sensor: Testing and Inspection

IGNITION FAILURE SENSOR (IFS)

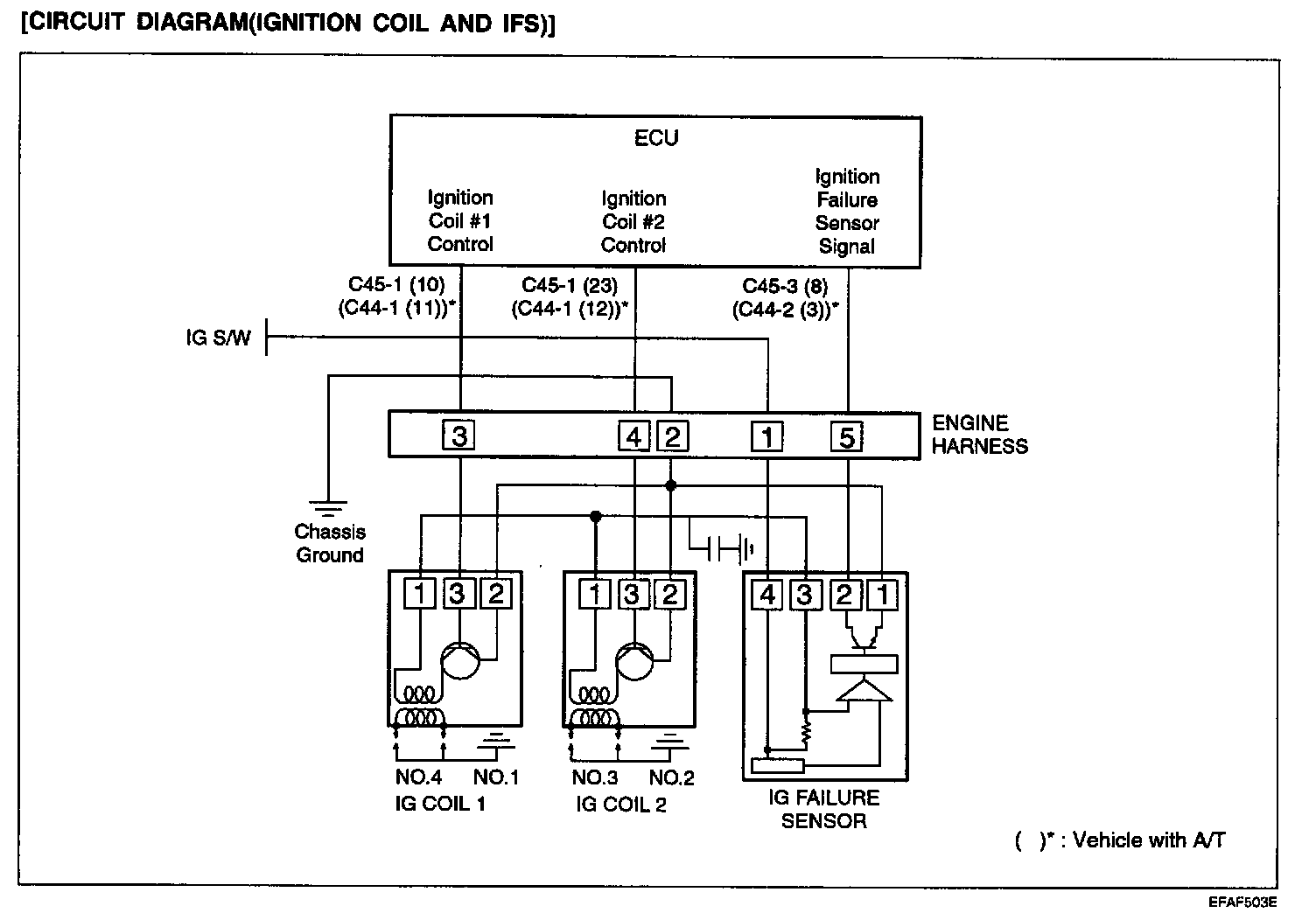

Circuit Diagram (Ignition Coil And IFS):

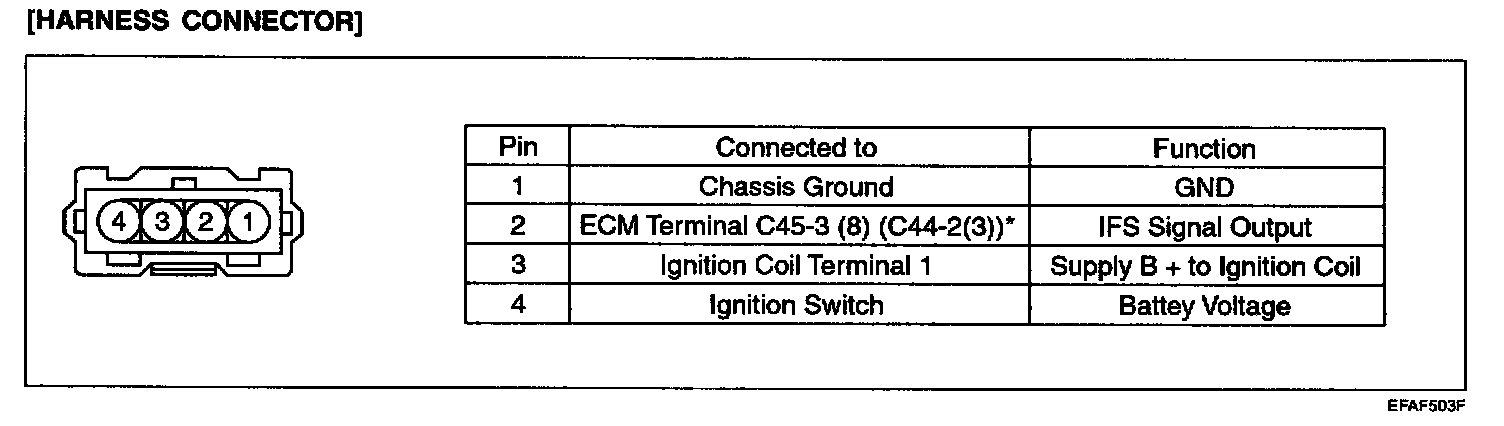

Harness Connector:

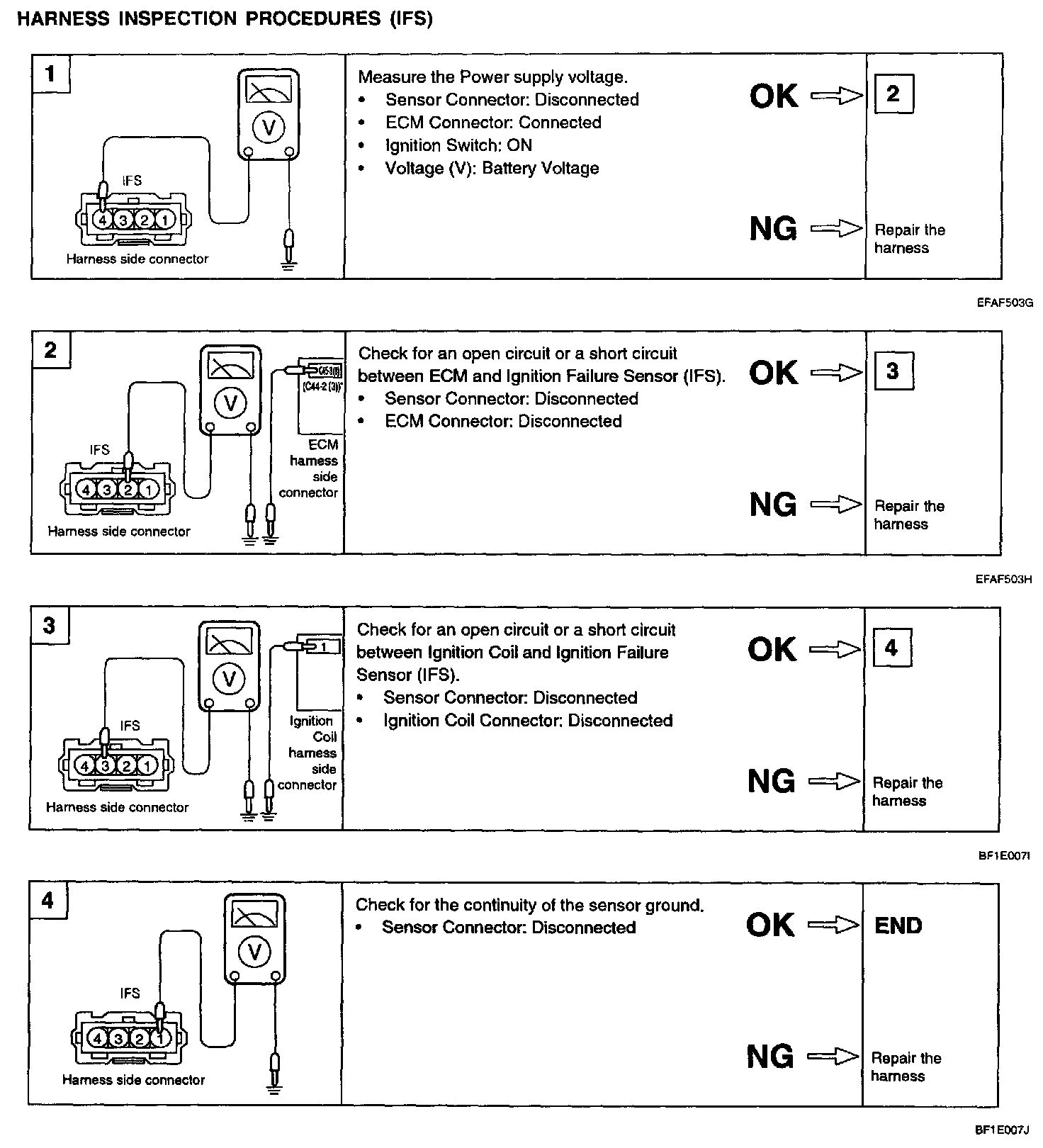

Harness Inspection Procedures (IFS):
