SRS Control Module: Removal

  1. Disconnect the battery negative cable, and wait at least 3 minutes before beginning work.
  2. Disconnect the airbag connectors.
  3. Remove the center console. (Refer to CONSOLE ).
  4. Disconnect the connector from the SRS unit.

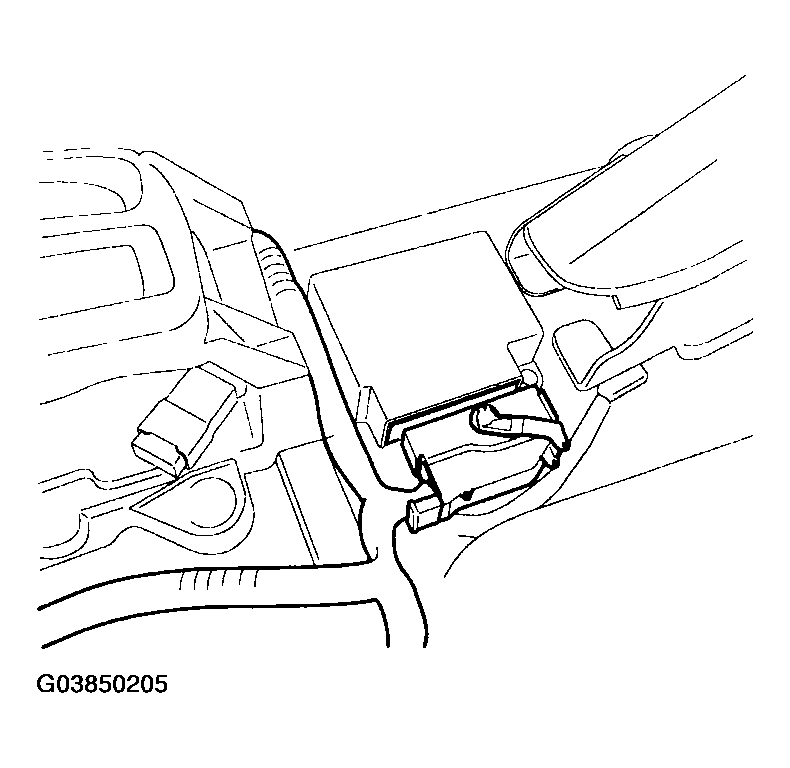

    Fig 1: Disconnecting Connector From SRS Unit
    G03850205Courtesy of HYUNDAI MOTOR CO.
  5. Remove the three bolts from the SRS unit, then pull out the SRS unit from the bracket.

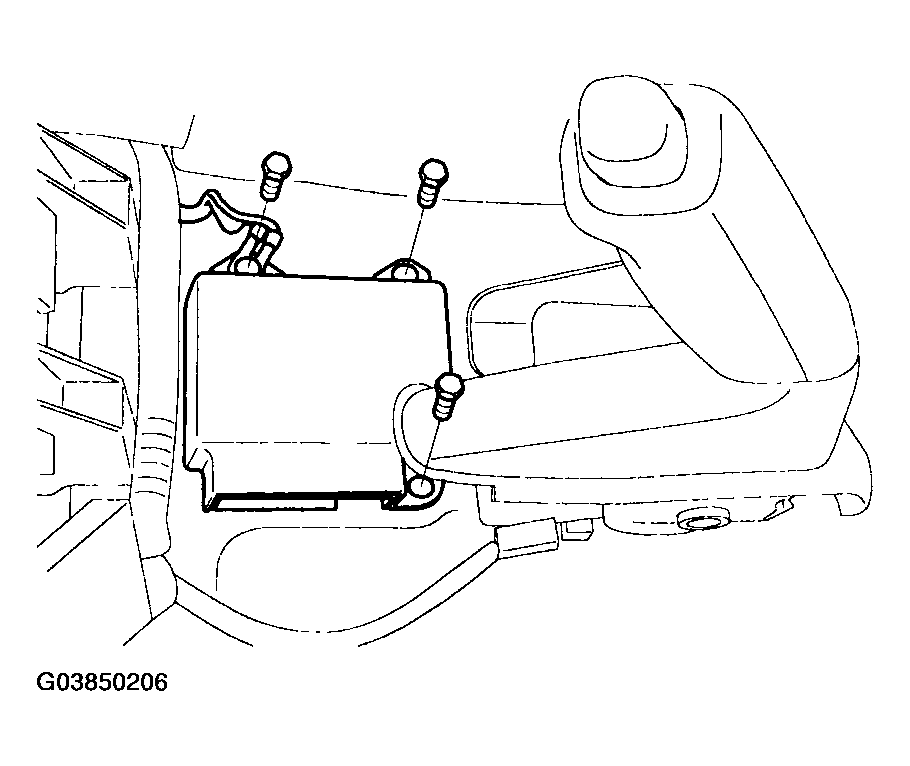

    Fig 2: Removing Three Bolts From SRS Unit
    G03850206Courtesy of HYUNDAI MOTOR CO.
