Repair and Diagnosis (Single Page)
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G6BA - GSL 2.7L)
>>
Gasoline Engine Control System
>>
Engine Control Module (ECM)
>>
3. ECM Terminal Input/Output Signal
>>
[Connector C30-1]
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
[Connector C30-1]

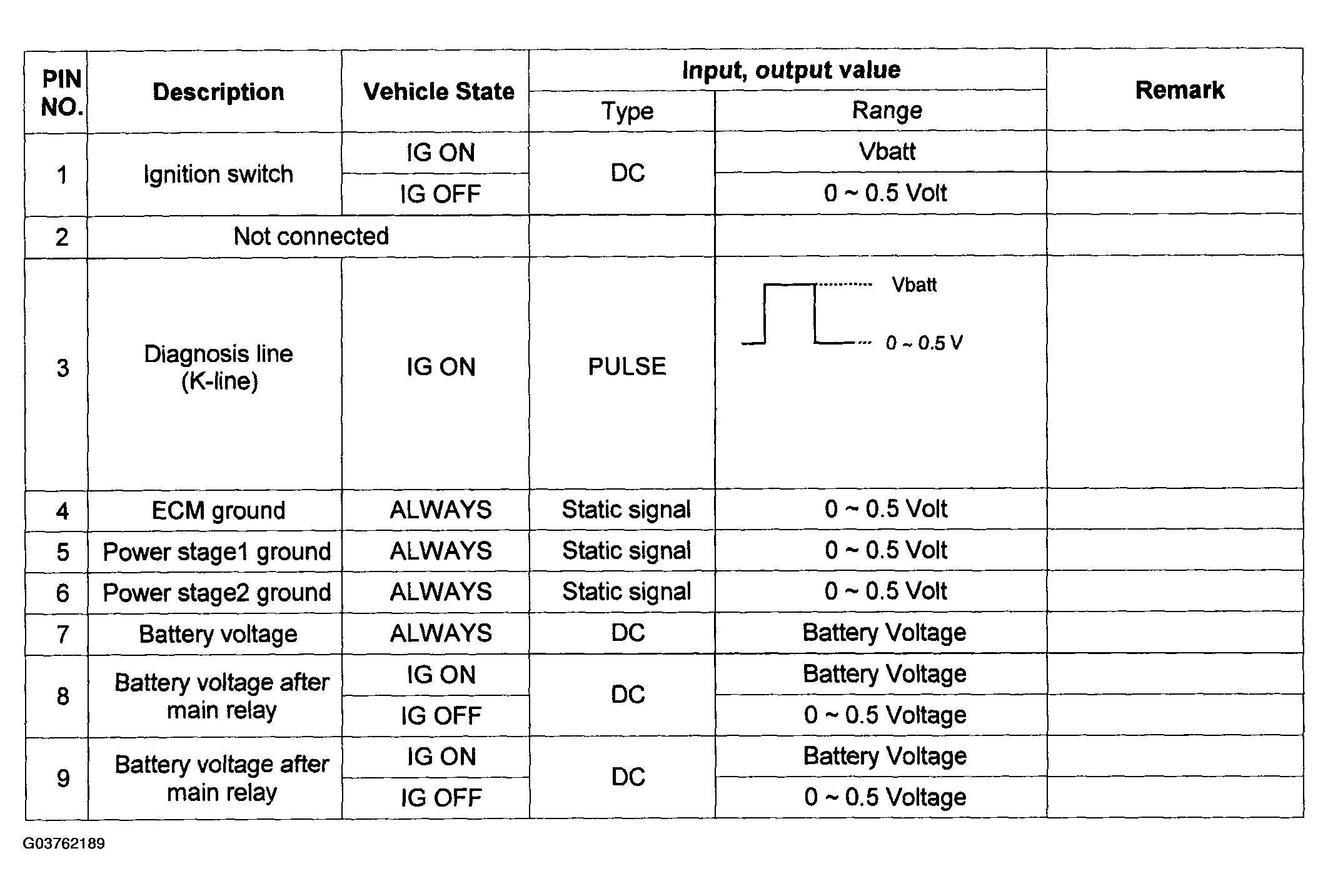

Fig 1: ECM Terminal Input/Output Signal - Connector C30-1
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
