[Connector C30-2]

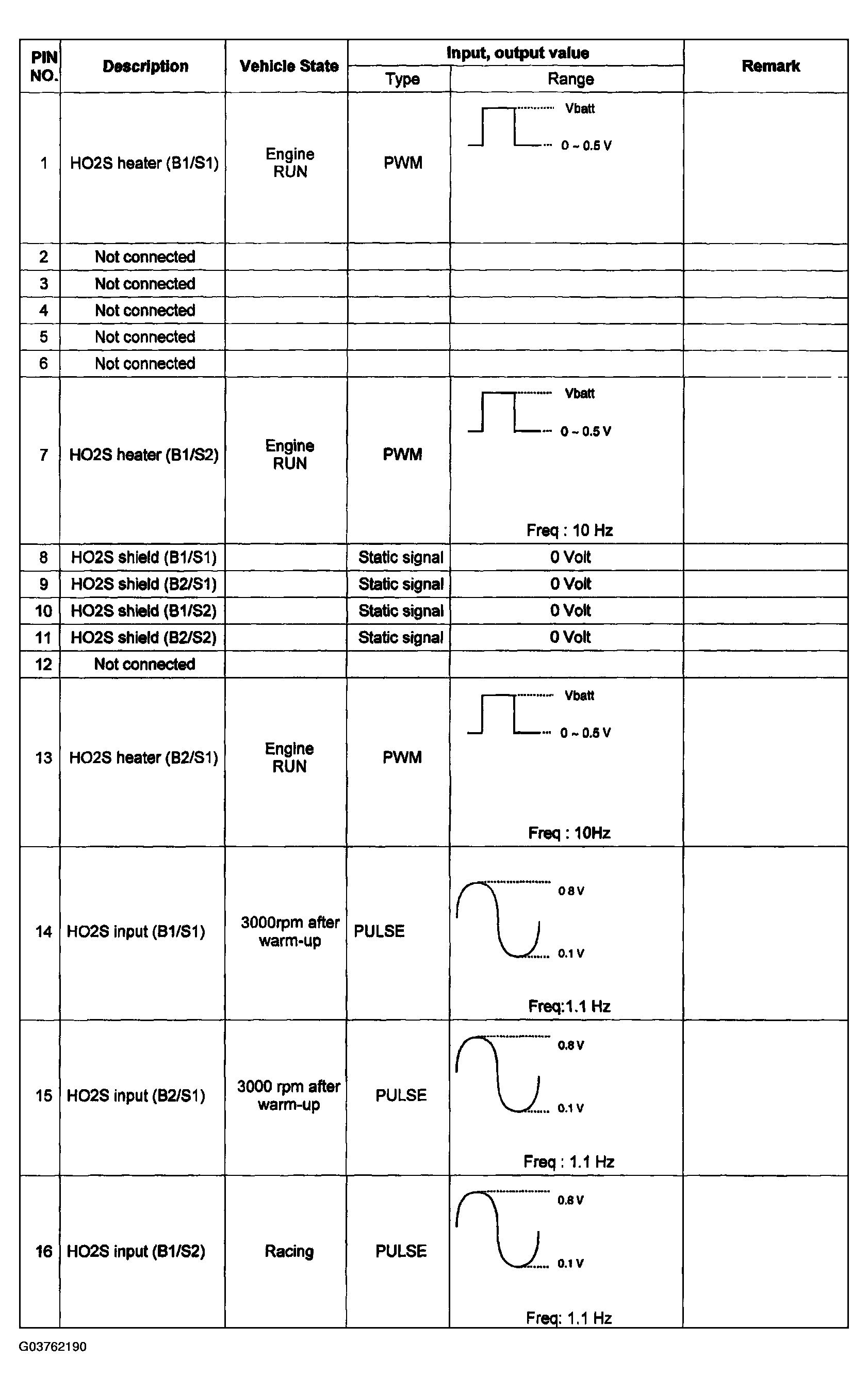

Fig 1: ECM Terminal Input/Output Signal - Connector C30-2 (1 Of 2)
G03762190Courtesy of HYUNDAI MOTOR CO.

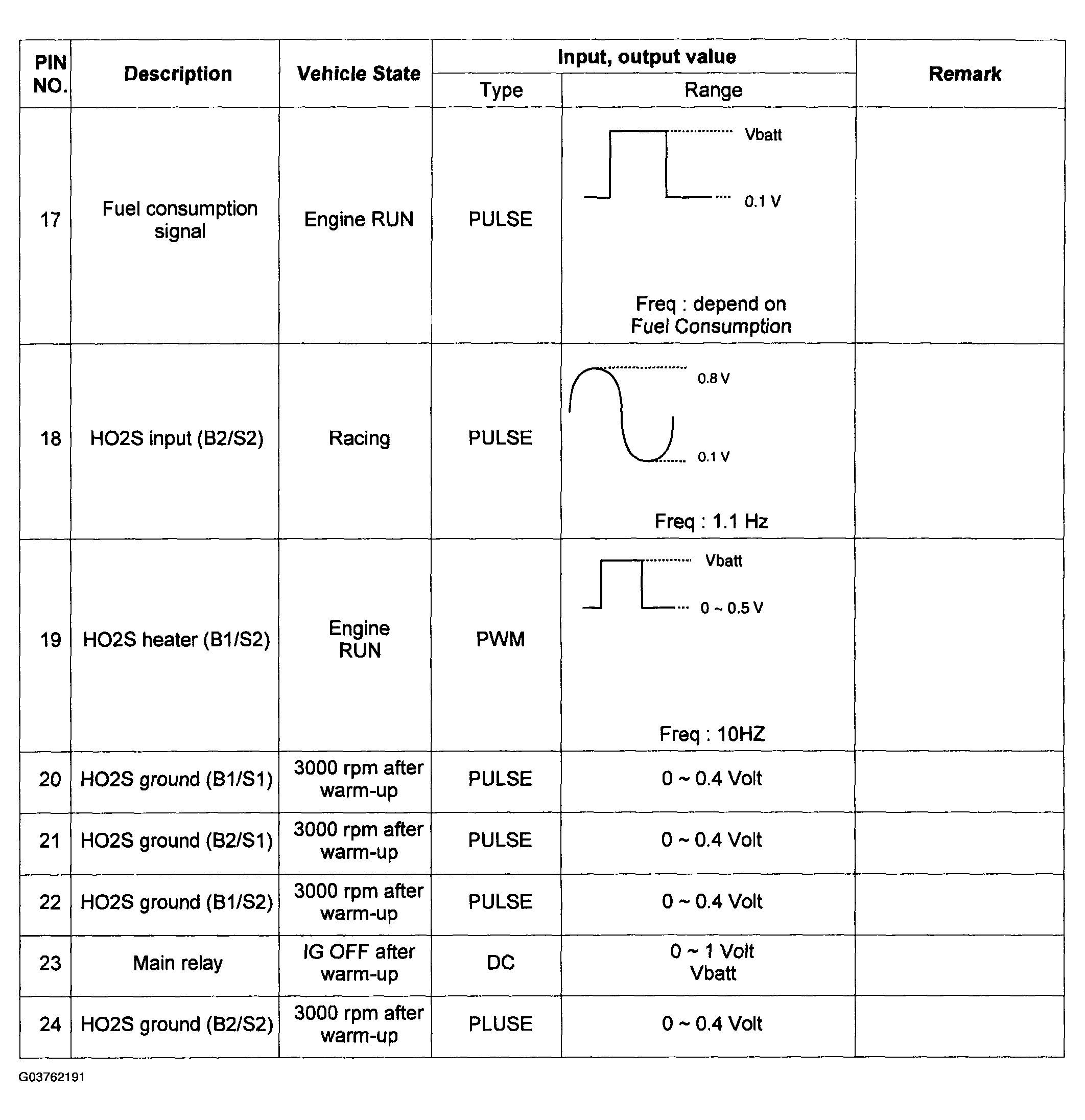

Fig 2: ECM Terminal Input/Output Signal - Connector C30-2 (2 Of 2)
G03762191Courtesy of HYUNDAI MOTOR CO.
