[Connector C30-4]

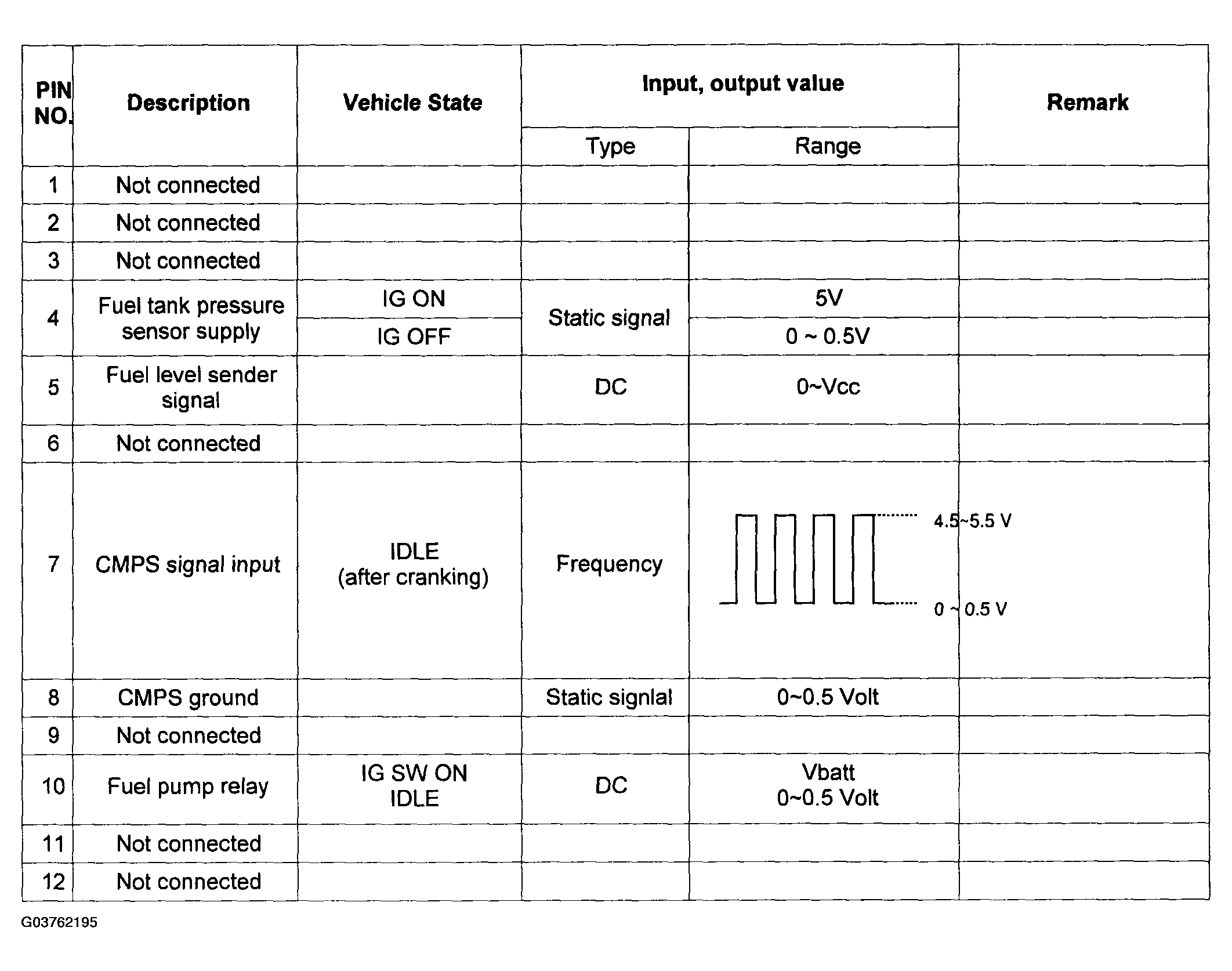

Fig 1: ECM Terminal Input/Output Signal - Connector C30-4 (1 Of 2)
G03762195Courtesy of HYUNDAI MOTOR CO.

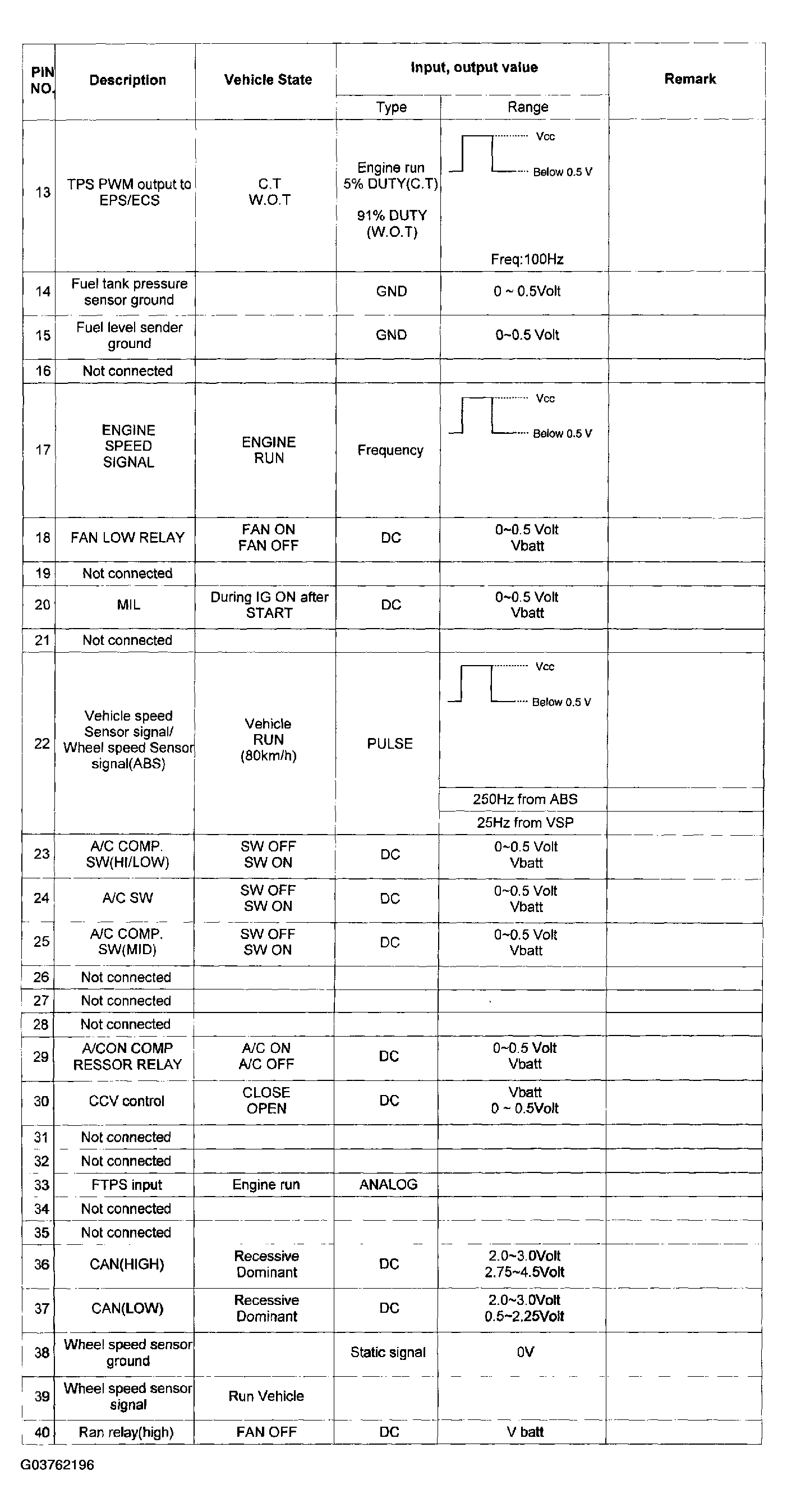

Fig 2: ECM Terminal Input/Output Signal - Connector C30-4 (2 Of 2)
G03762196Courtesy of HYUNDAI MOTOR CO.
