Front Door: Components

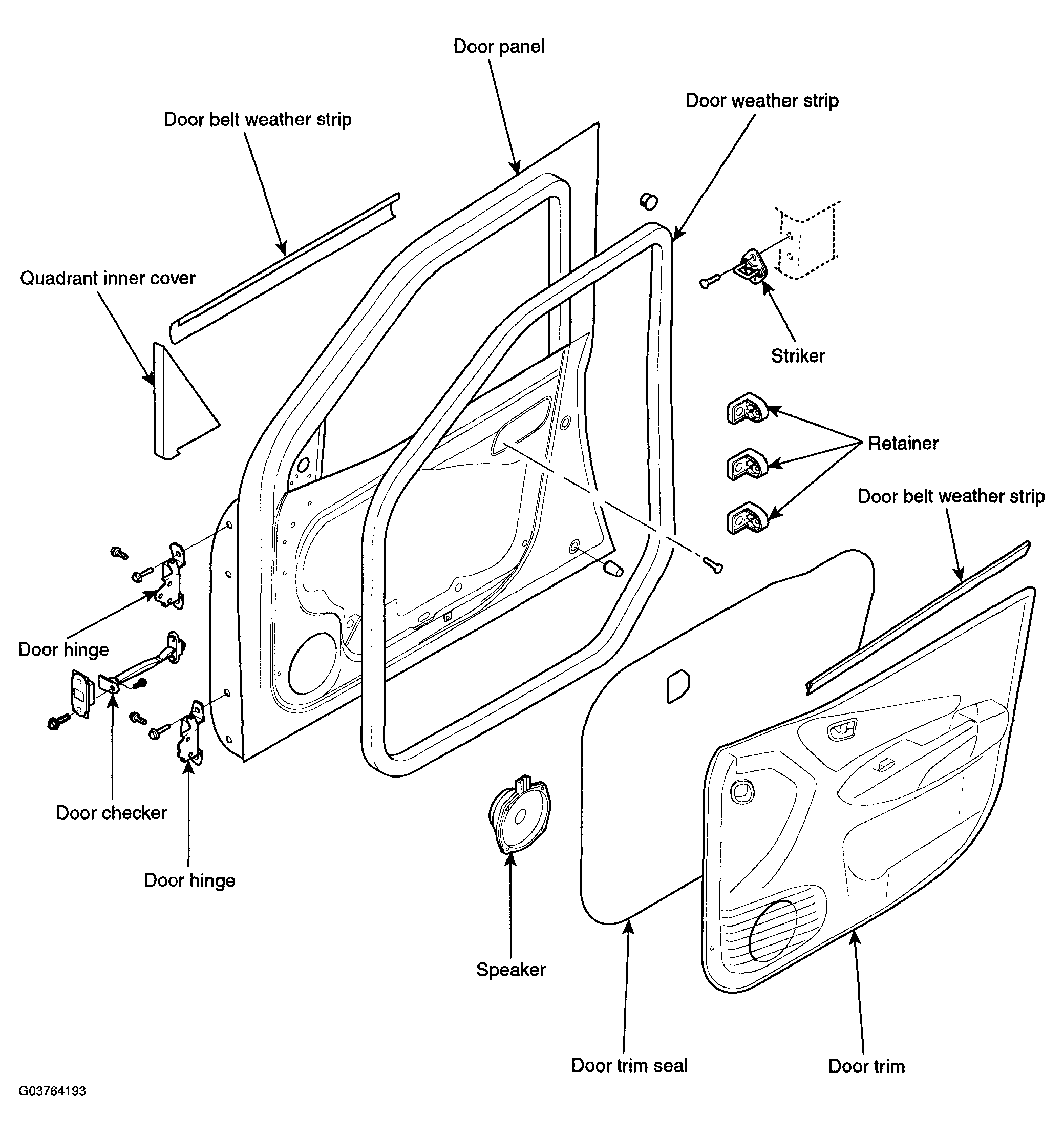

Fig 1: Identifying Front Door Components (1 Of 2)
G03764193Courtesy of HYUNDAI MOTOR CO.

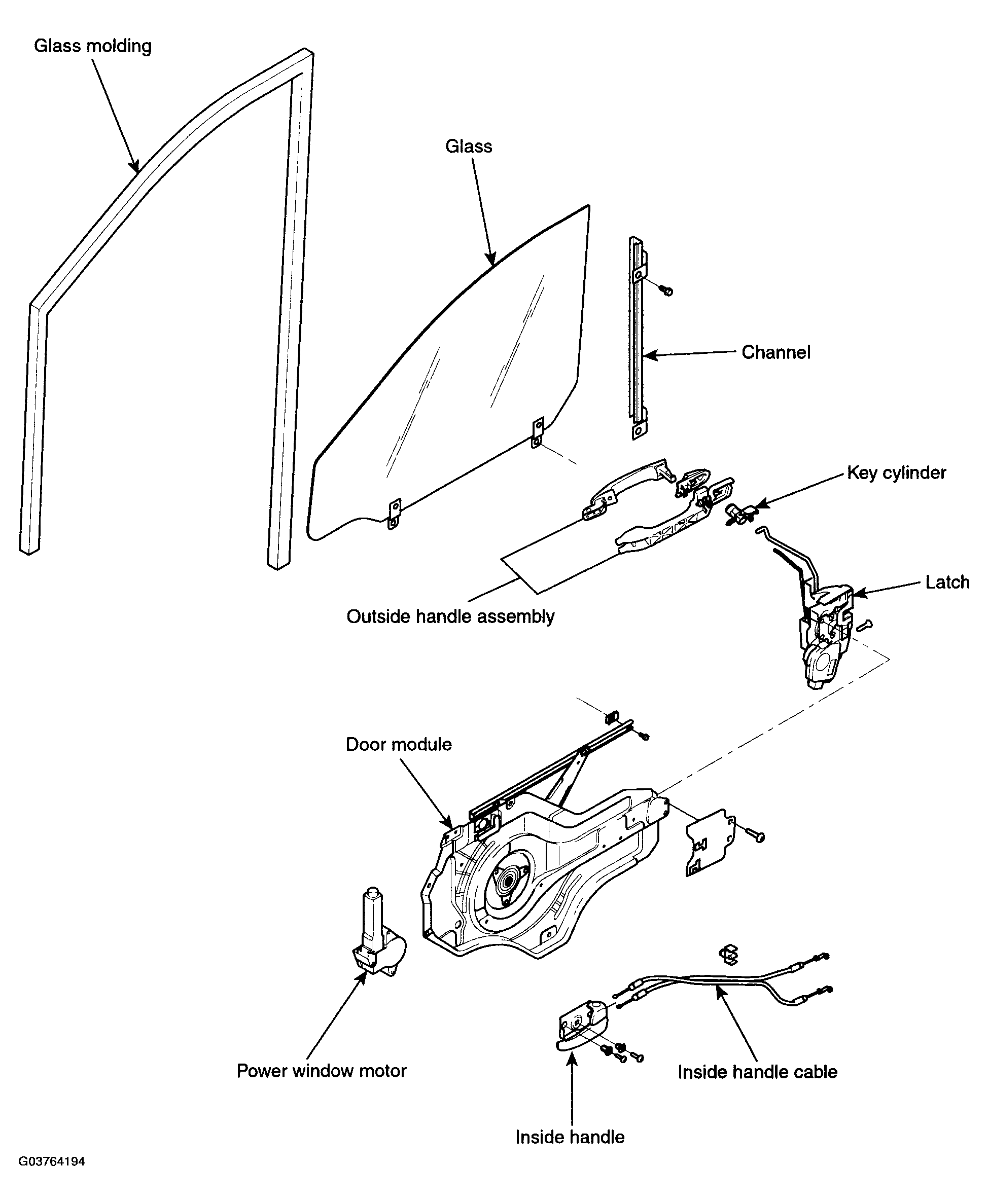

Fig 2: Identifying Front Door Components (2 Of 2)
G03764194Courtesy of HYUNDAI MOTOR CO.
