HECU External Diagram

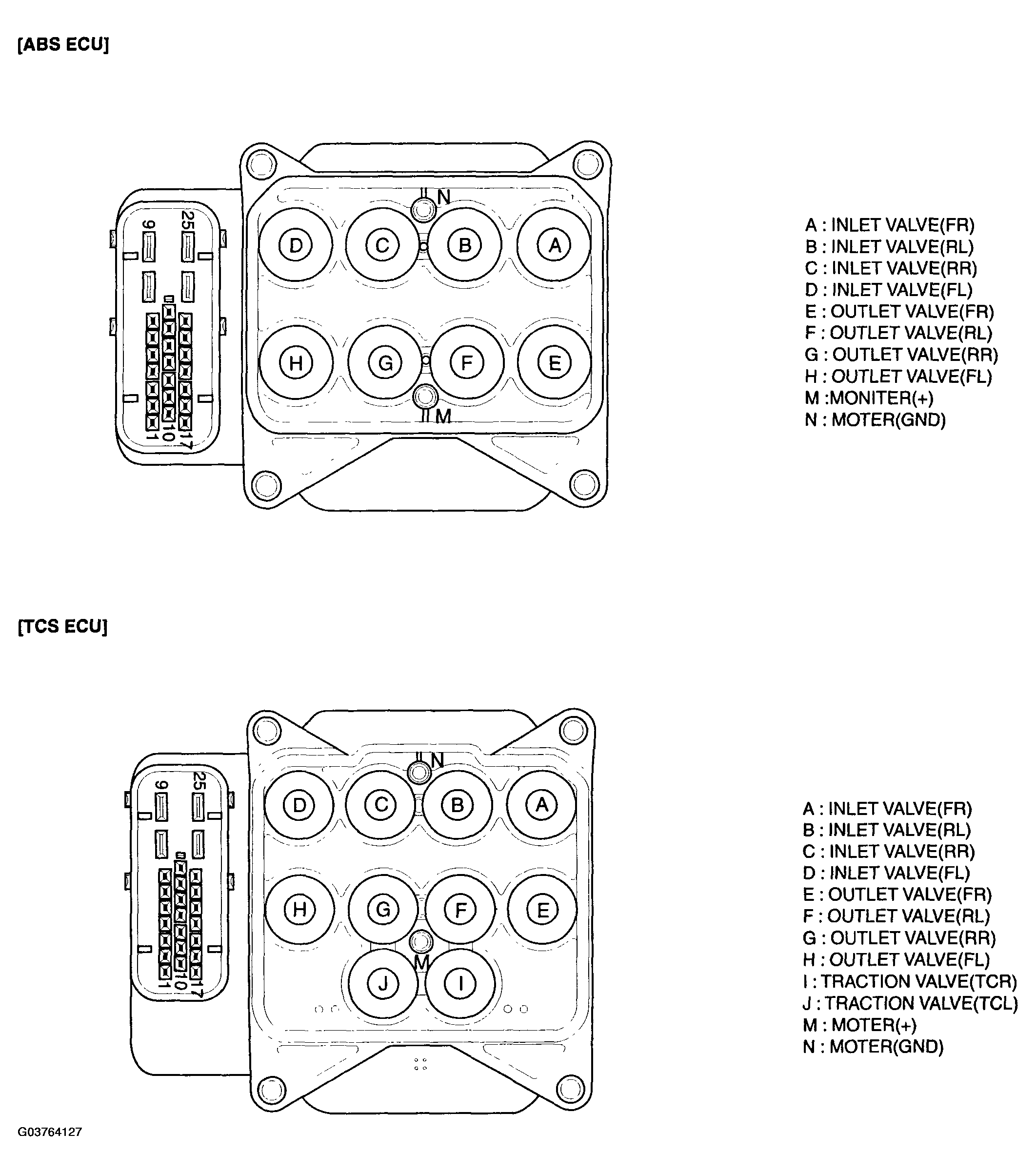

Fig 1: Identifying HECU External Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
