Abs (Anti-Lock Brake System): Components

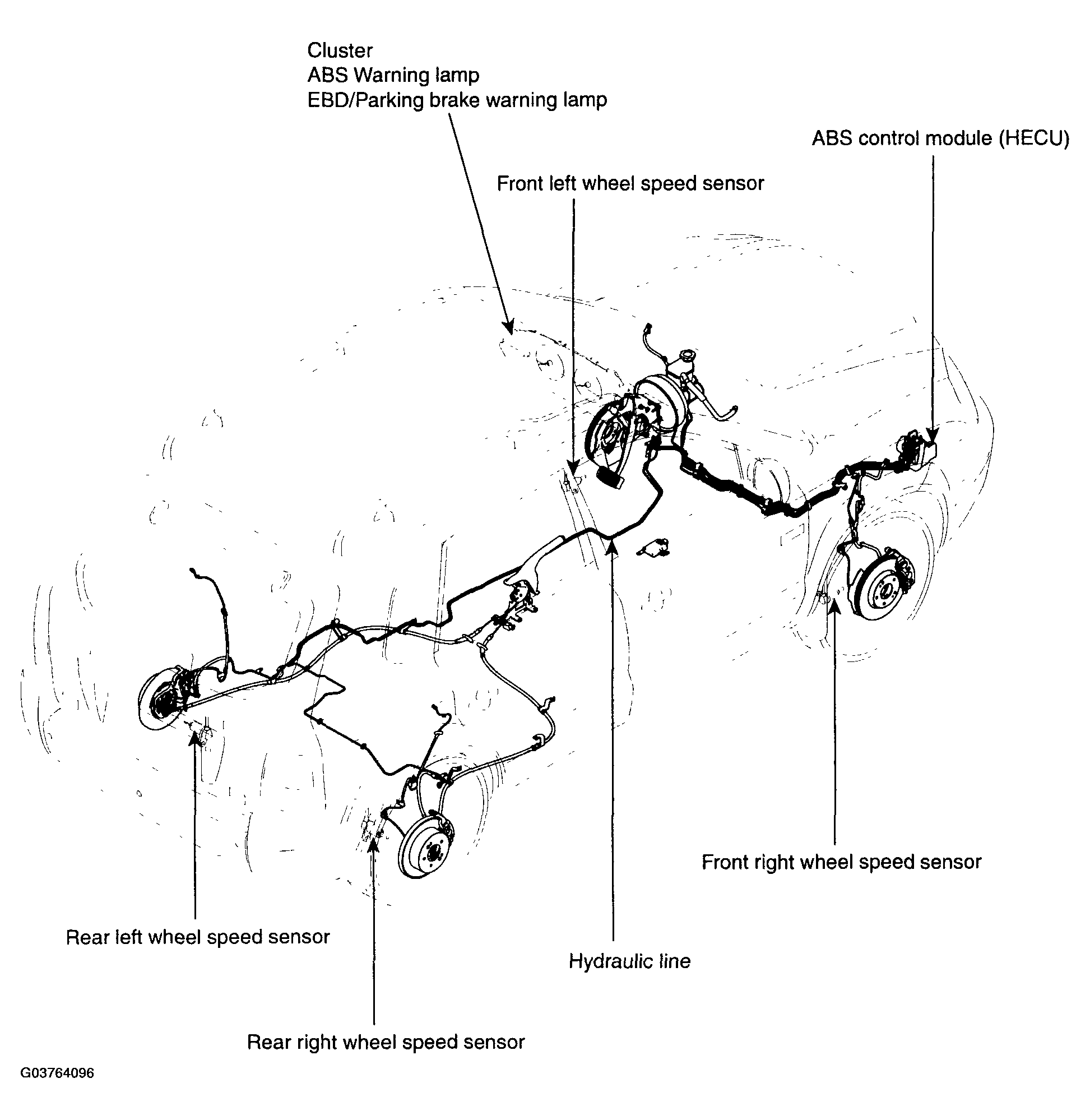

Fig 1: Identifying Anti-Lock Brake System Components
G03764096Courtesy of HYUNDAI MOTOR CO.
