Control Assembly: Service and Repair

HEATER CONTROL UNIT REPLACEMENT

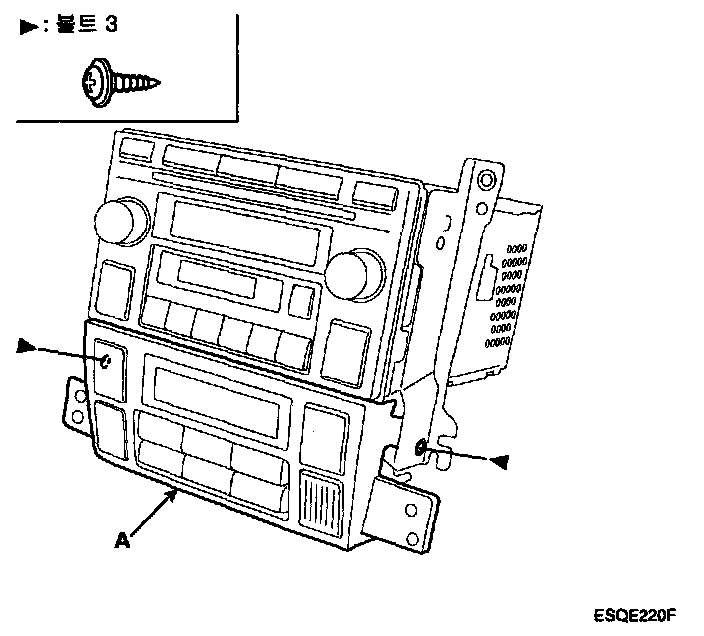

1. Remove the audio assembly.
2. Loosen the screws.
3. Remove the heater control unit (A).






4. Installation is the reverse of removal.

NOTE: Make sure the connector is plugged in properly.
