Transmission Controls - TCM Reflash Adapter

Group: SPECIAL SERVICE TOOLS

Number: 04-09-001

Date: DECEMBER, 2004

Model: 2.7L V6 TUCSON

Subject
2.7L V6 EQUIPPED TUCSON AUTOMATIC TRANSAXLE
CONTROL MODULE (TCM) REFLASH ADAPTOR

DESCRIPTION:








The 2.7L V6 Tucson requires a unique adaptor to reflash the automatic transaxle control module (TCM). The adaptor connects to the Engine Compartment Data Link Connector (DLC) and to the Hi-Scan Pro Reflash Adaptor (see photos # 1 & 2).

To reflash the TCM in a 2.7L equipped Tucson, make the following connections:

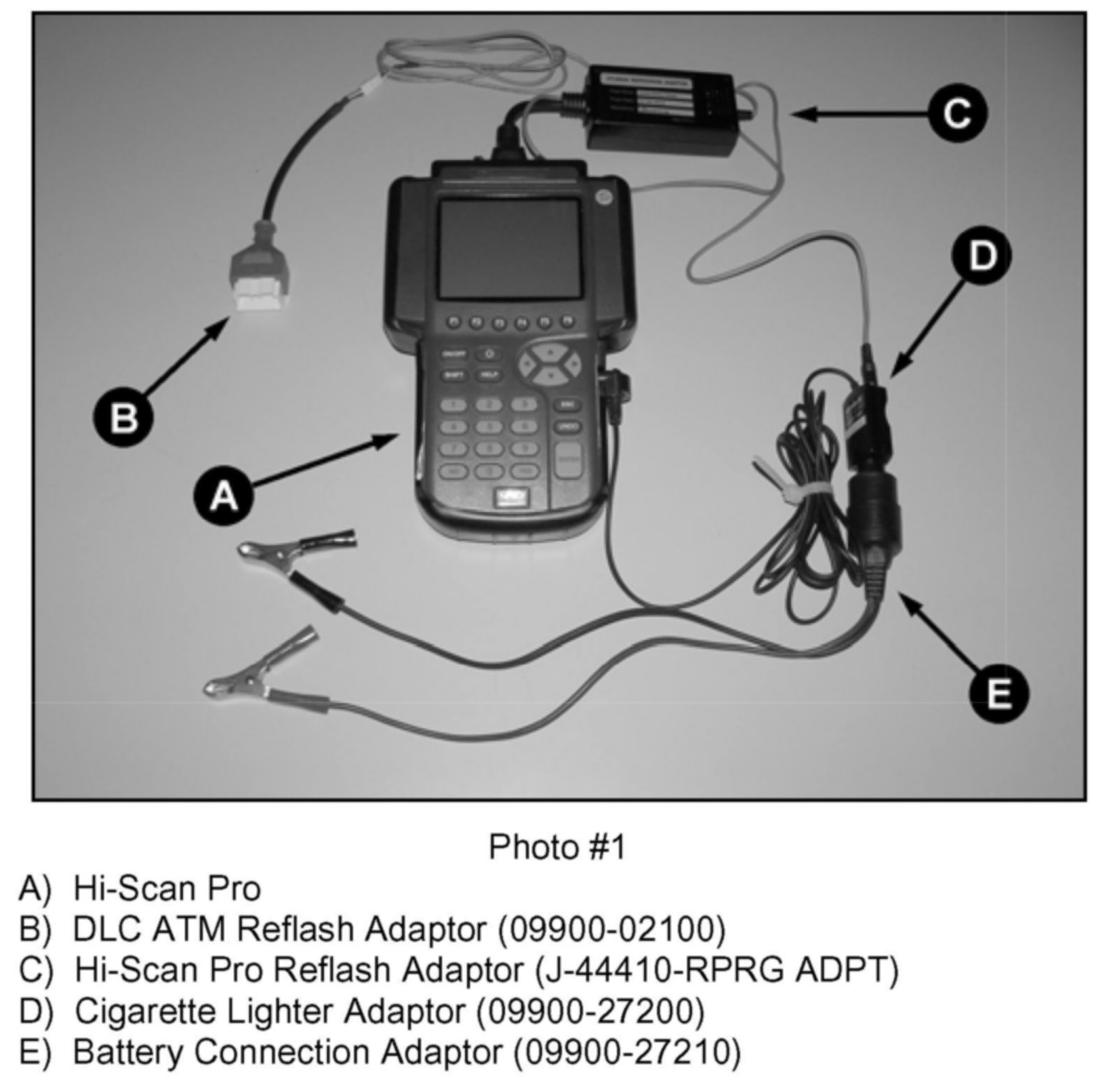

1. Connect all of the components to the Hi-Scan Pro (photo # 1).

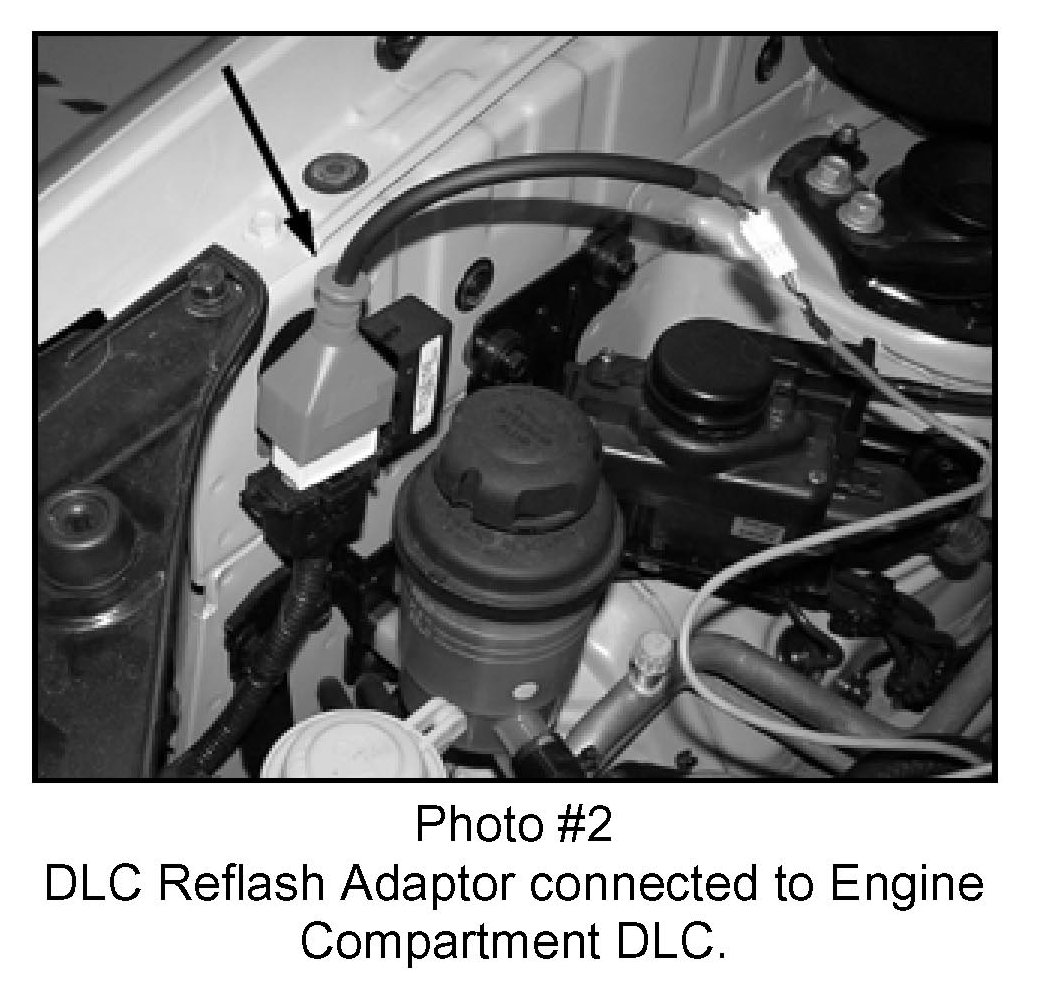

2. Connect the DLC reflash adaptor to the engine compartment DLC (photo # 2).

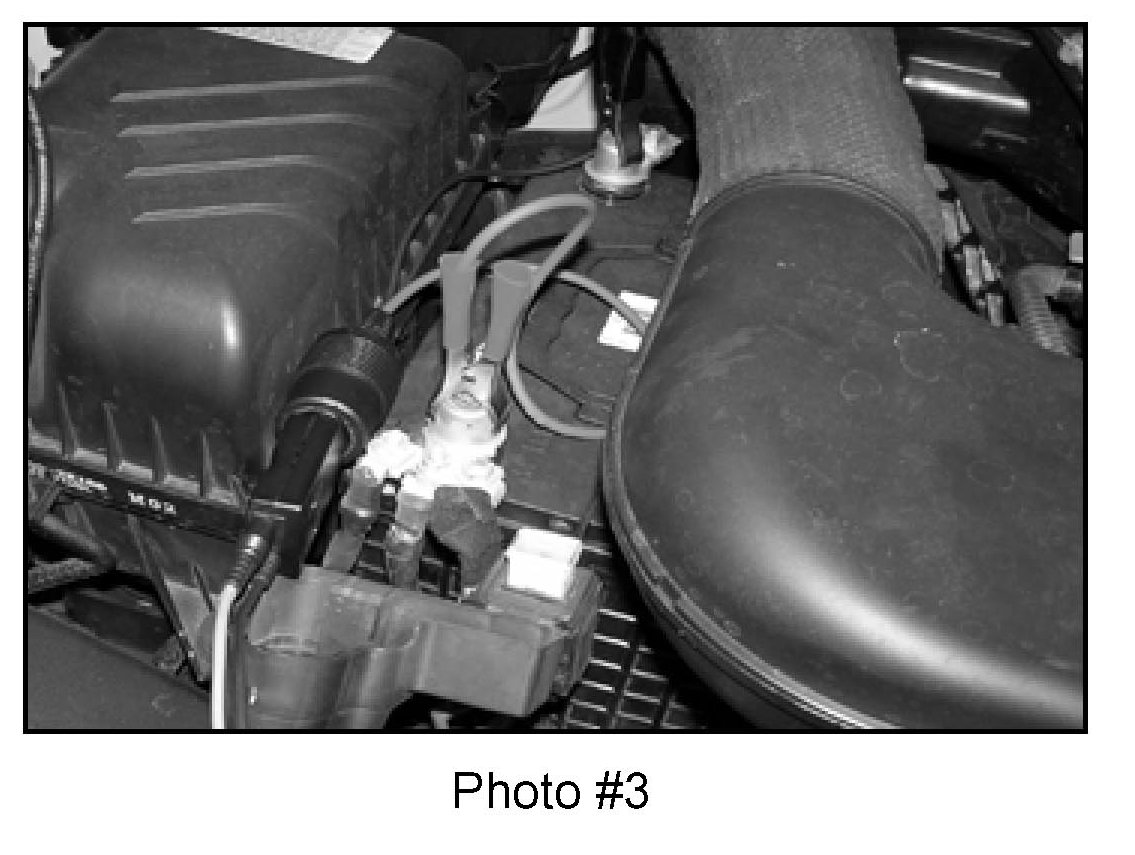

3. Connect the alligator clips on the battery connection adaptor to the vehicle's battery (photo # 3).

4. Perform the ATM reflash by following normal procedures. Be sure not to turn anything off before the reflash program has completed.
