Initial Registration Method

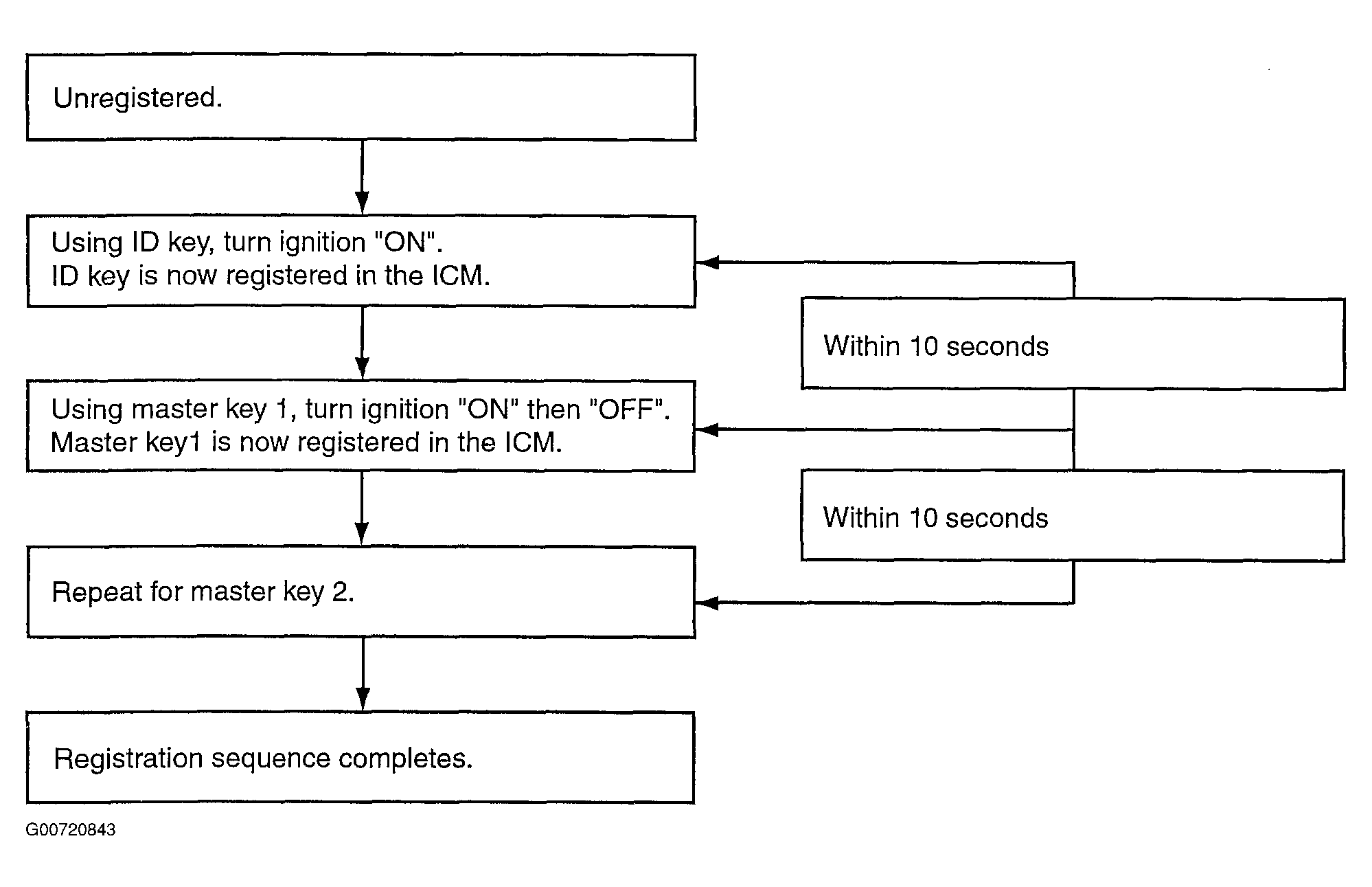

Fig 1: Initial Registration Method Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
