Monitor Scantool Data

  1. Ignition "OFF" & Engine "OFF".
  2. Install Scantool and Ignition "ON" & Engine "ON".
  3. Monitor Intake Air Temperature Sensor parameter on Current data.

    Specification: (Error range is 2~3%)

    TEMPERATURE AND RESISTANCE REFERENCE CHART

    Temperature (°C/°F) -40 (-40°F) -30 (-22°F) -20 (-4°F) 0 (32°F) 20 (68°F) 80 (176°F) 100 (212° F) 110 (230° F) 120 (248° F)
    Resistance (kΩ) 45.3 25.6 15.1 5.8 2.5 0.33 0.19 0.16 0.13
    Voltage (V) 4.48 4.34 4.12 3.46 2.57 0.64 0.39 0.34 0.27

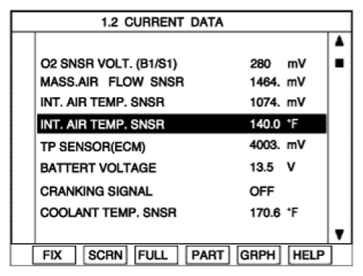

    Fig 1: Mass Air Flow Sensor Current Data
    G07374976

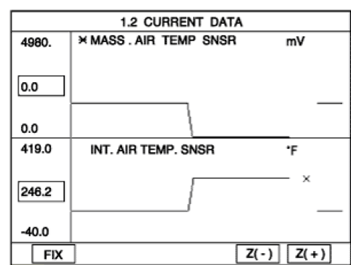

    Fig 2: Screen Display - IAT Sensor Data At Open
    G07374977

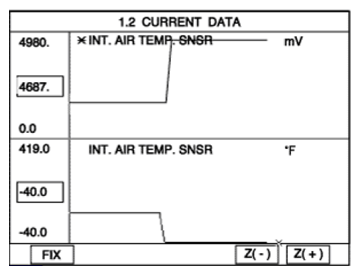

    Fig 3: Screen Display - IAT Sensor Data At Short
    G07374978
  4. Is Current data displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
