Component Inspection

  1. Check TPS resistance.
    1. Disconnect TPS connector and measure resistance between terminals 1 and 3 of the TPS connector.

      Specification: Approx. 3.5~6.5 kΩ (with throttle valve fully closed) at 20°C (68°F)

    2. With still TPS connector disconnected, measure resistance between terminals 2 and 3 of the TPS connector.
    3. Operate the throttle valve slowly from the idle position to the full open position and verify that the TPS2's resistance changes smoothly in inverse proportion with the throttle valve opening angle.

      Specification: Resistance changes smoothly in proportion with the throttle valve opening angle.

    4. Is the measured resistance within specification?

      YES

      • Go to " 2 Check PCM" as below.

      NO

      • Substitute with a known - good TPS and check for proper operation.

        If the problem is corrected, replace TPS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  2. Check PCM.
    1. Ignition "OFF" & Engine "OFF".
    2. Connect scantool and Ignition "ON".
    3. Select simulation function on scantool.
    4. Simulate voltage at terminal "2" of TPS 1 signal connector.

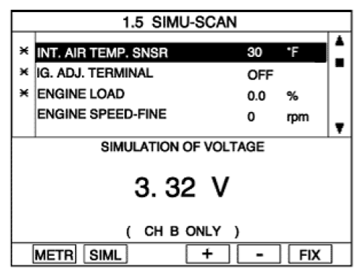

      Fig 1: Screen Display - TPS Voltage Simulation
      G07375324
    5. Is the TPS signal value changed according to simulation voltage?

      YES

      • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector. Thoroughly check connector looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

      NO

      • Substitute with a known - good PCM and check for proper operation.

        If the problem is corrected, replace PCM and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

        NOTE: Procedure of ETS Initialization:
        1. Erase the trouble codes on PCM.
        2. Turn the ignition key on less than 1 second and turn it off (Do not start the engine).
        3. Turn the ignition key off and keep this condition until the main relay is turned off (It will takes 10 second).
        4. Turn ignition key on more than 1 second to record the throttle motor position on the EEPROM.
