Special Tools

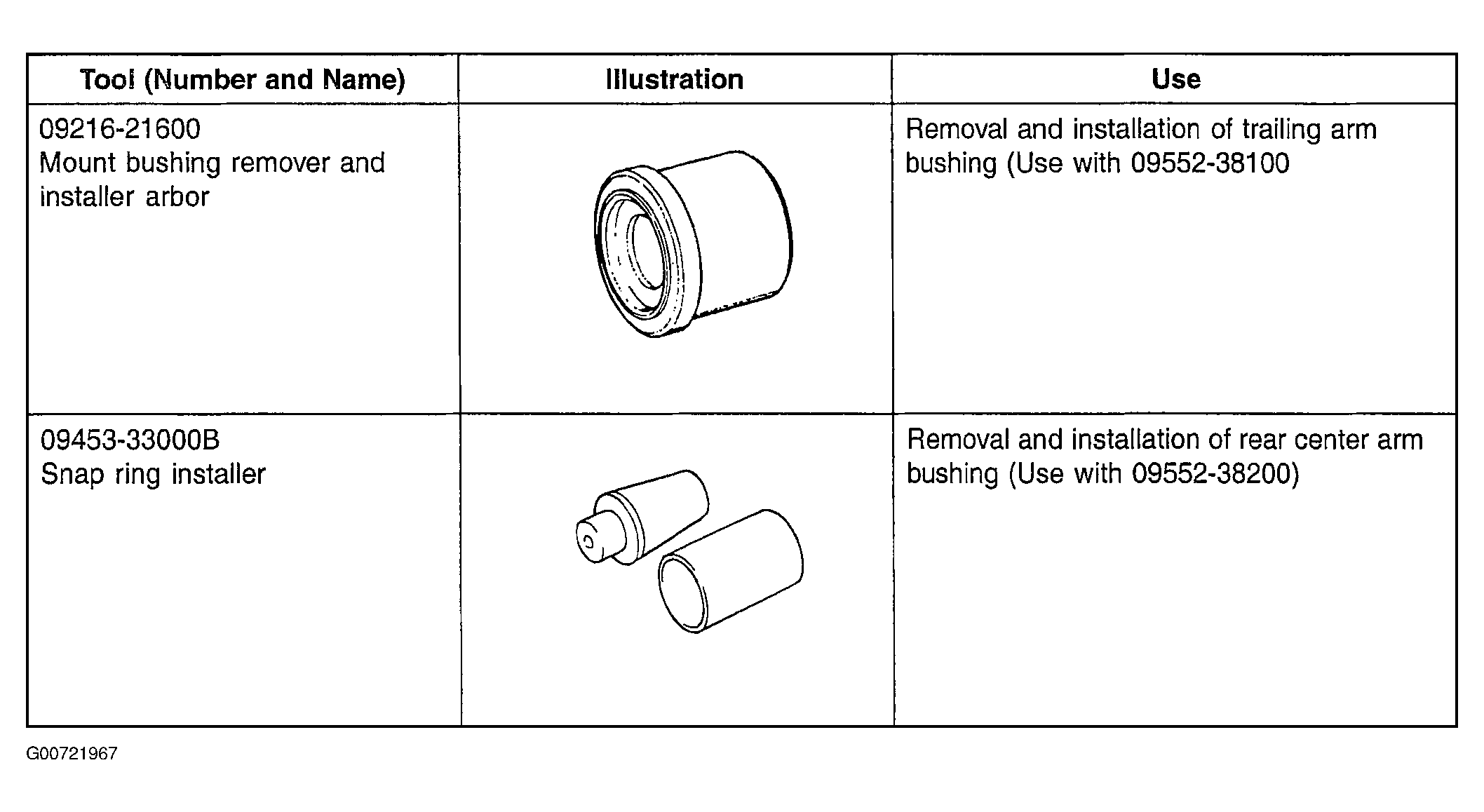

Fig 1: Special Tools (1 Of 4)
G00721967Courtesy of HYUNDAI MOTOR CO.
Fig 2: Special Tools (2 Of 4)
G00721968Courtesy of HYUNDAI MOTOR CO.
Fig 3: Special Tools (3 Of 4)
G00721969Courtesy of HYUNDAI MOTOR CO.

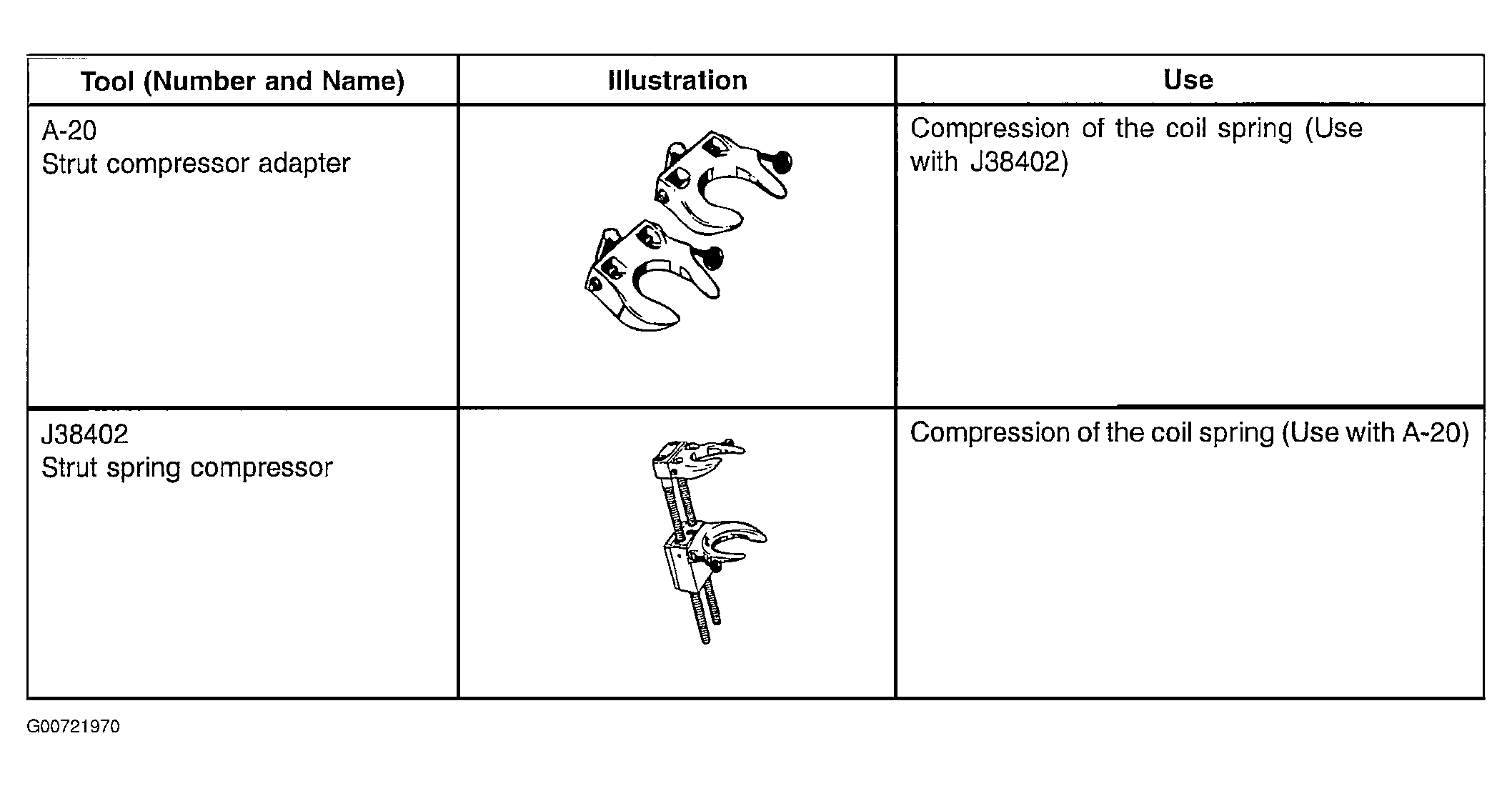

Fig 4: Special Tools (4 Of 4)
G00721970Courtesy of HYUNDAI MOTOR CO.
