Front Suspension System: Specifications: Lubricant

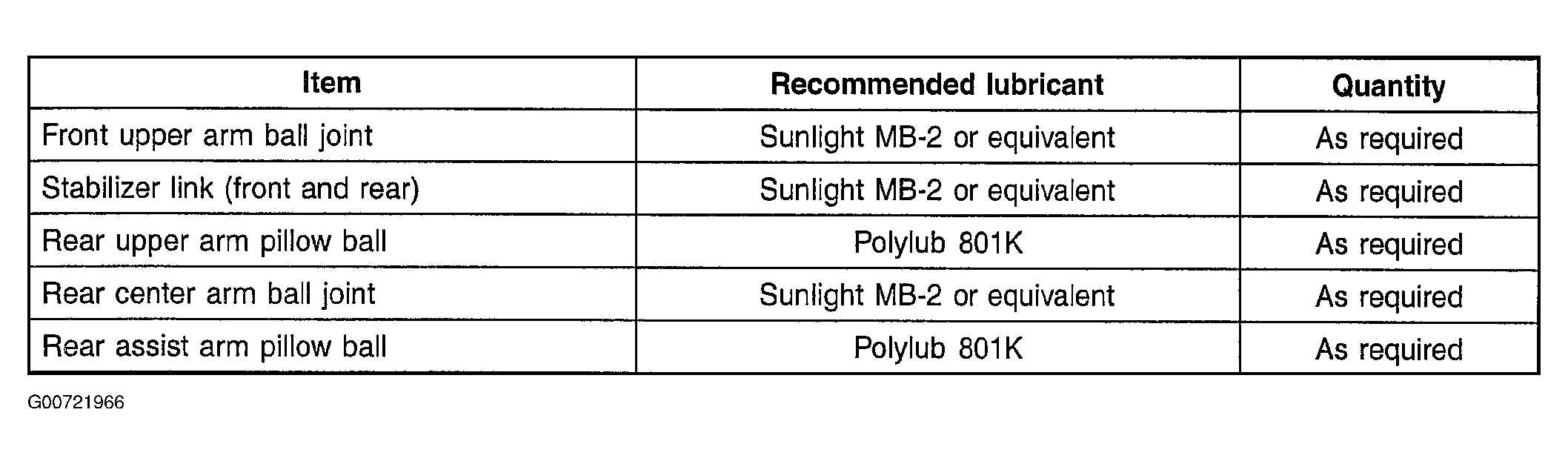

Fig 1: Lubrication Specifications

G00721966

Courtesy of HYUNDAI MOTOR CO.
