Automatic Transaxle: Component(1): Notes

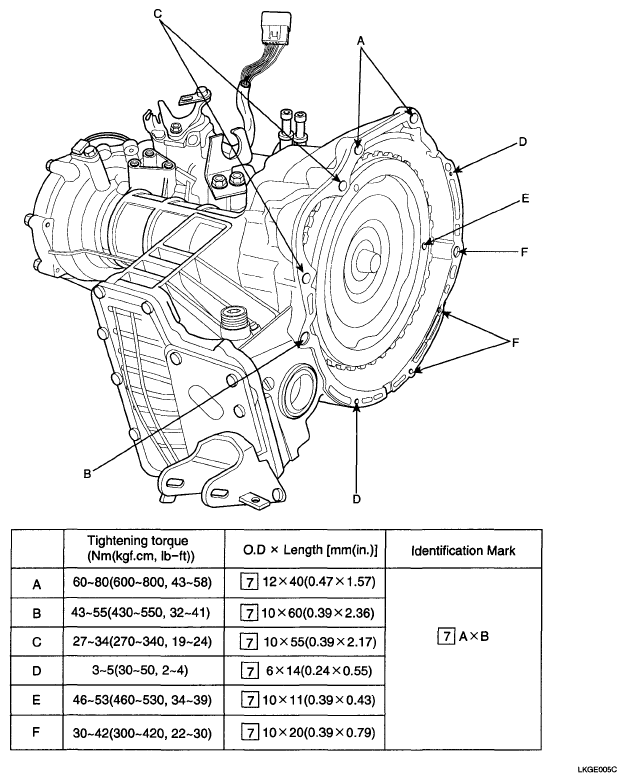

Fig 1: Automatic Transaxle Replacement Components With Torque Specifications (1 Of 6)
G04802147Courtesy of HYUNDAI MOTOR CO.
