Manual Valve

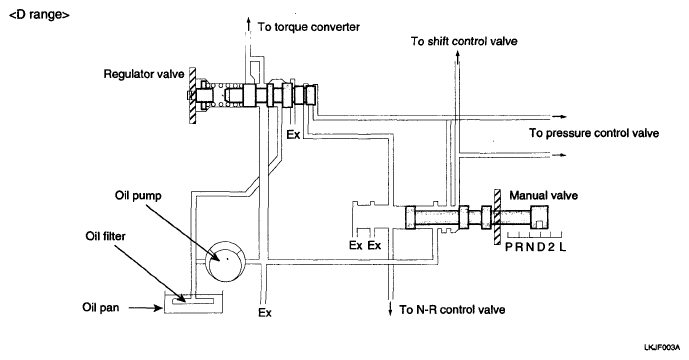

Fig 1: System Diagram Manual Valve - D Range
G04802032Courtesy of HYUNDAI MOTOR CO.
Fig 2: System Diagram Manual Valve - P Range
G04802033Courtesy of HYUNDAI MOTOR CO.
Fig 3: System Diagram Manual Valve - N Range
G04802034Courtesy of HYUNDAI MOTOR CO.
