Data Link Connector: Locations

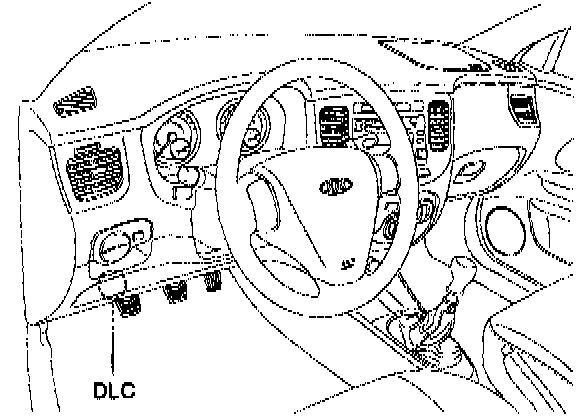

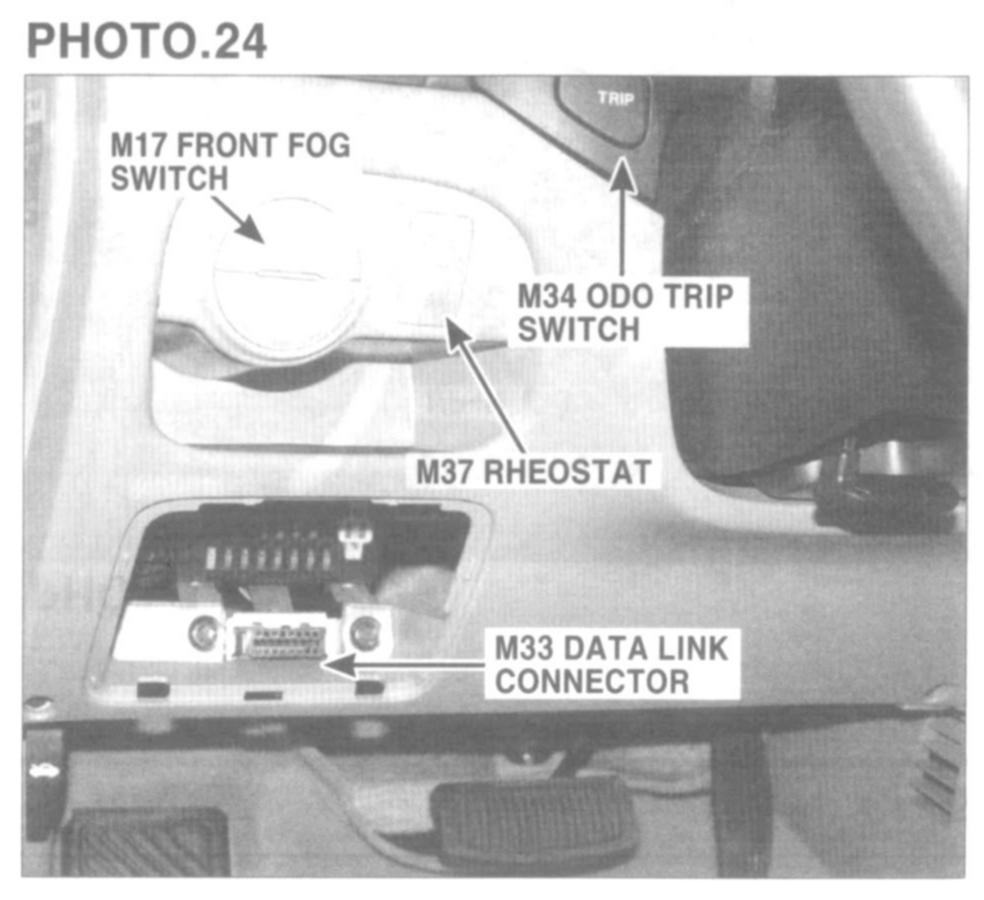

20. Data Link Connector (16 Pin):

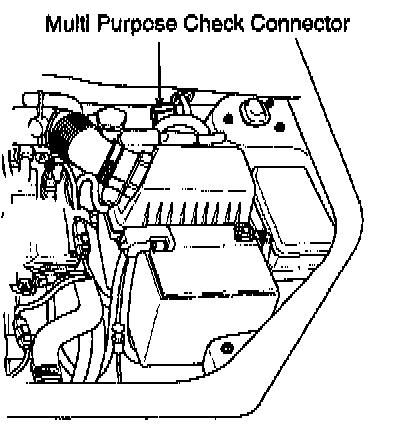

19. Multi Purpose Check Connector (20 Pin):



Engine Overview:
