Body Control Module: Locations

Body Control Module

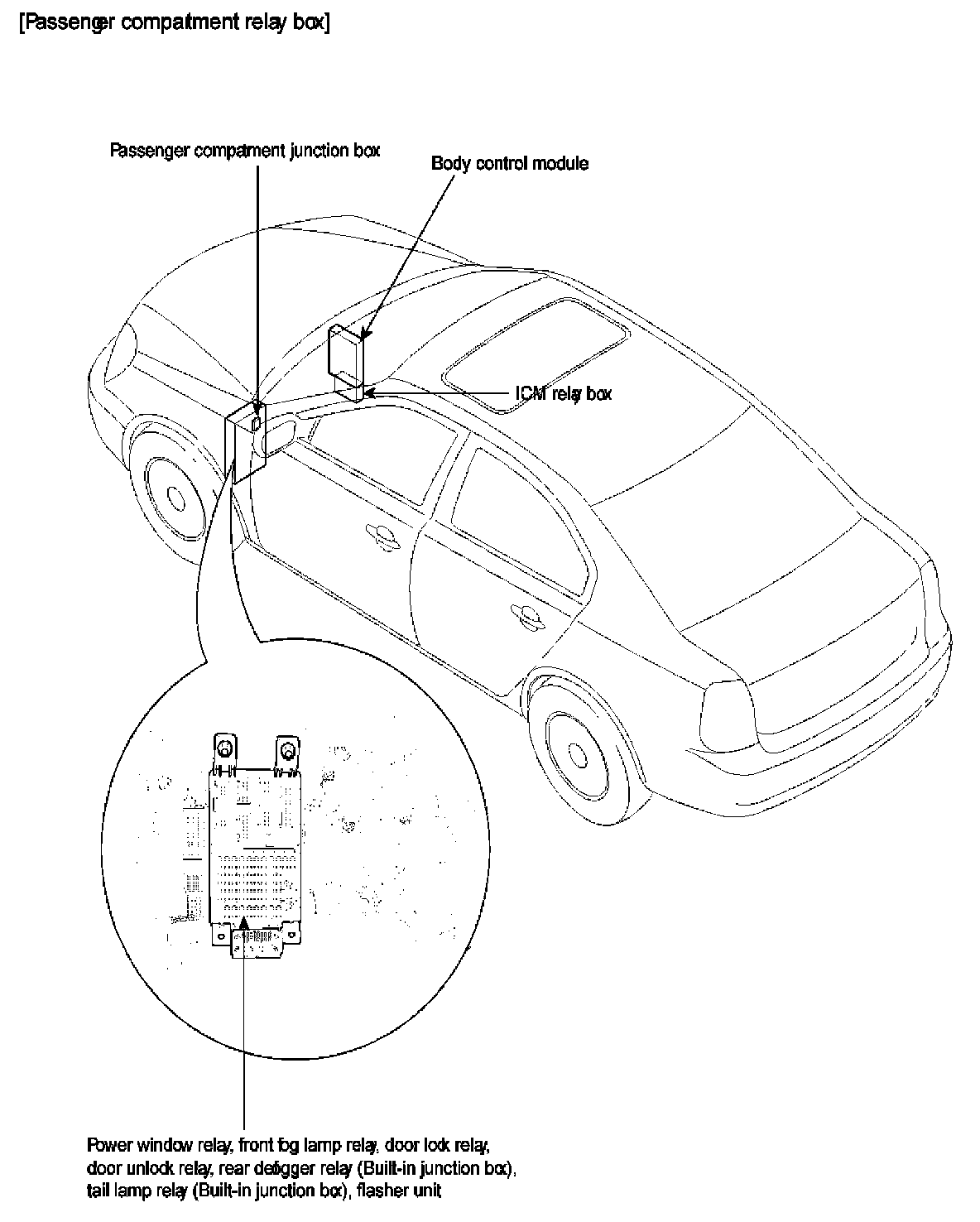

Fuses And Relays Component Location - Passenger Compartment Relay Box:

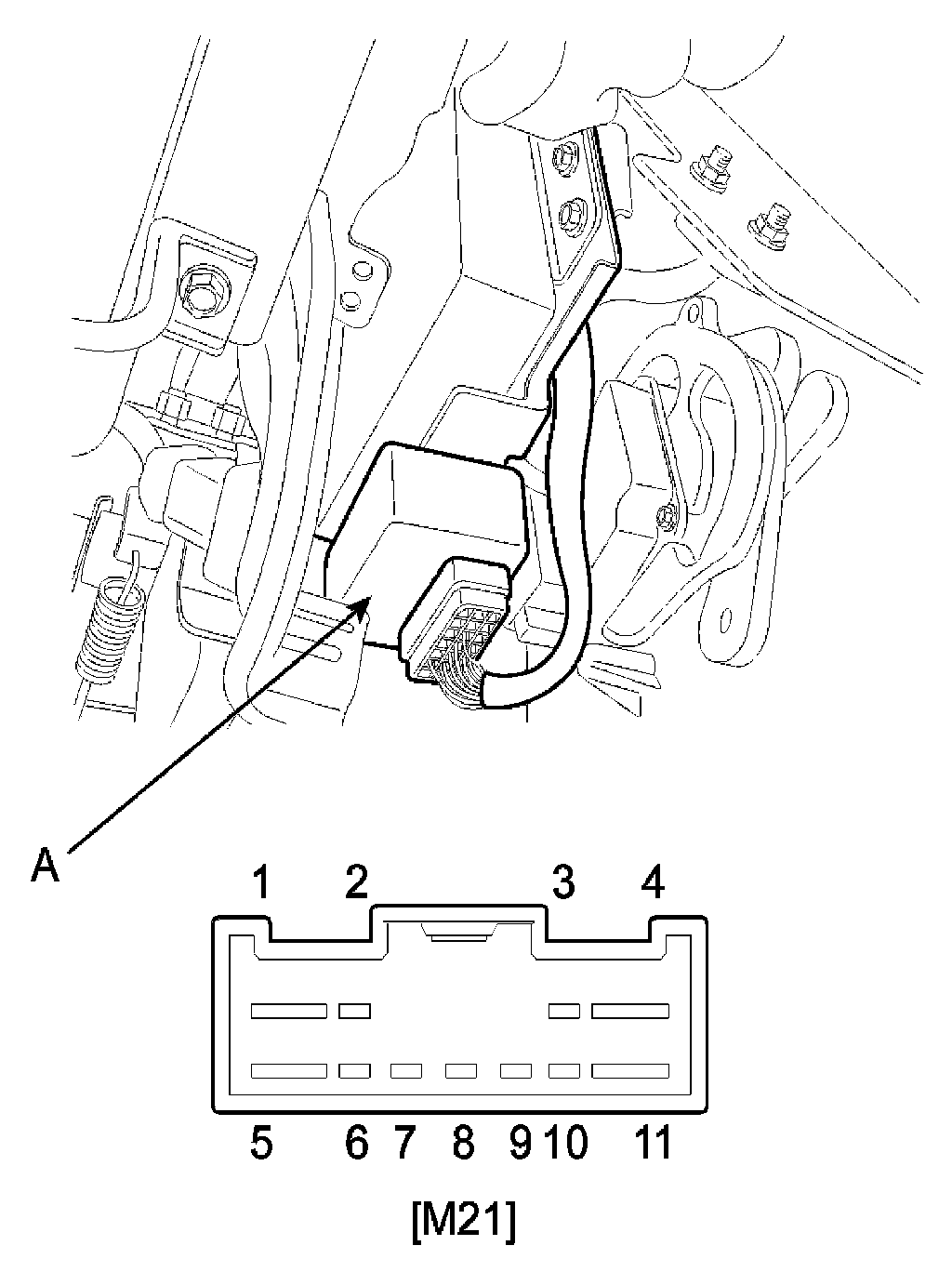

The body control module is installed below the ICM (Integrated Circuit Module) as shown.
