Floor Console Replacement

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the front seat (See REPLACEMENT ).
After disconnecting the console switch (A), remove the connector.

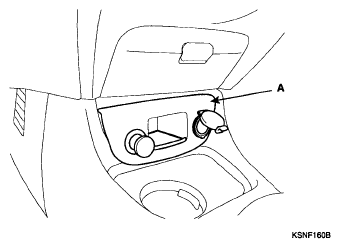

Fig 1: Locating Console Switch
Courtesy of HYUNDAI MOTOR CO.
Remove the parking brake cover (A).

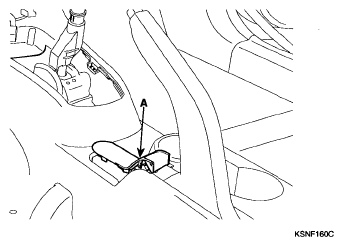

Fig 2: Locating Parking Brake Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the console side cover (A).

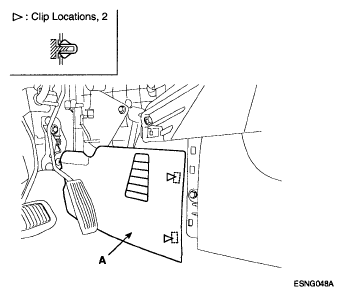

Fig 3: Locating Console Side Cover
Courtesy of HYUNDAI MOTOR CO.

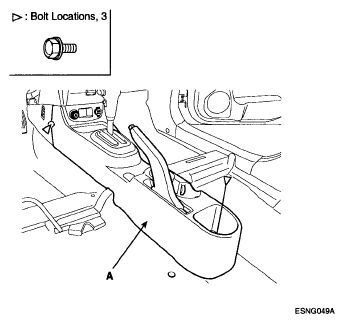

Loosening the console mounting screw and clip, remove the console assembly (A).

Fig 4: Locating Console Assembly
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
